ABB AV2 - Direct Acting, Bottom Loaded, Single Acting Tubing Example; Reverse Acting, Bottom Loaded, Single Acting Tubing Example

QUICK START
TUBING CONNECTIONS
B - 7

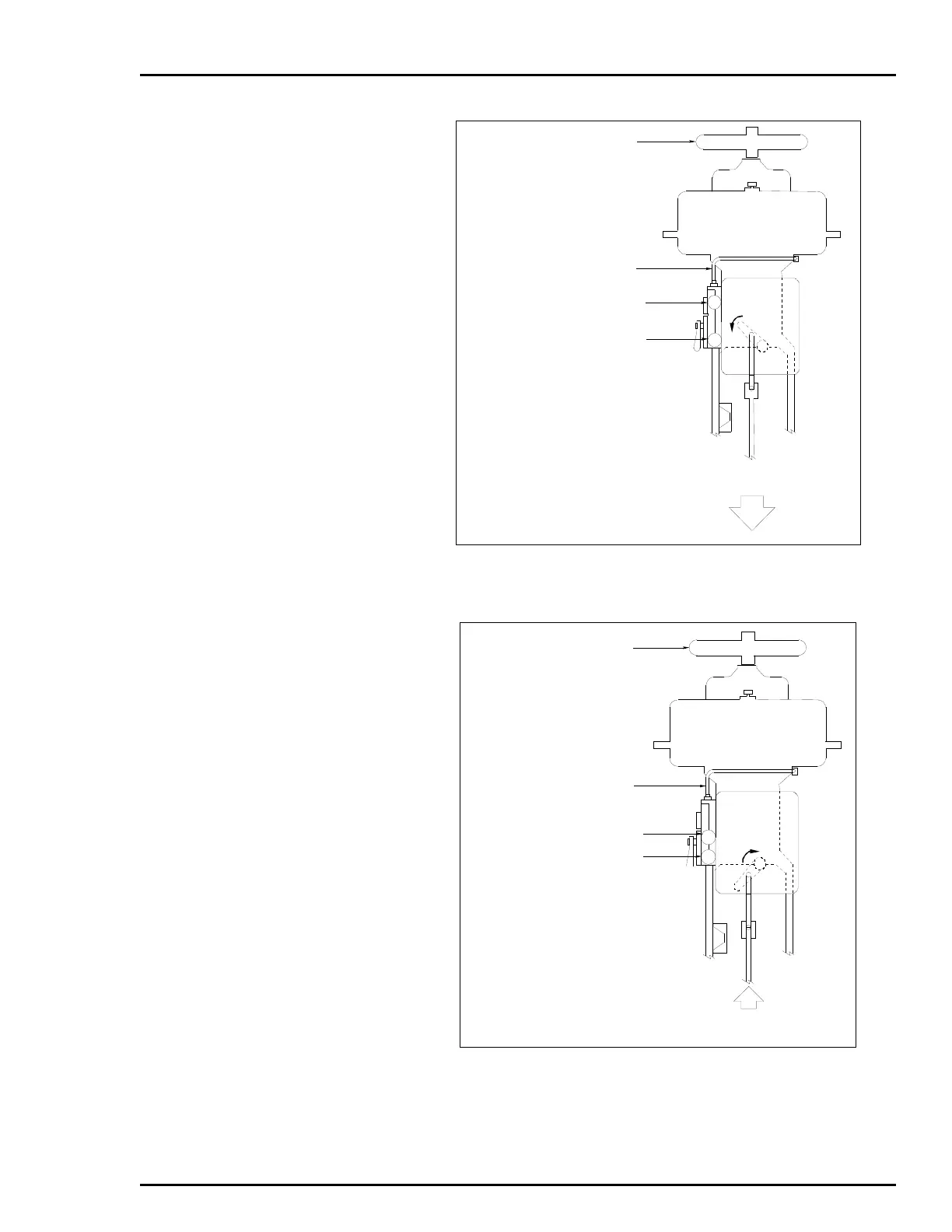

Figure B-8. Direct Acting, Bottom Loaded,
Single Acting Tubing Example
Figure B-9. Reverse Acting, Bottom Loaded,
Single Acting Tubing Example
G3
G1
MOTION WITH
INCREASING SIGNAL
HANDJACK
O2
OUTPUT GAGE (O2 PORT)
SIGNAL GAGE
T00893A
NOTES:
1. BLACK CAM ROTATES COUNTERCLOCKWISE
WHEN VIEWED FROM THE FRONT.
2. O2 PORT PLUGGED.
3. STEM MOVES UP WITH SIGNAL FAILURE.
4. STEM MOVES DOWN WITH SUPPLY AIR
FAILURE.
G2
G1
HANDJACK
O1
OUTPUT GAGE (O1 PORT)
SIGNAL GAGE
T00891A
MOTION WITH
INCREASING SIGNAL
NOTES:
1. RED CAM ROTATES CLOCKWISE WHEN
VIEWED FROM THE FRONT.
2. O2 PORT PLUGGED.
3. STEM MOVES DOWN WITH SIGNAL OR
SUPPLY AIR FAILURE.
