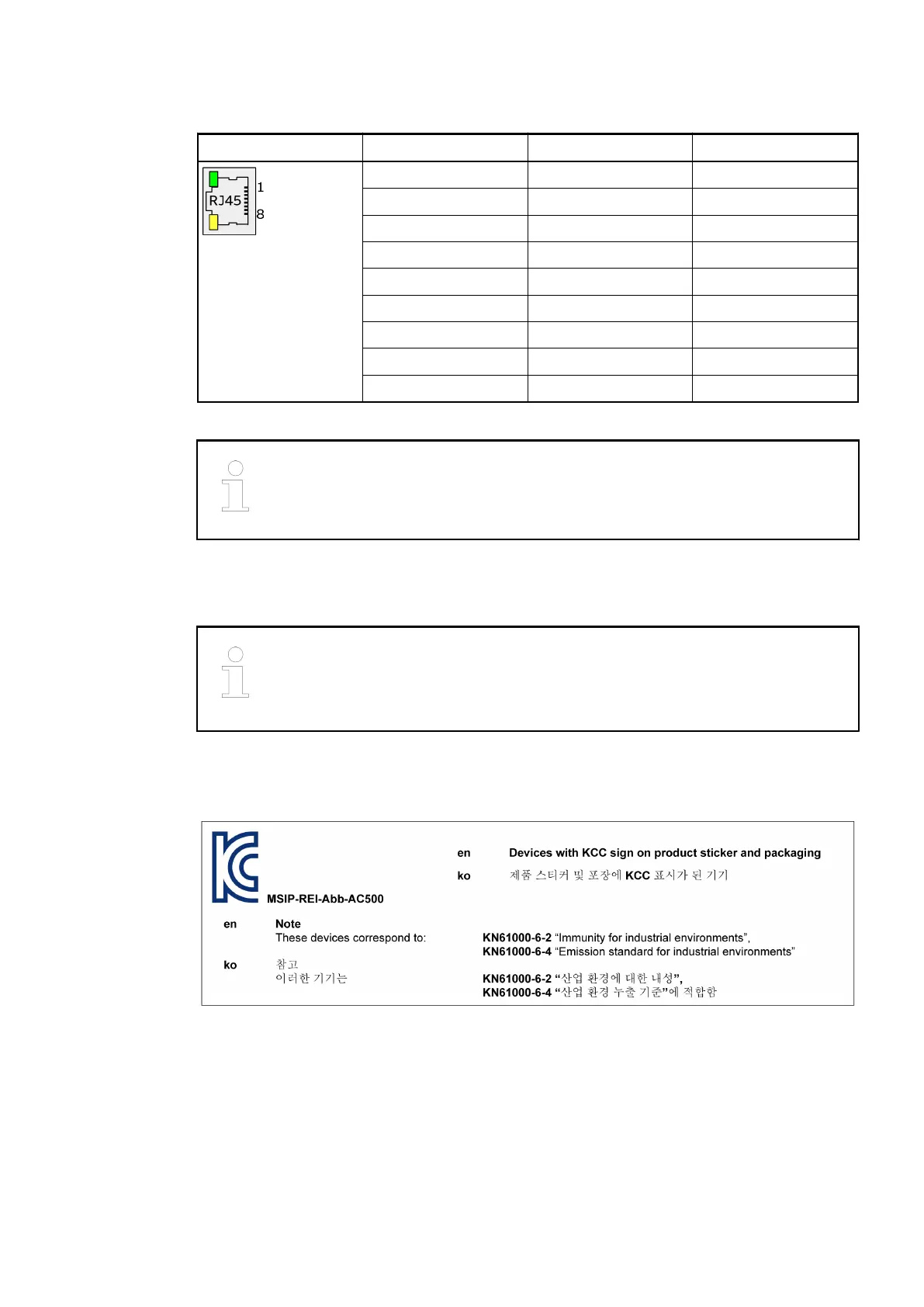

14.4.1 Ethernet Network Interface
Pin Signal Description
1 TxD+ Transmit data +
2 TxD- Transmit data -
3 RxD+ Receive data +
4 NC Not used
5 NC Not used
6 RxD- Receive data -
7 NC Not used
8 NC Not used
Shield Cable shield Functional earth
In corrosive environment, please protect unused connectors using the TA535
accessory.
Not supplied with this device.
14.5 Cleaning
Cleaning instruction
Do not use cleaning agent for cleaning the device.
Use a damp cloth instead.
14.6 Certification
Pin Assignment
2019/11/153ADR024117M02xx, 11, en_US116
