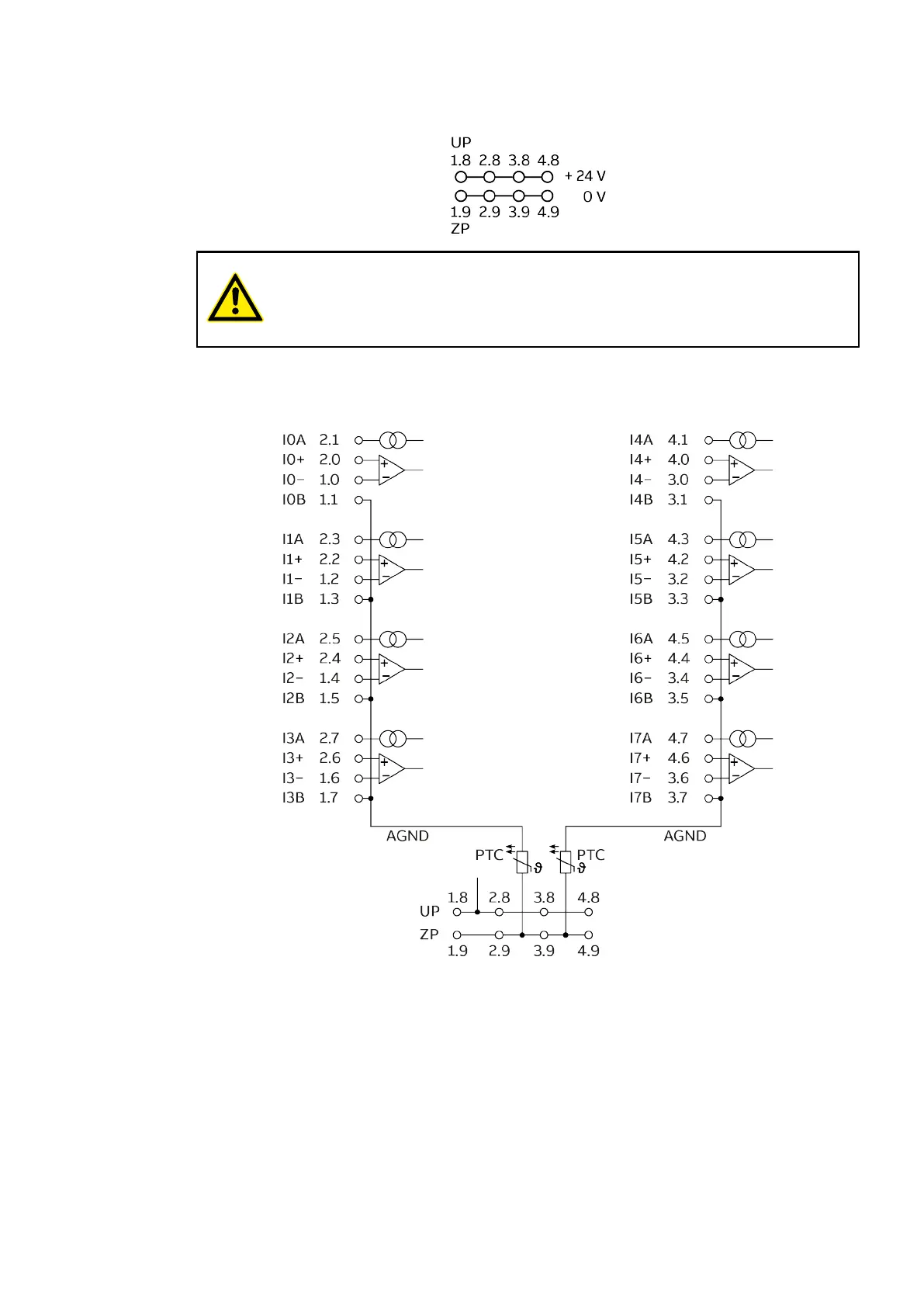

3.4.1 Process Supply Voltage

CAUTION!

The process supply voltage must be included in the earthing concept (e. g.

earthing of the minus pole).

3.4.2 Inputs

AI531

Connection > Inputs

2019/11/15 3ADR024117M02xx, 11, en_US 29
