6
Machine description
The exact type designation and the most im-
portant technical data are shown on the rating
plate located on the terminal box.
Technical data
on rating plate

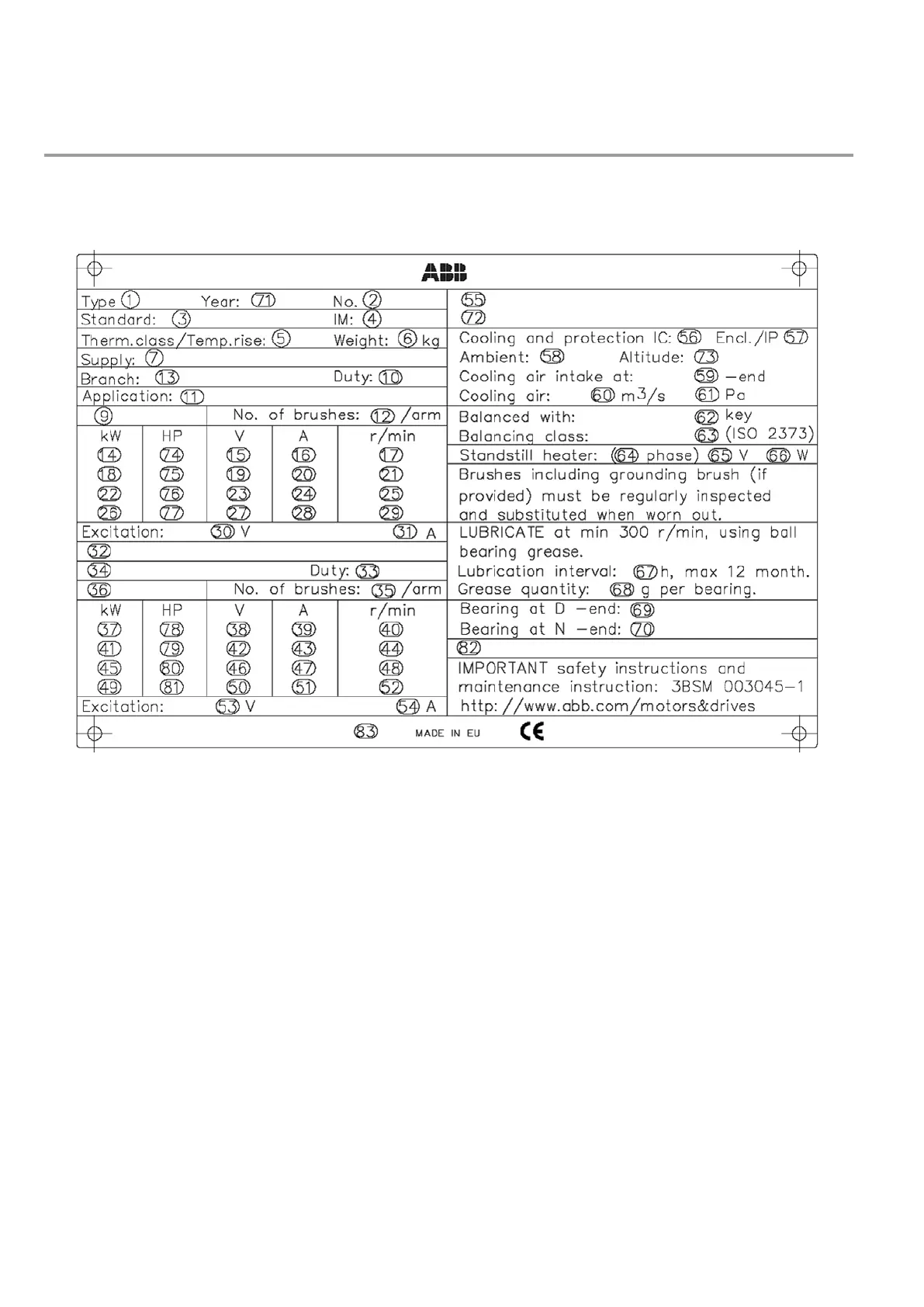

Figure 1. Rating plate for DMI machine.
