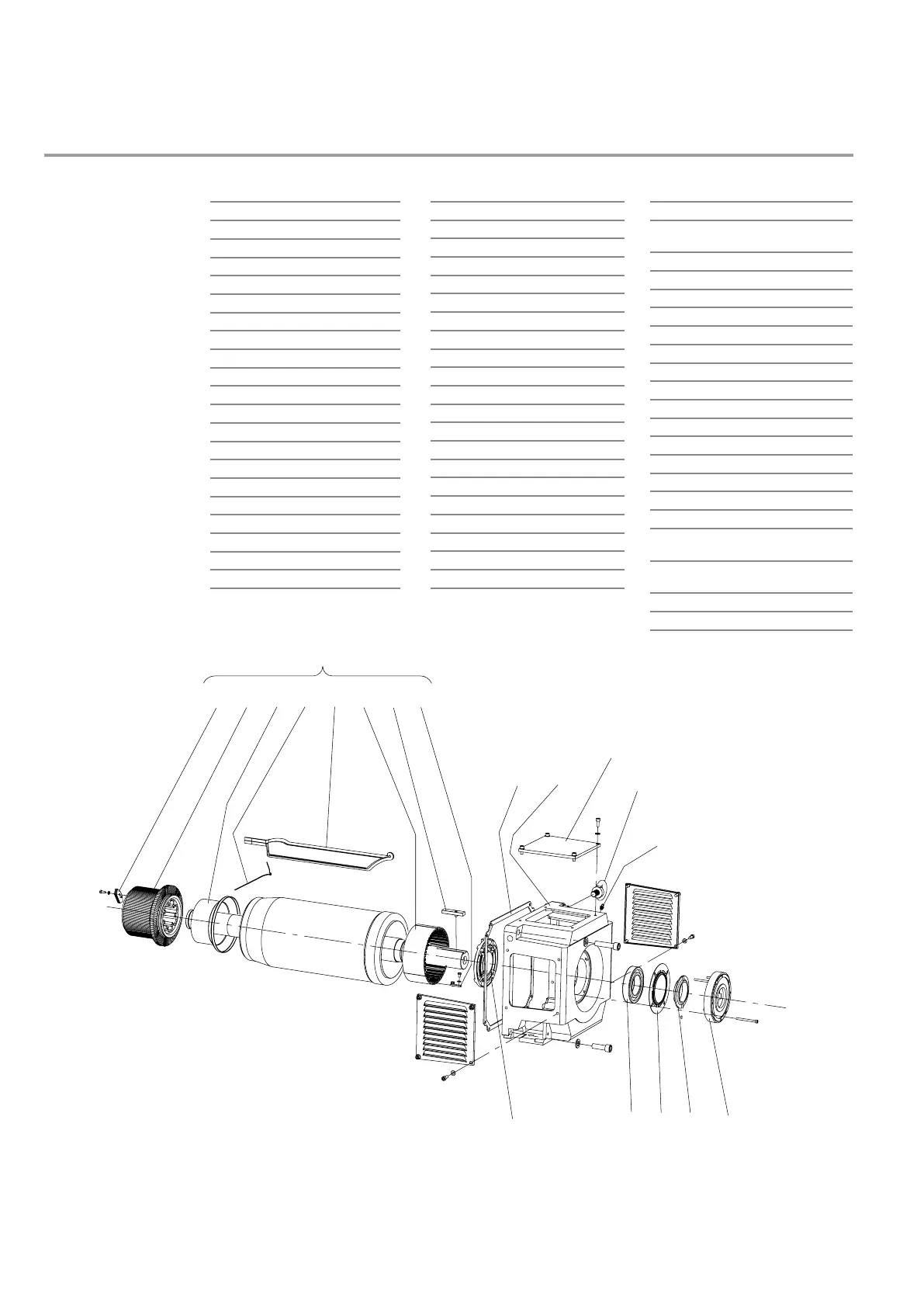

Machine description
Description of
parts
Part
No. Description
1 Outer bearing cover, N-end
2 Retaining ring, N-end
3 Grease-sling disc, N-end
4 Grease retaining ring, N-end
5 Bearing, N-end
6 Inner bearing cover, N-end
7 Grease nipple, N-end
8 Outer bearing cover, D-end
9 Grease-sling disc, D-end
10 Grease retaining ring, D-end
11 Bearing, D-end
12 Inner bearing cover, D-end
13 Grease nipple, D-end
14 Bearing end shield, N-end
15 Gasket
16 Lifting lug
17 Bearing end shield, D-end
18 Brush gear, complete
19 Brush rocker
20 Holder for brush rocker
21 Brush-holder arm
Part
No. Description
43 Counterweight, D-end
44 Inspection cover, complete with
gasket (state position and type)
45 Terminal box, complete
46 Gasket
47 Box bottom plate
48 Mounting rail
49 Terminal block
50 Terminal block
51 Earthing bar
52 Gasket
53 Box frame
54 Bar holder
55 Connection bar
56 Box cover
57 Gasket
58 Gasket
59 Connection cover
60 Bracket for brush gear
positioning device
61 Screw for push gear
positioning device
62* Earthing bar (on 315 & 400)
63* Spacer/O-ring (on 315 & 400)
Part
No. Description
22 Pressure finger spring
23 Pressure finger
24 Brush
25 Stator, complete
26 Stator frame
27 Main field coil
28 Main field coil insulation
29 Interpole field coil
30 Interpole field coil insulation
31 Coil support
32 Compensating winding
33 Slot insulation
34 Slot key
35 Armature, complete
36 Counter weight, N-end
37 Commutator
38 Armature coil support, N-end
39 Equalizing winding
40 Armature coil
41 Armature coil support, D-end
42 Shaft-end key
8
910
11
12
36
37
38 39 40
41
42
43
15
13
17
41
35
16
