User manual DWTL1

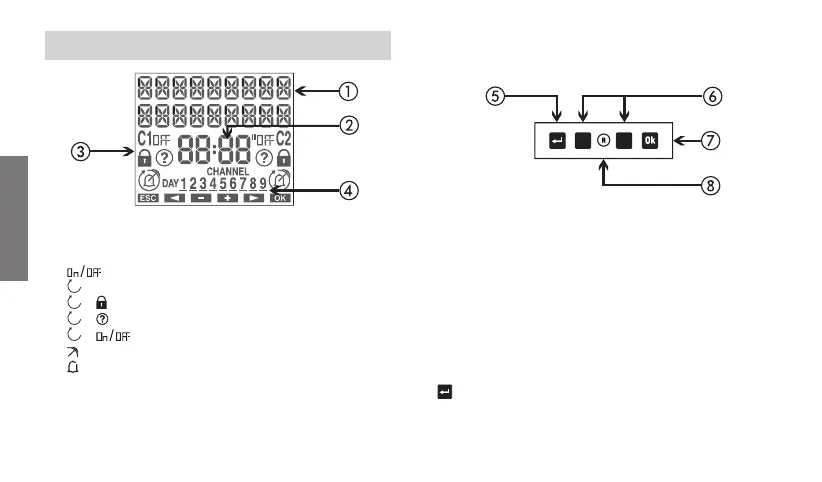

DISPLAY AND KEYBOARD DESCRIPTION
 General indications
 Time indication
 Channel 1
: active manual program
+ : blocked switchings
+ : active random switchings
+ (flashing) : active cycle switchings
: active holiday program
: active pulse program
 Day of the week (DAY) indication
 Turn on the display
Access the menu
ESC (one level back)
 “C1”: decrease datum/previous menu/ switching channel 1/
lock channel 1
“C2”: increase datum/next menu
 Confirm selection
 Hardware reset
“Ok” + “C1” (3 sec): active random switching on channel 1
“
” + “C1” (3 sec): active cycle switching on channel 1
C2
C1
