L2234
Emax
116/158
Model
Scale
Page No.
Doc. No.
Apparatus
1SDH000460R0002
L2778
15.1.5.2 Table of submenus for the PR120/V module
This menu is accessible using the path "Settings/Modules/ PR120/V module"
15.1.5.3 Measurements Menu table
For the sake of simplicity, the table refers to the Measurements menu already provided in the PR123/P, which is also applicable for the
PR122/P fitted with a PR120/V module.
Parameter / Function Values Notes
Historicals Trips List of trips
Events Events log
Measurements
Maximum current
Maximum active power
Mean active power
Maximum voltage
Minimum voltage
Reset measurements
Mean power
Power measured cos ϕ
factor available in self-supply mode
Energy Energy meters
Reset meters
Continues from previous page
Voltage 12 = 416 V
2/2

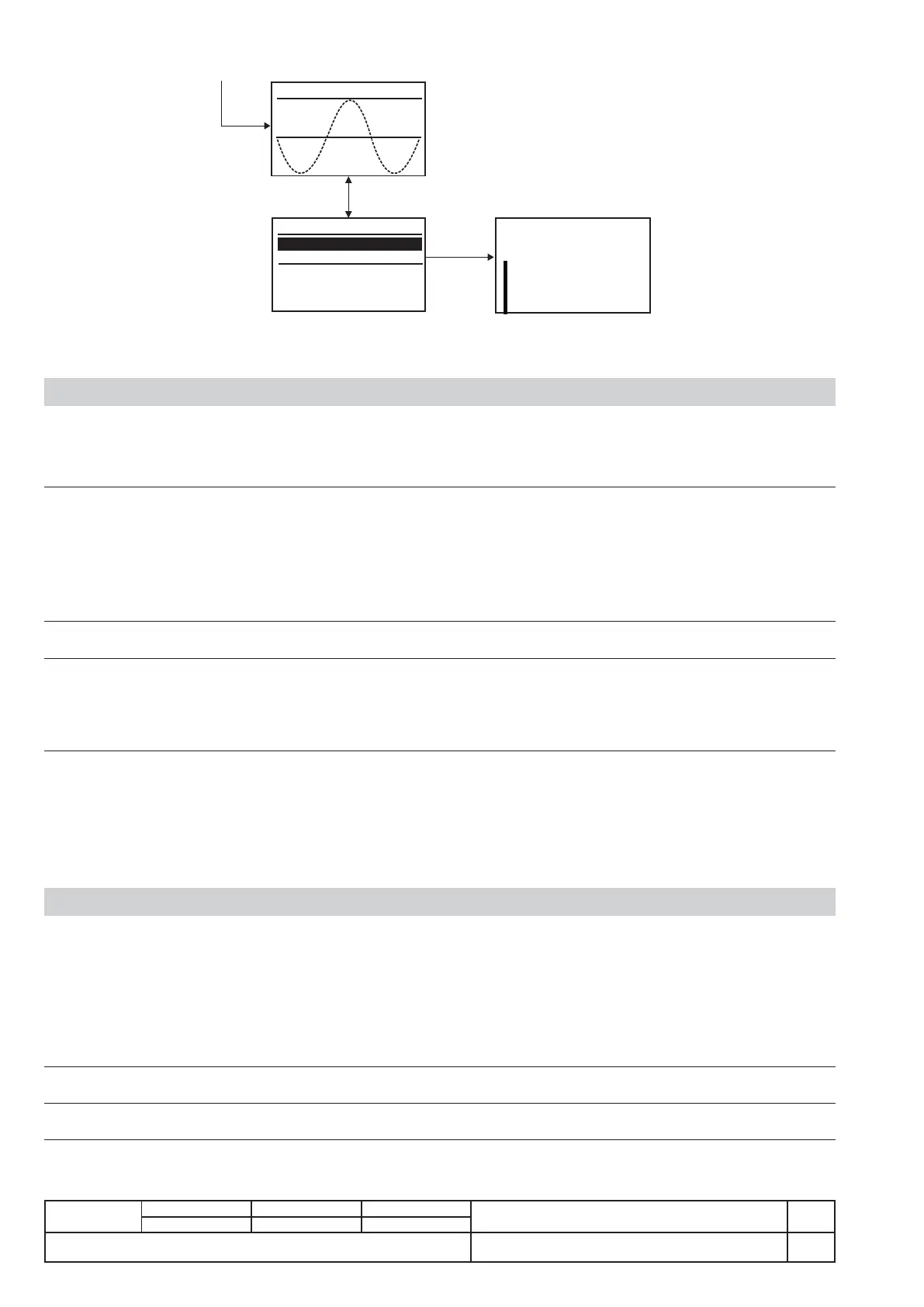

Harmonics
Harmonics
Measurements
Total distorsion :
0.0 %
Harmonic n. 1/40 : 100.0 %
U12
Refresh
(1) Valid for PR123 only
(1) Valid for PR123 only
Parameter / Function Values Notes
Rated Voltage 100 V-115 V-120 V-190 V Voltage transformer set to “Absent”
208 V-220 V-230 V-240 V For voltages below 690V
277 V-347 V-380 V-400 V
415 V-440 V-480 V-500 V
550 V-600 V-660 V-690 V
Primary Voltage 100 V-115 V-120 V-190 V Voltage transformer set to “Present”
208 V-220 V-230 V-240 V For voltages above 690V, see par. 15.1.7
277 V-347 V-380 V-400 V
415 V-440 V-480 V-500 V
550 V-600 V-660 V-690 V
910 V-950 V-1000 V-1150 V
Secondary voltage 100 V-110 V-115 V-120 V
200 V-230 V
Power Bottom → Top PR120/V connected to the bottom CB terminals
flow Top → Bottom PR120/V connected to the top CB terminals
Signals
(1)
Phase sequence
Enabling status ON/OFF
Threshold 123/321 can be set when Enabling is set to ON
Cos ϕ
Enabling status ON/OFF can be set when Enabling is set to ON
Threshold from 0.5 to 0.95 step 0.01
To Next Page
