L2234
Emax
141/158
Doc. No.
Model
1SDH000460R0002
Apparatus
Scale
Page No.
L2778
E1 E2/E3/E4/E6
E1
414 324 162 162 10 – –
E2
414 324 162 162 8 – –
E3
558 432 216 216 8 370 490
E4
684 594 252 342 8 530 610
E4/f
774 - - 342 8 – 700
E6/f
1062 - - 468 8 - 1000
E6
936 810 342 468 8 750 870

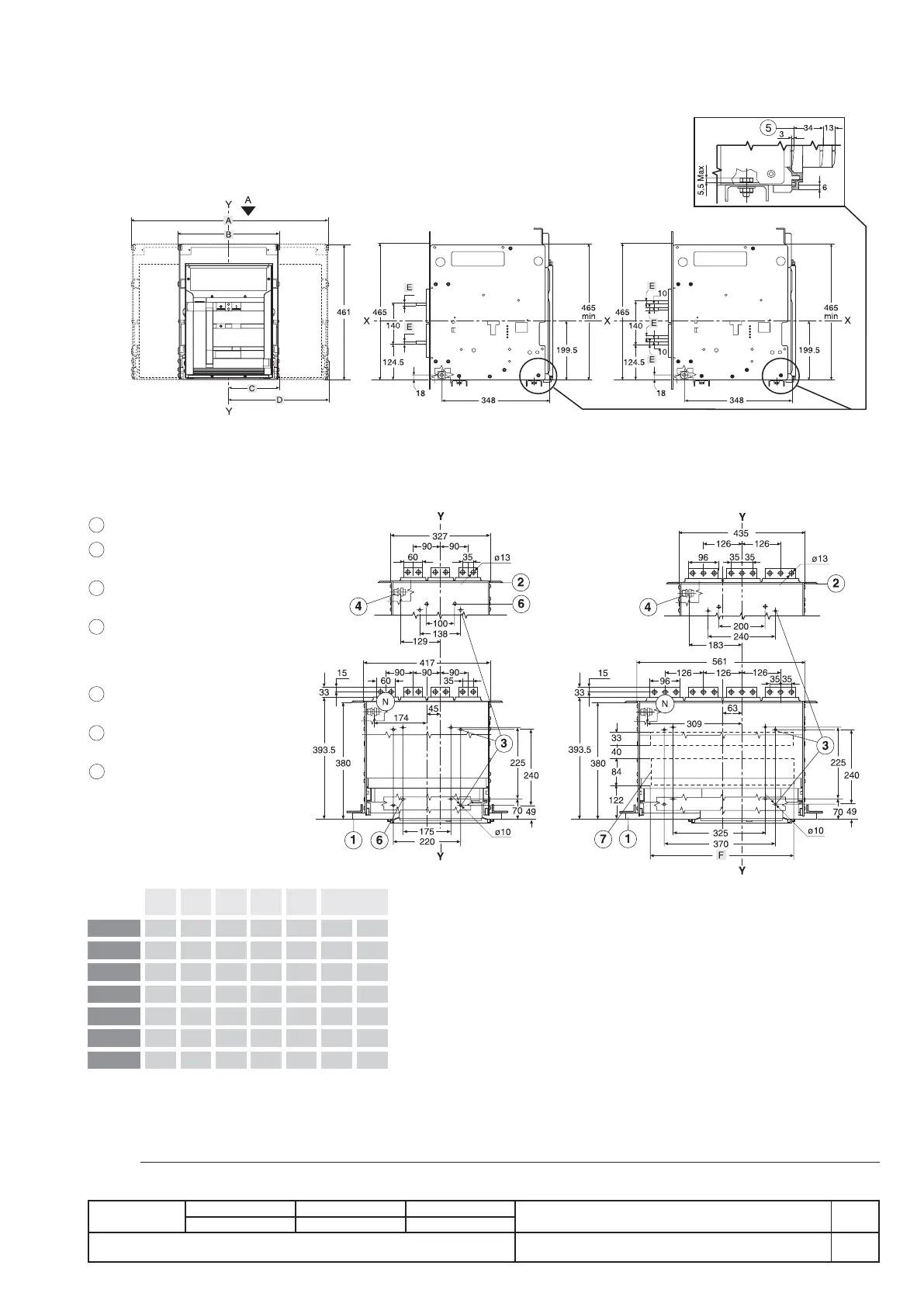

Withdrawable circuit-breaker
Basic version with horizontal rear terminals
Legend
1 Inside edge of compartment door
2 Segregation (where foreseen)
3 Fixing fixed part Ø 10 drilling (use
M8 screws)
4 N° 1 M12 screw (E1, E2, E3) or n°
2 M12 screws (E4, E6) for
earthing (included in the supply)
5 Run from connected for a TEST to
isolated
6 Alternative drilling with 25mm pitch
for fixing fixed part
7 Ventilation drilling on the
switchgear
E1/E2
View A
E3
View A
3 POLES
3 POLES
4 POLES
4 POLES
4 POLES
3 POLES
4 POLES
3 POLES
ABCDE F
3 poles4 poles
Fig. 40
