ABB EasyLine EL3000 Series User Manual

Installing the Gas Analyzer 61

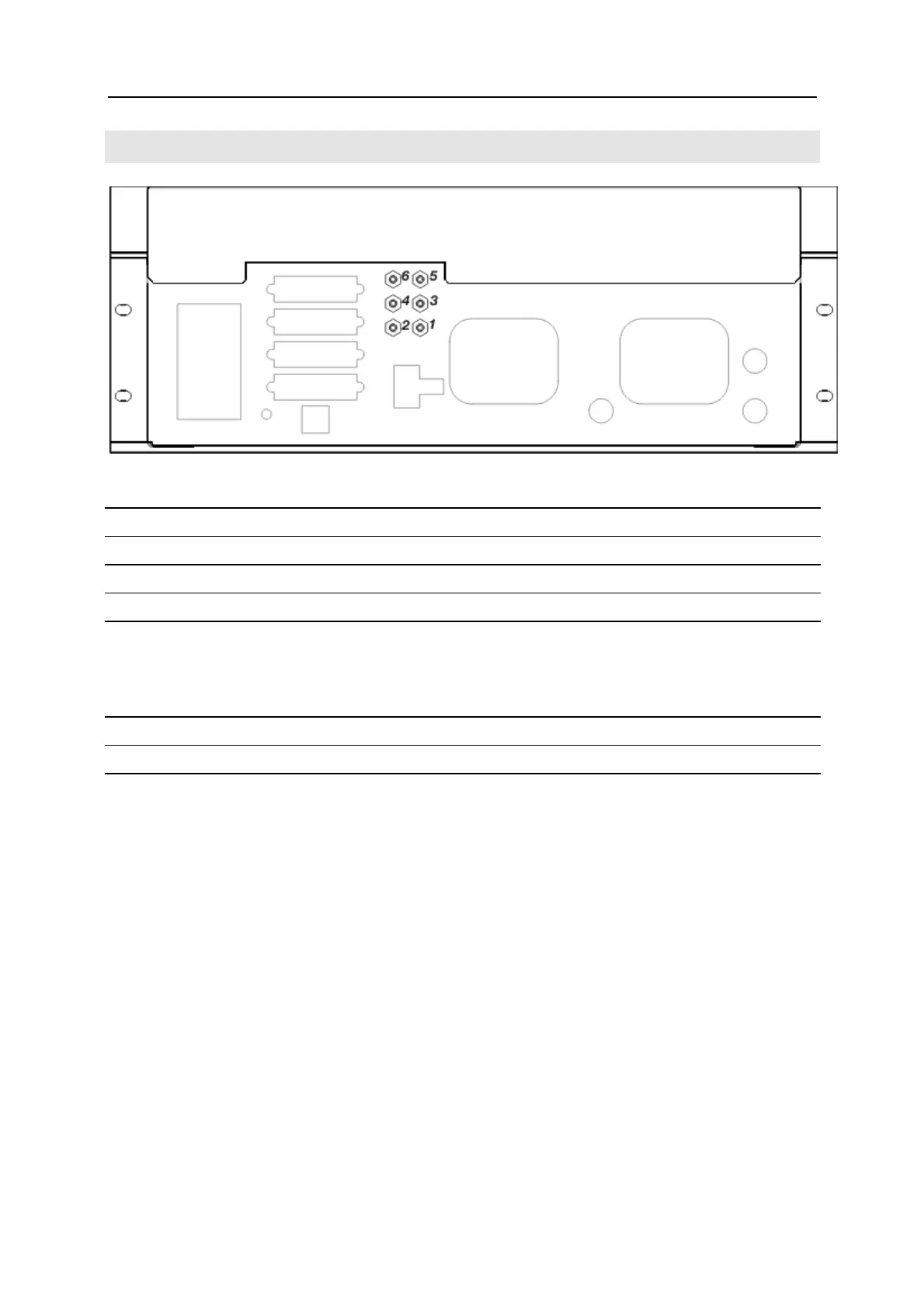

Gas Connections for Magnos27 with Uras26 (Model EL3020)
Magnos27: Gas Connections
3
Sample gas inlet
4
Sample gas outlet
5
Purge gas inlet analyzer
6
Purge gas outlet analyzer
Design: Screwed fittings with hose nozzles (stainless steel 1.4305/SAE 303) for hoses
with 4 mm inner diameter (supplied)
Uras26: Gas Connections
1
Sample gas inlet
2
Sample gas outlet
Design: Screwed fittings with hose nozzles (stainless steel 1.4305/SAE 303) for hoses
with 4 mm inner diameter (supplied)
