Installing the Gas Analyzer 75

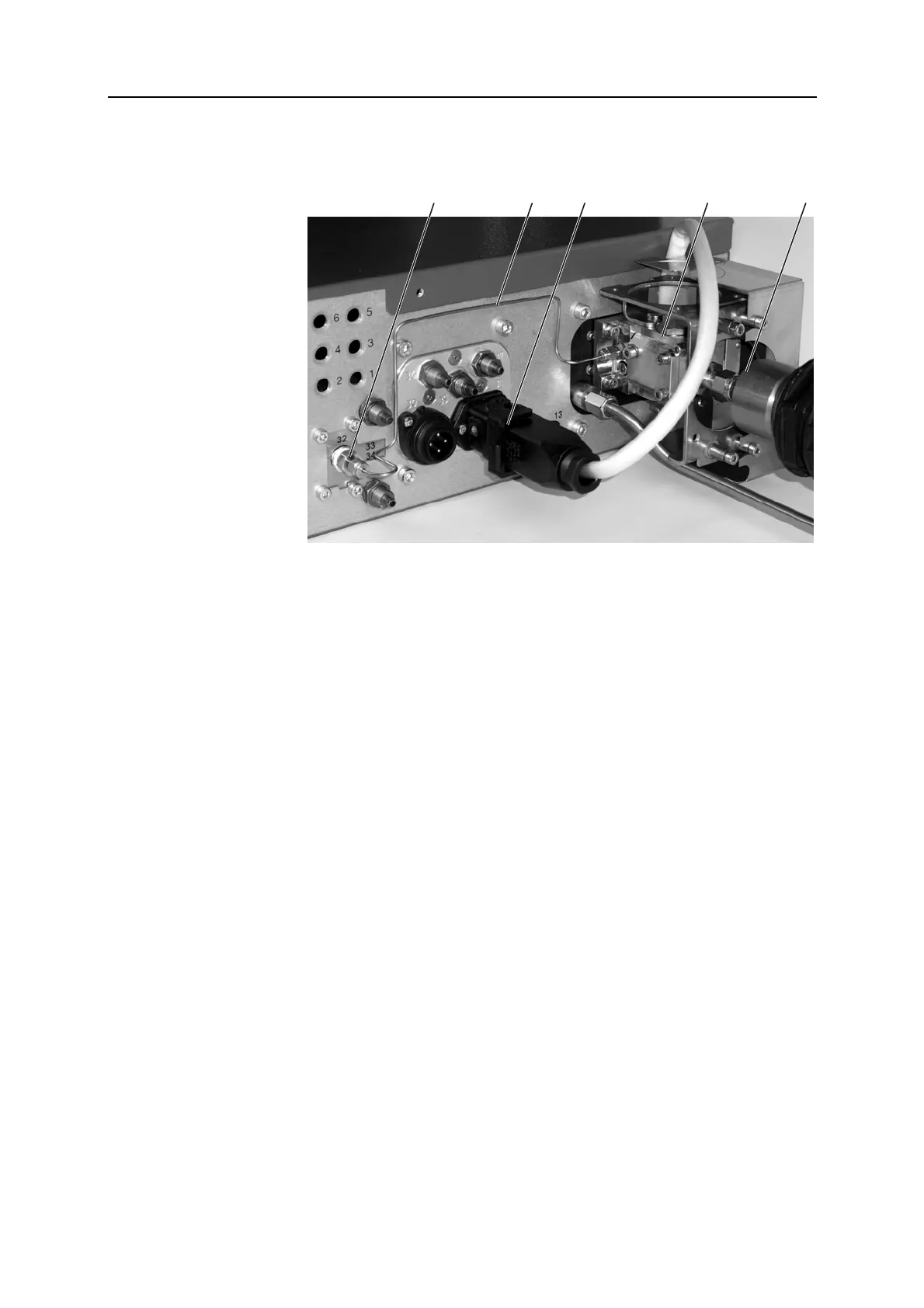

Heated sample gas connection
1
2
3
4
5
1
Test gas outlet
2
Connection of test gas outlet - sample gas connection
3
Electrical connection to the heated sample gas connection
4
Heated sample gas connection
5
Heated sample gas line (example)
Note: One half of the cover of the heated sample gas connection has
been removed in the picture.
