82 EasyLine EL3000 Series Commissioning Instructions
Electrical Connections Model EL3040

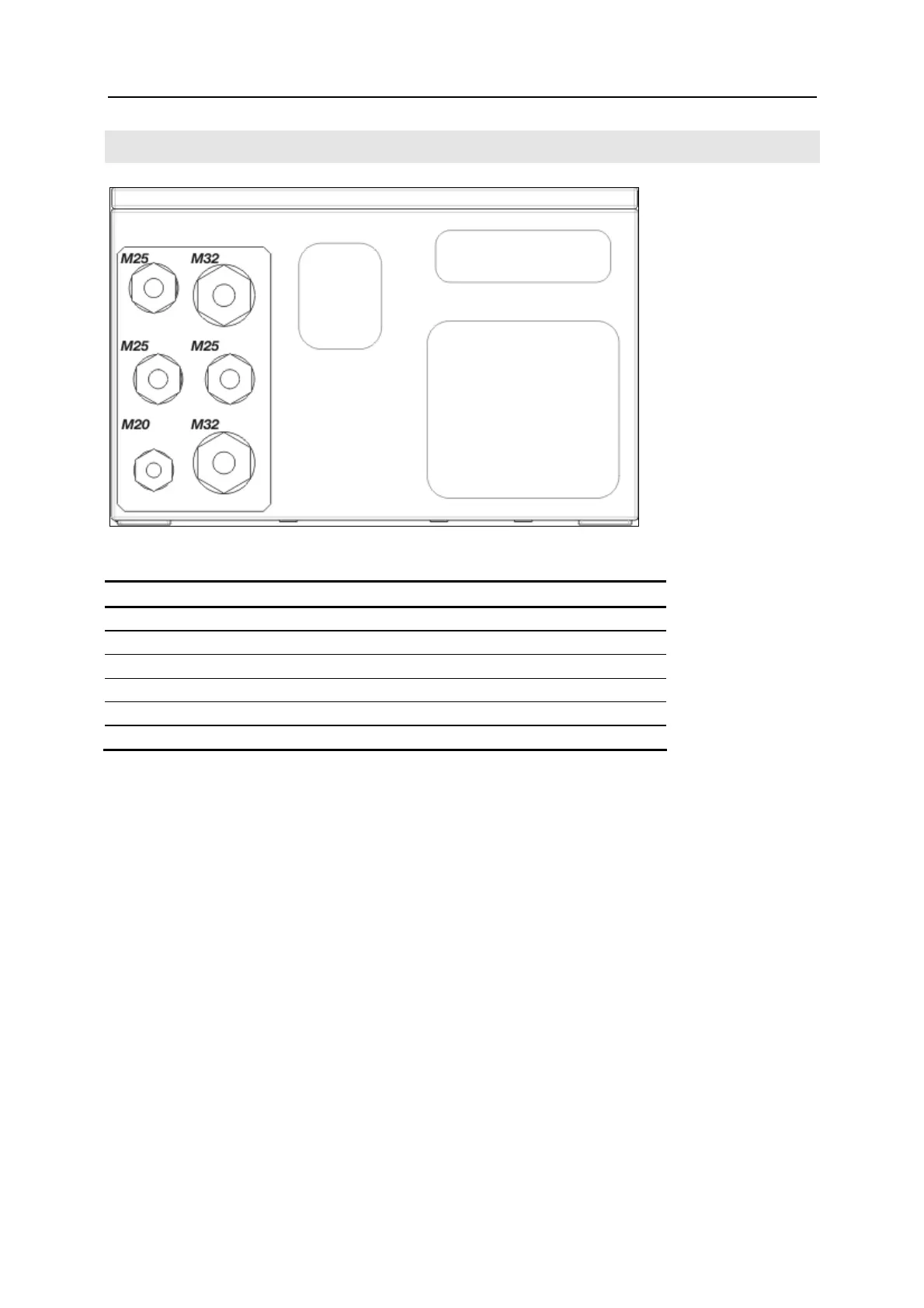

Screwed Cable Glands
Type Use (Recommendation) Permissible cable diameter
M20
Power supply 5–13 mm
M25
Modbus/Profibus 8–17 mm (insert 5x 4 mm)
M25
Network connections 8–17 mm
M25
3x analog outputs 8–17 mm (insert 3x 7 mm)
M32
Digital inputs/outputs 12–21 mm
M32
Digital inputs/outputs 12–21 mm
