ESP630 Product Manual
1KHW002104 / Ed01a page 8 of 29 ABB
1.2.1 System Status LEDs
The System Status LEDs on the front panel can be used to monitor system activity. Following Figure
shows where the LEDs are located and the table below indicates the system status according to each LEDs
condition.

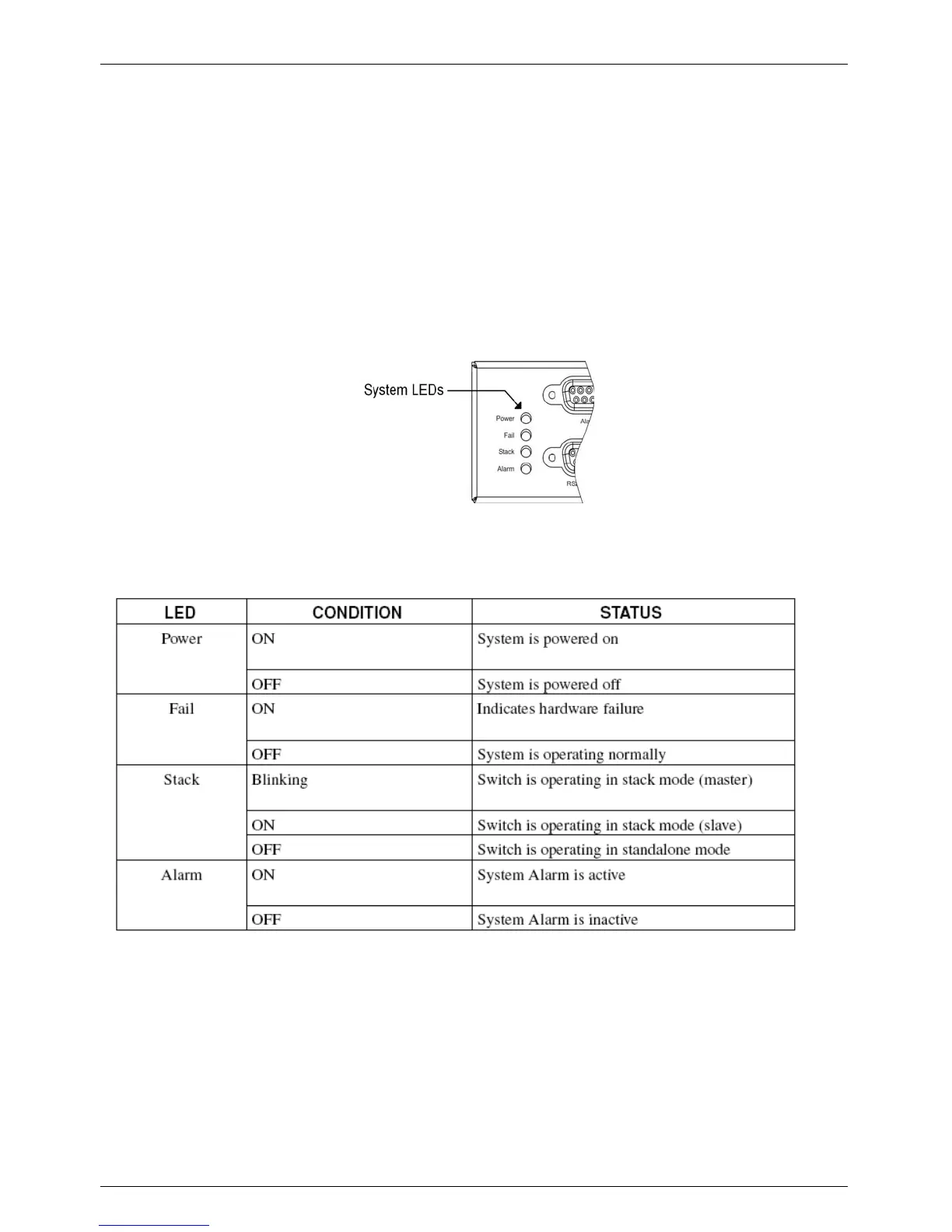

Fig. 1-5. Systems LEDS Location
Table 1-1. System LEDS
1.2.2 Port LEDs
Port LEDs indicate data activity and speed on each port. Their location is shown on next Figure and
their status on the table below.
