2. Before installation
2.7 First time administration of the sensors
1. Record the following details in the PC-program as specified in the
EXCOUNT-II help system for Administration. See figure 2.7.1 and
2.7.2.
• station data
• arrester data
• EXCOUNT-II sensor data
Input this data into the software as described in the help system.
Note that each record in the database must have a unique combination
of station, position and phase, see figure 2.7.2.
All current generation ABB and earlier ASEA gapless ZnO surge
arrester types are included in the arrester data.
For other types of gapless surge arresters, simply select the appro-
priate IEC class from the dropdown list, see figure 2.7.2.
IMPORTANT! After input of the administration details, an
initial reading must always be made to establish a link bet-
ween the administration details in the PC software and the
sensor on site.

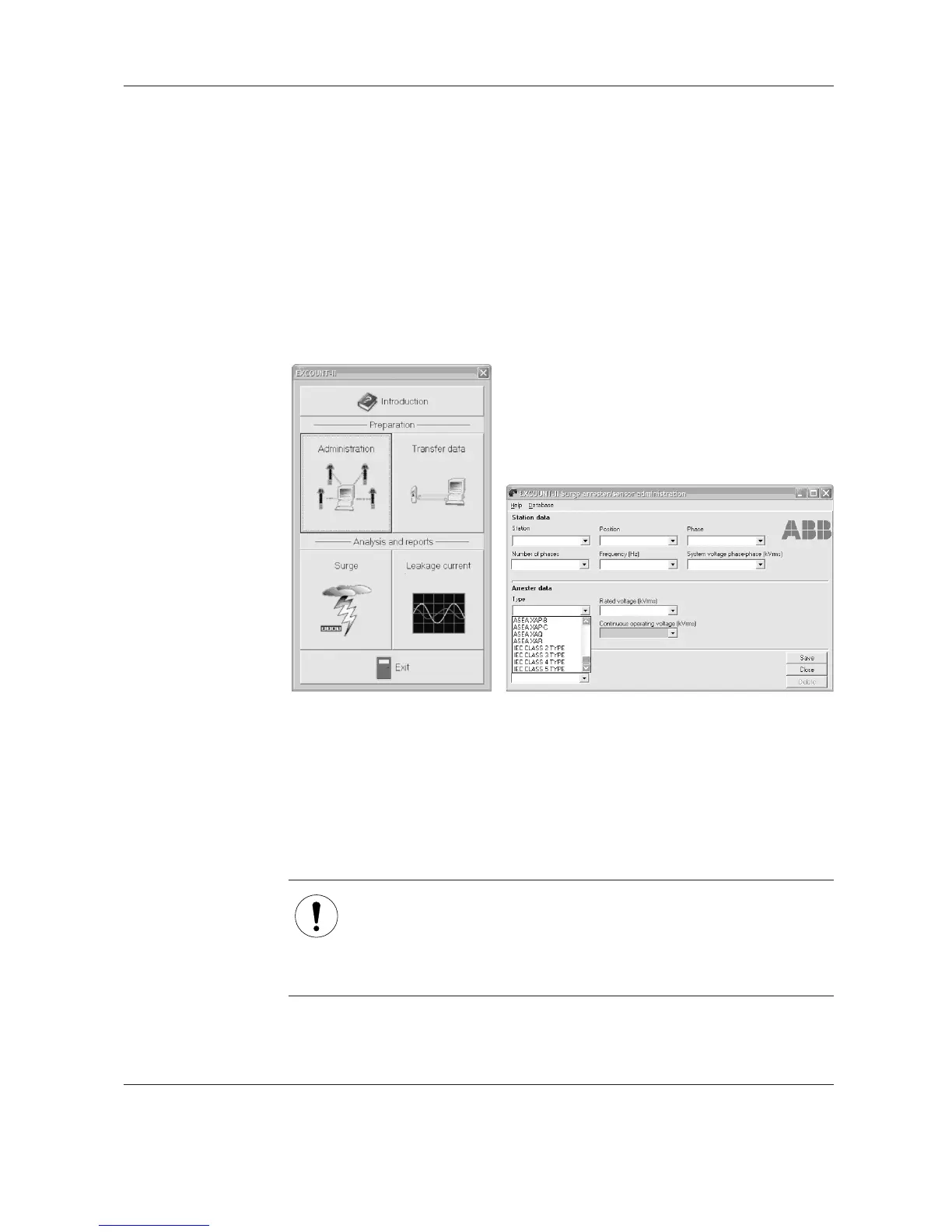

Figure 2.7.1
Main menu
Figure 2.7.2
Administration data
