LED status indicator of R- type
No. Indication HFxx-ROLE-24 V DC
1 U
s
Input Control supply voltage
2 R: Right
L: Left
Control input for direct and reversed start
3 PWR LED PWR LED (green)
4 L LED L-LED (yellow), Left rotation
5 R LED R-LED(yellow), Right rotation
6 2/T1, 4/T2, 6/T3 Main circuit output to motor or resistive
load
7 1/L1, 3/L2, 5/L3 Main circuit input
8 Metal latch Metal latch for fixation on DIN rail
—

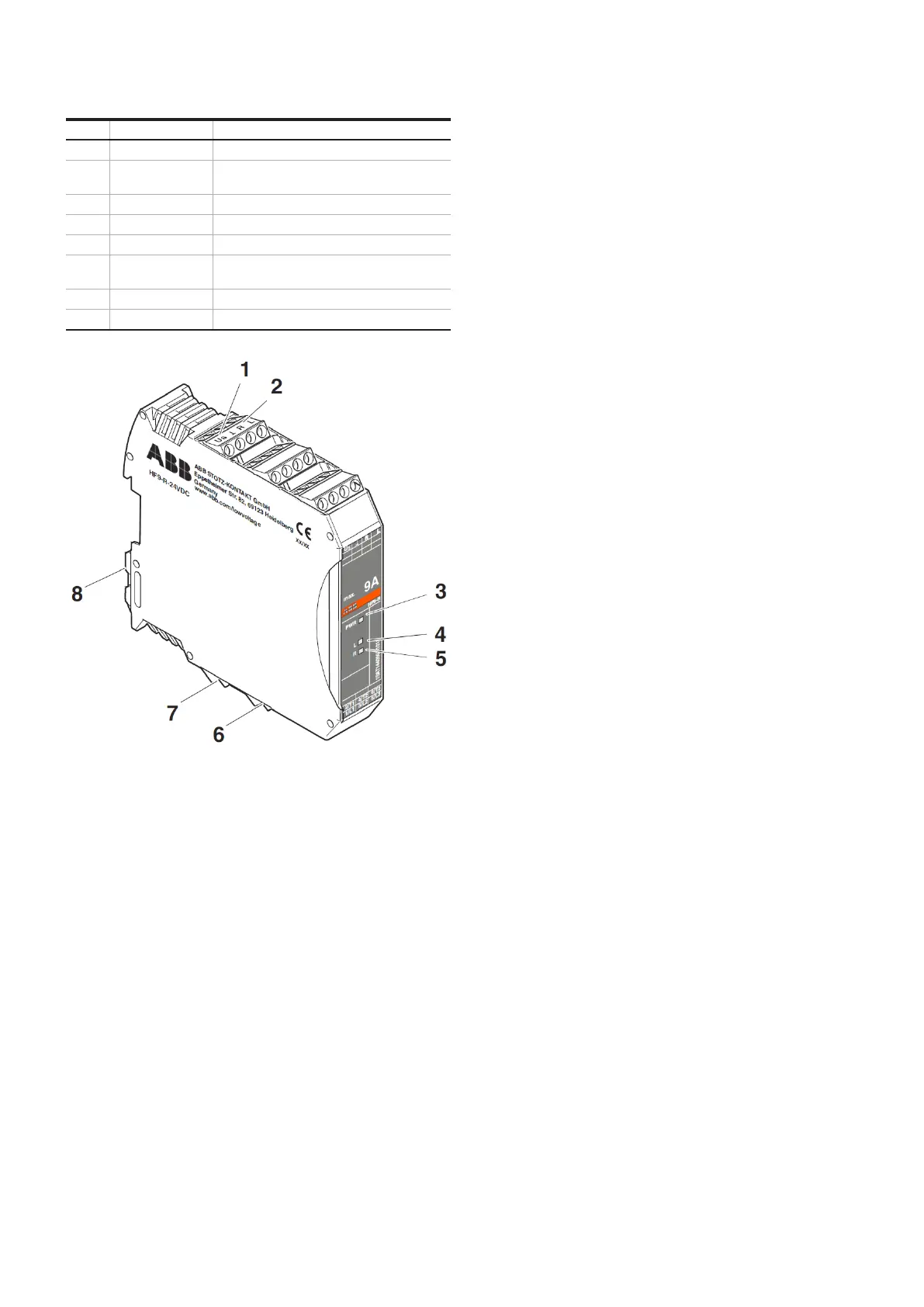

07 HMI of R- type
Additional explanation
No. 1: The input terminal for the control supply voltage is 24 V DC. Its reference potential is the terminal immediately next to
it, labeled with '⊥'.
No. 2: The control input terminal 'R' is for forward running (right rotation); 'L' is for reverse running (left rotation) of the
motor.
No. 6: The output voltage terminal has to be connected with the motor.
No. 7: The input voltage terminal has to be connected with the 3-phase supply network. Please also establish device and wire
protection.
13 ELECTRONIC COMPACT STARTER | MANUAL
