ABB HF Series User Manual

47 ELECTRONIC COMPACT STARTER | MANUAL
—
8.3 Wiring safety variants - DOLE
—

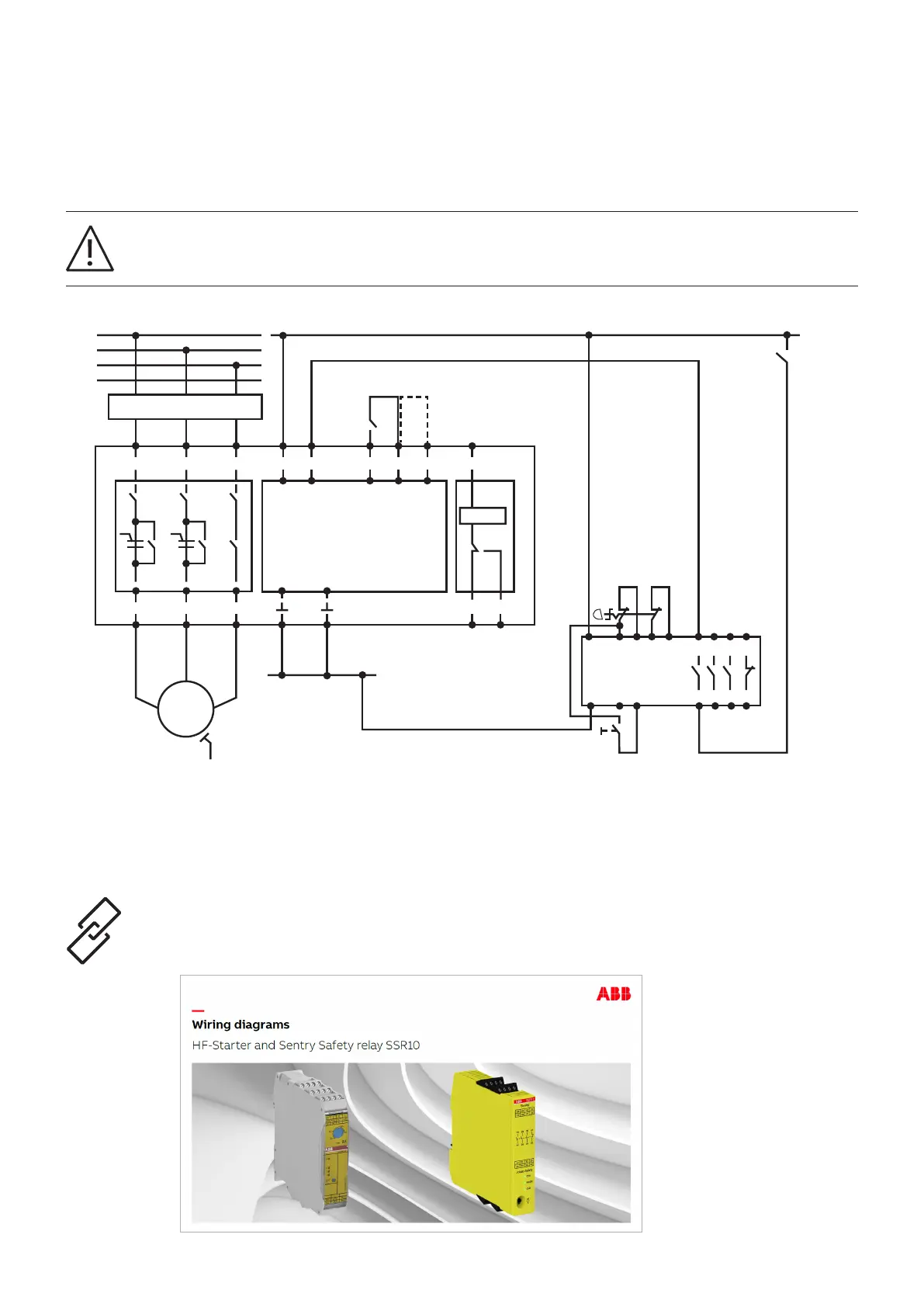

8.3.1 Disconnecting control input voltage (ON) to safety relay
The safety relay and the electronic compact starter can be connected to the same supply voltage.
It is not necessary to connect to two different supplies.
—
31 SSR single channel connection to ON
To learn more about the different wiring types please follow this link.
µController
M
3 ~
ON MAN RES AUT96
Signal
95 97
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
Device and wire protection
U
S
U1
V1
PE
W1
14 24 34 42A2 X4 X1
Sentry SSR10
S3
A1 T1 R1 T2 R2 13 23 33 41
E
∆∇ ∆∇
S2
S2
+ 24 V DC
L1
L2
L3
N
0 V DC
