38 ELECTRONIC COMPACT STARTER | MANUAL
—
6.4 Reset terminals
You can choose between threeways to reset the device:
• Manual reset (via Reset/Set button)
• Remote reset (via remote acknowledgement point)
• Automatic reset (bridge connection)
‘RES’ terminal provides the voltage for the reset. (24 V DC)
Detailed information for pilot devices is provided at: http://new.abb.com/low-voltage/products/pilot-devices.
It is suggested to use e.g. the ABB push-buttons MP1-10x, MCBH-00, MCB-10
—

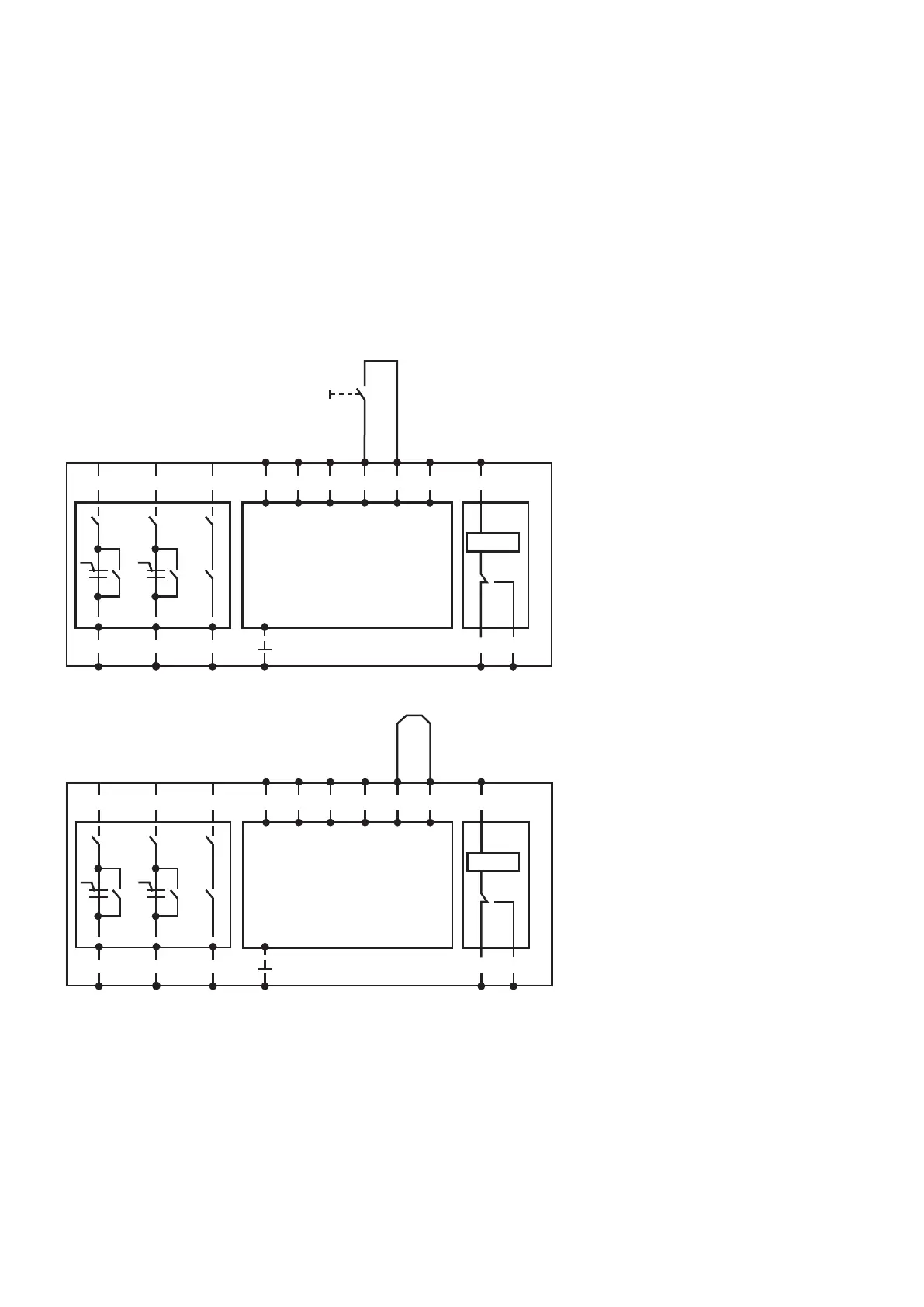

23 Wiring the manual reset with a push button
—
24 Wiring the automatic reset
—
6.5 Signaling relay terminals
An auxiliary relay for activating external brakes or acknowledgements, such as to the PLC, must be connected to the
system’s 4T2 and N connections.
µController
R MAN RES AUT 96
Signal
95 97
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
U
S
∆∇ ∆∇
L
µController
R MAN RES AUT 96
Signal
95 97
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
U
S
∆∇ ∆∇
L
