34 ELECTRONIC COMPACT STARTER | MANUAL

—

5.2 Derating

All HF range types may be installed in rows. Please find below the derating curve for each type in order to load current,

ambient temperature and spacing.

Derating curve for R-, DOL–, ROL-, DOLE and ROLE- types:

—

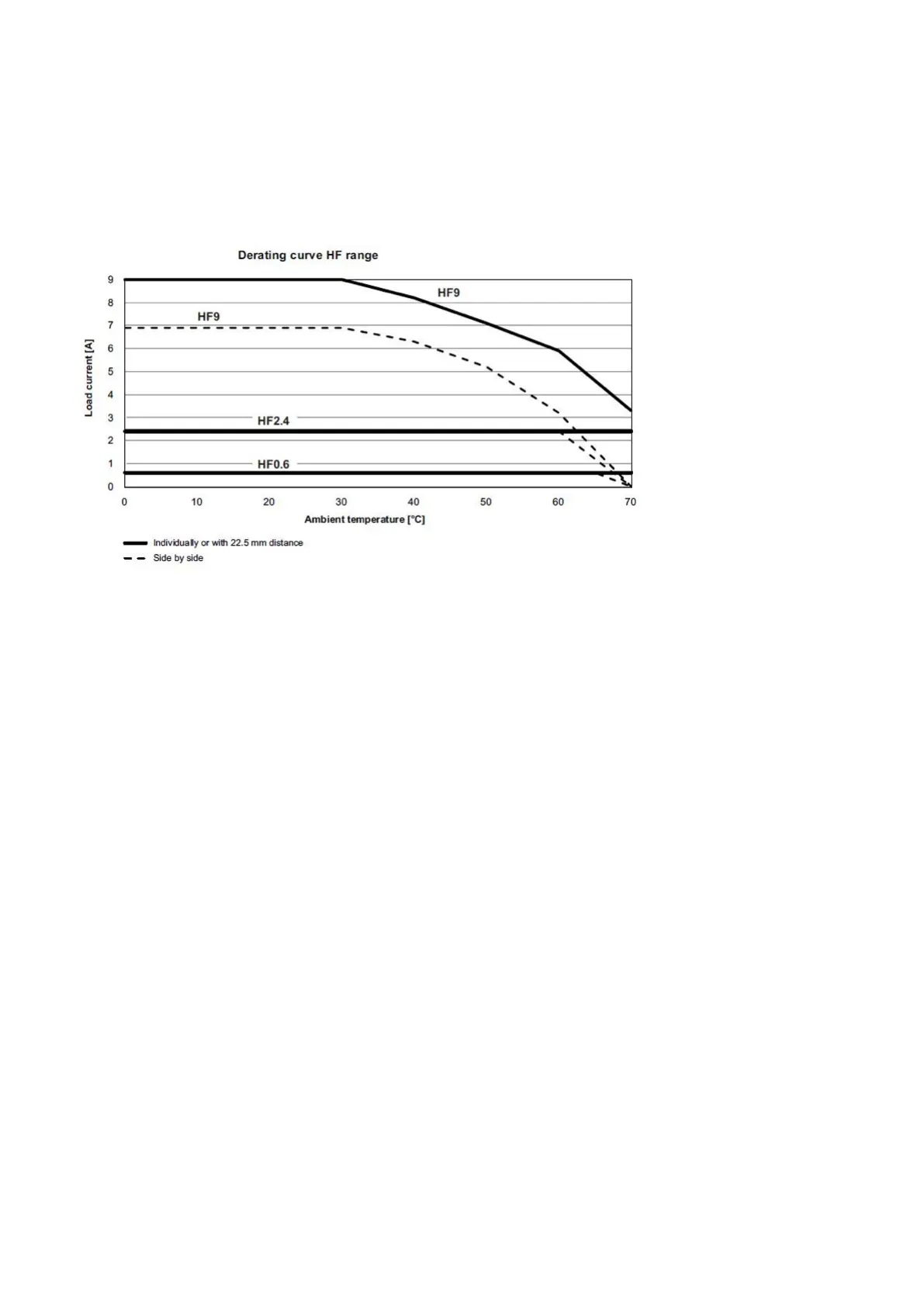

19 Derating curve for R-, DOL–, ROL-, DOLE and ROLE- types

—

5.3 De-installation

De-installation requirements

All terminals must be removed or disconnected.

Steps for de-installing from DIN-rail

1. Press the device downwards.

2. Pull the lower half of the device away from the DIN-rail.

3. Lift the device from the upper edge of the DIN-rail.

Disposal

All electronic compact starters comply with 'ROHS', the directive on the restriction of the use of certain hazardous

substances in electrical and electronic equipment.

Please contact de-electroniccompactstarter@abb.com for any questions regarding disposal.
