51 ELECTRONIC COMPACT STARTER | MANUAL
—
8.3.5 Disconnecting control input voltage (ON) and ground E (ꞱE) to safety relay - two channel connection
In applications for which the emergency stop is a normal operation status such as two-hand applications or
safety doors, the control current circuit is switched instead of the control voltage. If possible, use this circuit
example in order to achieve the maximum lifespan.
Switching off the control voltage supply with a controlled motor always results in wear to the electronic
compact starter.
The safety relay and the electronic compact starter can be connected to the same supply. It is not necessary
to connect to two different supplies.
Please use two channel connection to prevent from cross-circuit failure.
—

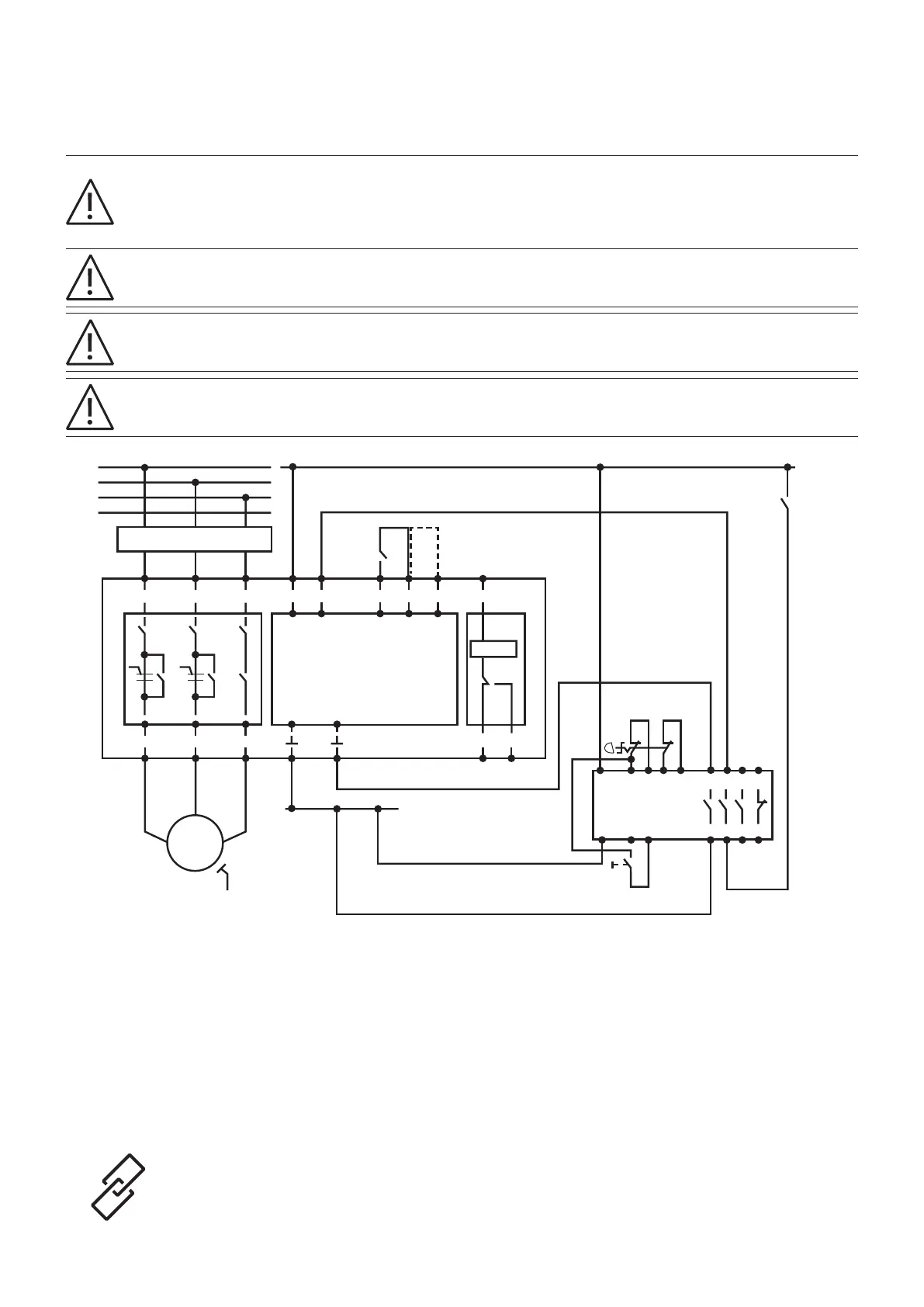

35 SSR two channel connection to ON and ⊥E
µController
M
3 ~
ON MAN RES AUT96
Signal
95 97
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
Device and wire protection
U
S
U1
V1
PE
W1
14 24 34 42A2 X4 X1
Sentry SSR10
S3
A1 T1 R1 T2 R2 13 23 33 41
E
∆∇ ∆∇
S2
S2
+ 24 V DC
L1
L2
L3
N
0 V DC
To learn more about the different wiring types please follow this link.
