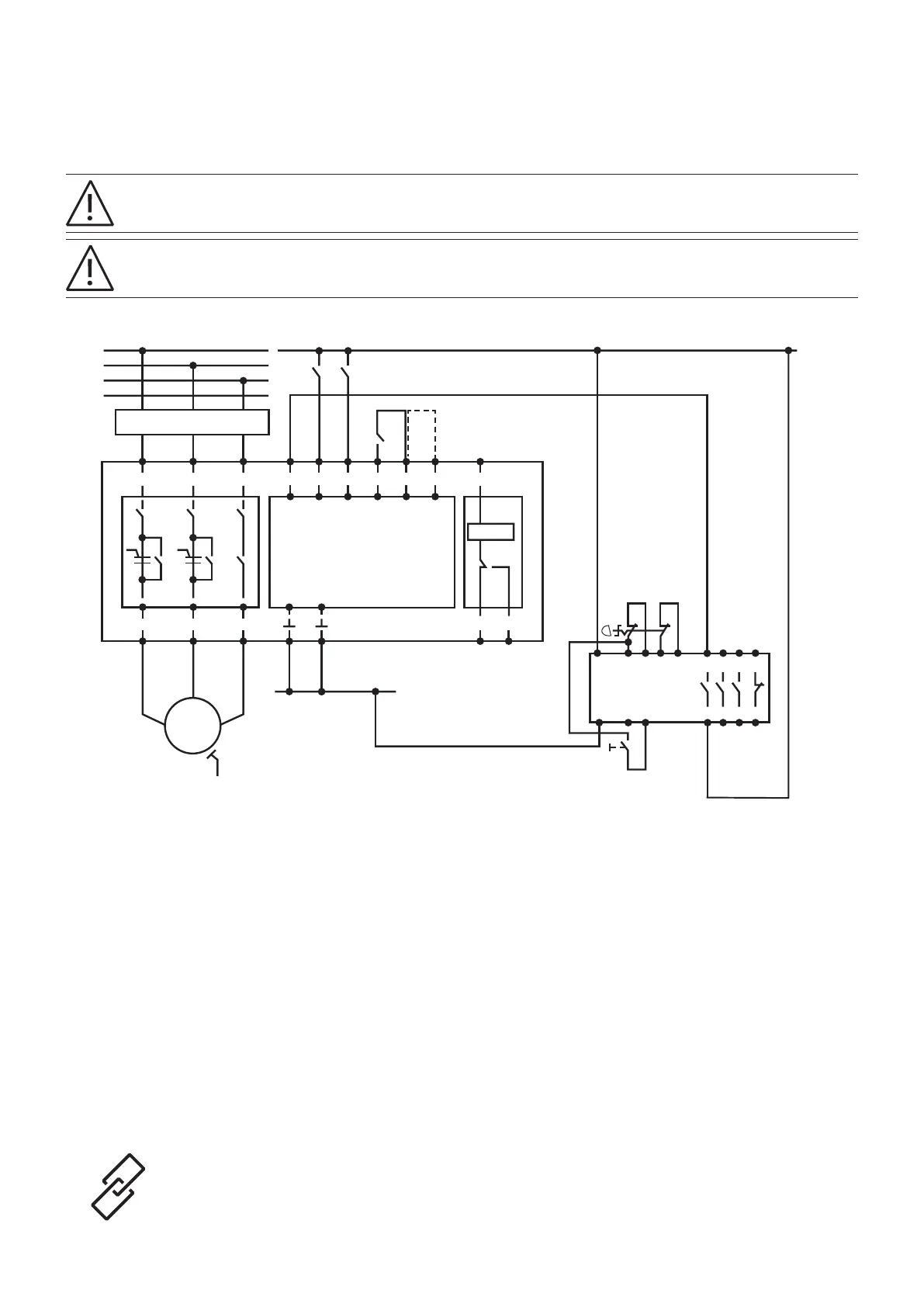

8.4.3 Disconnecting control supply voltage (Us) to safety relay
Switching off the control supply voltage with a controlled motor always results in wear to the electronic
compact starter.
The safety relay and the electronic compact starter can be connected to the same supply. It is not necessary
to connect to two different supplies.
µController
M
3 ~
RLMAN RES AUT96
Signal
95 97
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
Device and wire protection
U
S
U1
V1
PE
W1
14 24 34 42A2 X4 X1
Sentry SSR10
S3
A1 T1 R1 T2 R2 13 23 33 41
E
∆∇ ∆∇
S2
S2
+ 24 V DC
L1
L2
L3
N
0 V DC
—
39 ROLE - SSR single channel disconneting U
S
To learn more about the different wiring types please follow this link.
