8.15 Installing the compressor casing
Fitting the wall insert and the diffuser

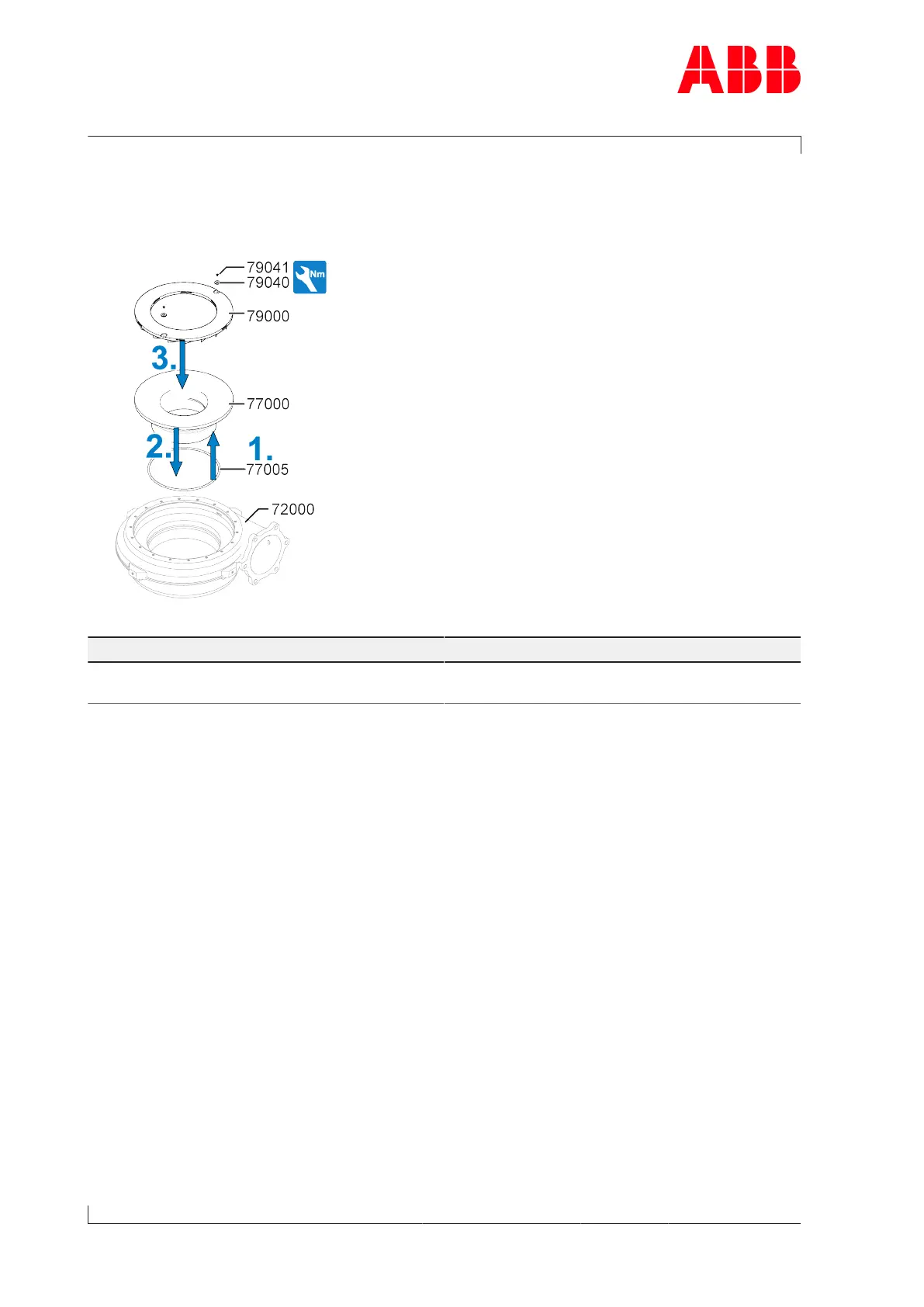

Fig.45: Fitting the wall insert and the diffuser
Part number A130 A135 A140
79041 M6
8Nm
M6
8Nm
M6
8Nm
Table38: Tightening torque (79041)
1. Always replace the O-ring(77005) (see section Spare parts).
2. Install the wall insert (77000) in the compressor casing.
3. Secure the diffuser(79000) with fixing discs (79040) and screws (79041).
Page 76 / 91
