Operation Manual / A130-H.. - A140-H..
6 Operation and service / 6.1 Noise emission
© Copyright 2021 ABB. All rights reserved.
HZTL4030_EN
Rev.G
July 2021

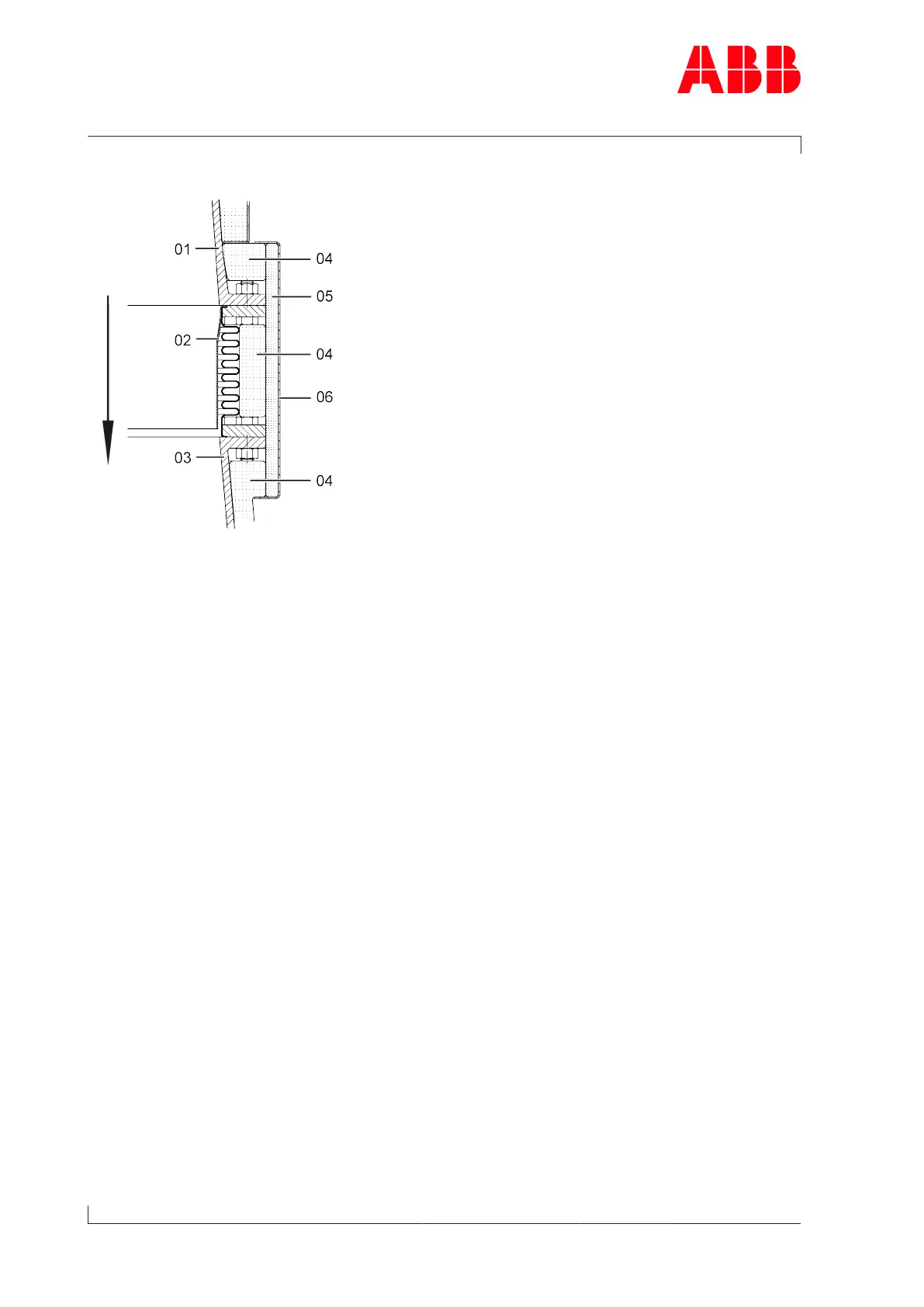

Suggestion for noise insulation, bellows
Fig.26: Noise insulation, bellows
01
Compressor casing
02
Bellows
03
Charge air duct / scavenging air duct
04
Insulation cushion
05
Insulation mat (at least 15 mm)
06
Sheet metal cover
Page 52 / 122
53
55
Table of Contents
