2 Removing and Installing
2.1 Turbocharger weight and transportation
Lifting gear with a sufficient load limit must be used for removing and installing the tur-
bocharger. The following weight specification applies to the heaviest variant possible. De-
pending on the specification, the weight specified on the rating plate may be lower than the
standard value specified here.
Product Weights [kg]
A130-H 190
A135-H 270
A140-H 460
Table2: Weights of turbochargers A130-H.. – A140-H..

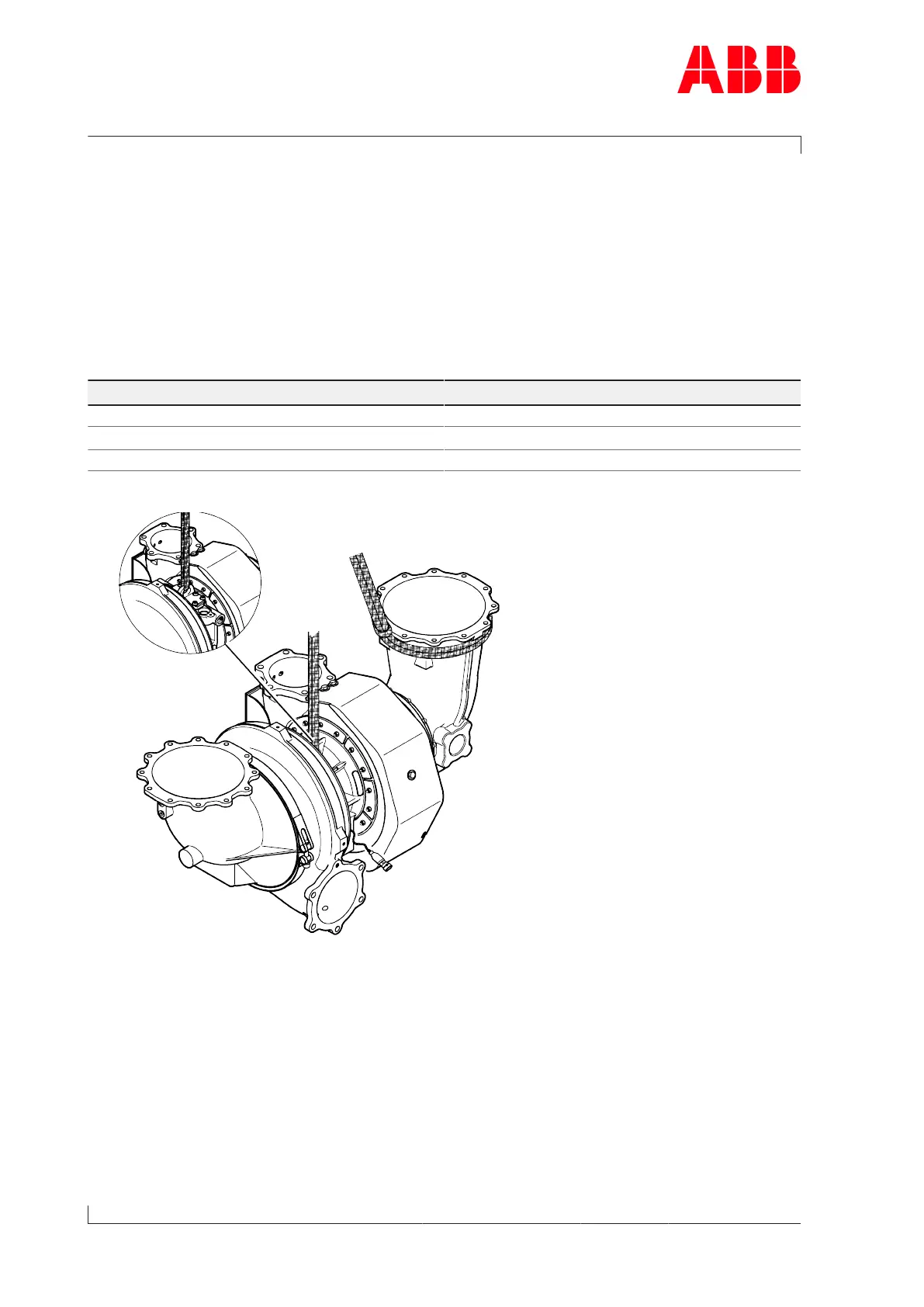

Fig.5: Suspension of complete turbocharger unit
