Dismantling the wall insert

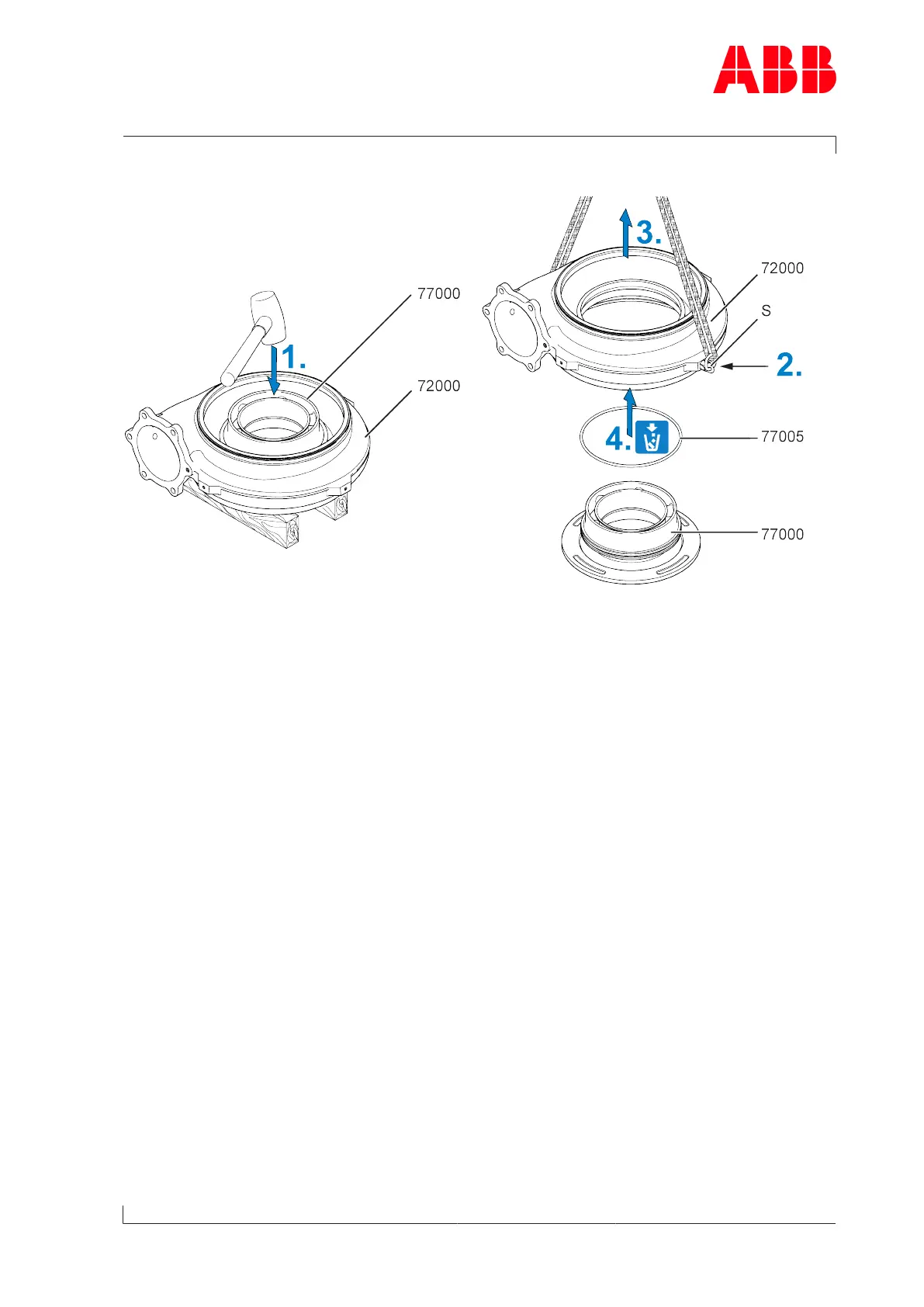

Fig.31: Dismantling the wall insert
1. Knock the wall insert (77000) out of the compressor casing (72000) with a plastic tip
hammer.
2. Attach swivel lifting eye (S) to the compressor casing (72000) and the lifting gear.
3. Lift up the compressor casing(72000).
4. Remove and dispose of the O-ring (77005).
