Operation Manual / 4 Product description / A130-H.. - A140-H
5 Operation and service / 5.1 Noise emission
© Copyright 2017 ABB. All rights reserved. HZTL4030_EN Revision D May 2017
Suggestion for noise insulation, bellows

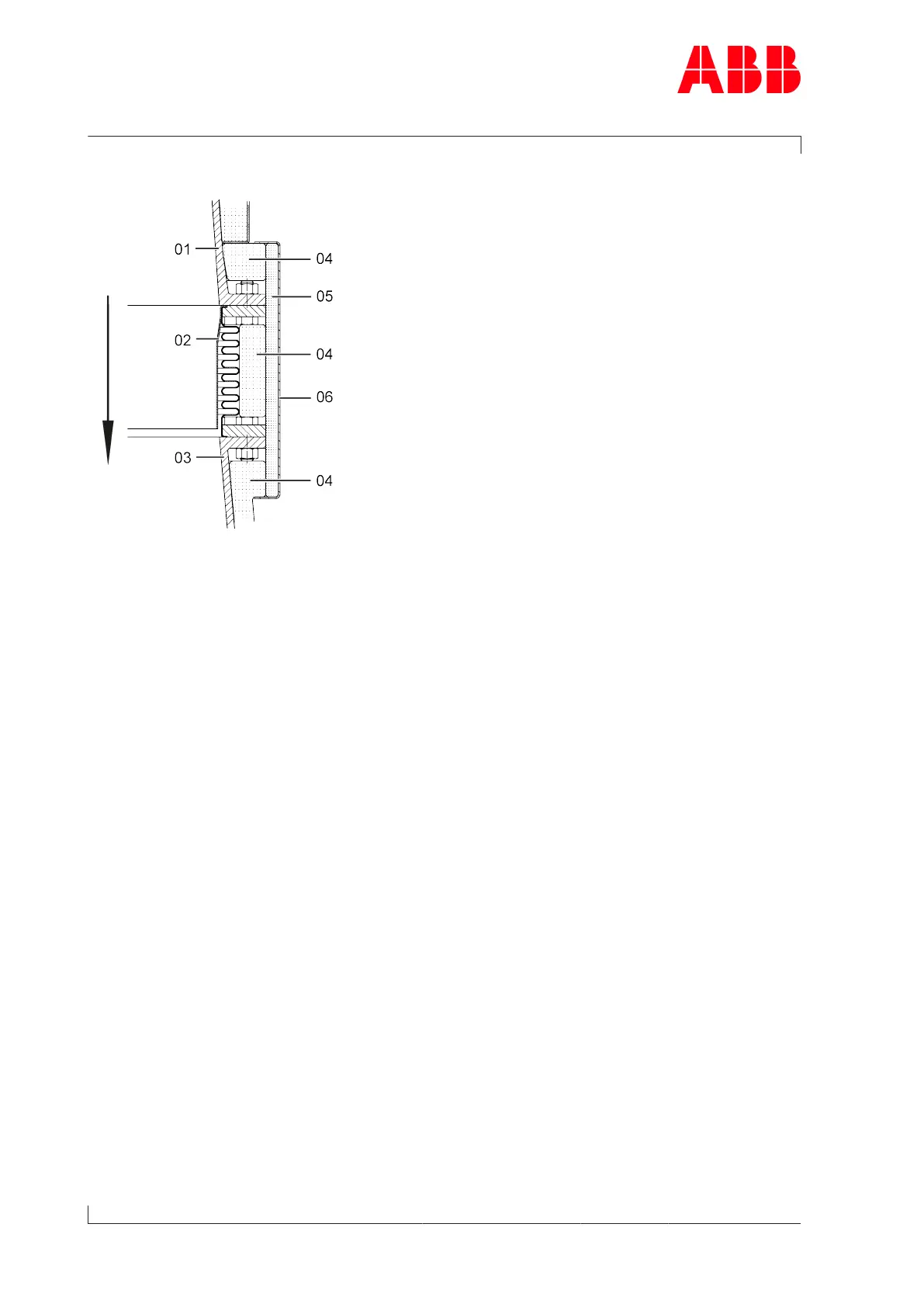

Fig.20: Noise insulation, bellows
01 Compressor casing
02 Bellows
03 Charge air duct / scavenging air duct
04 Insulation cushion
05 Insulation mat (at least 15 mm)
06 Sheet metal cover
Page 32 / 91
