Operation Manual / A130-H.. - A140-H..
1 Introduction / 1.5 Layout and function of the turbocharger
© Copyright 2021 ABB. All rights reserved. HZTL4030_EN Rev.G July 2021
1.5 Layout and function of the turbocharger

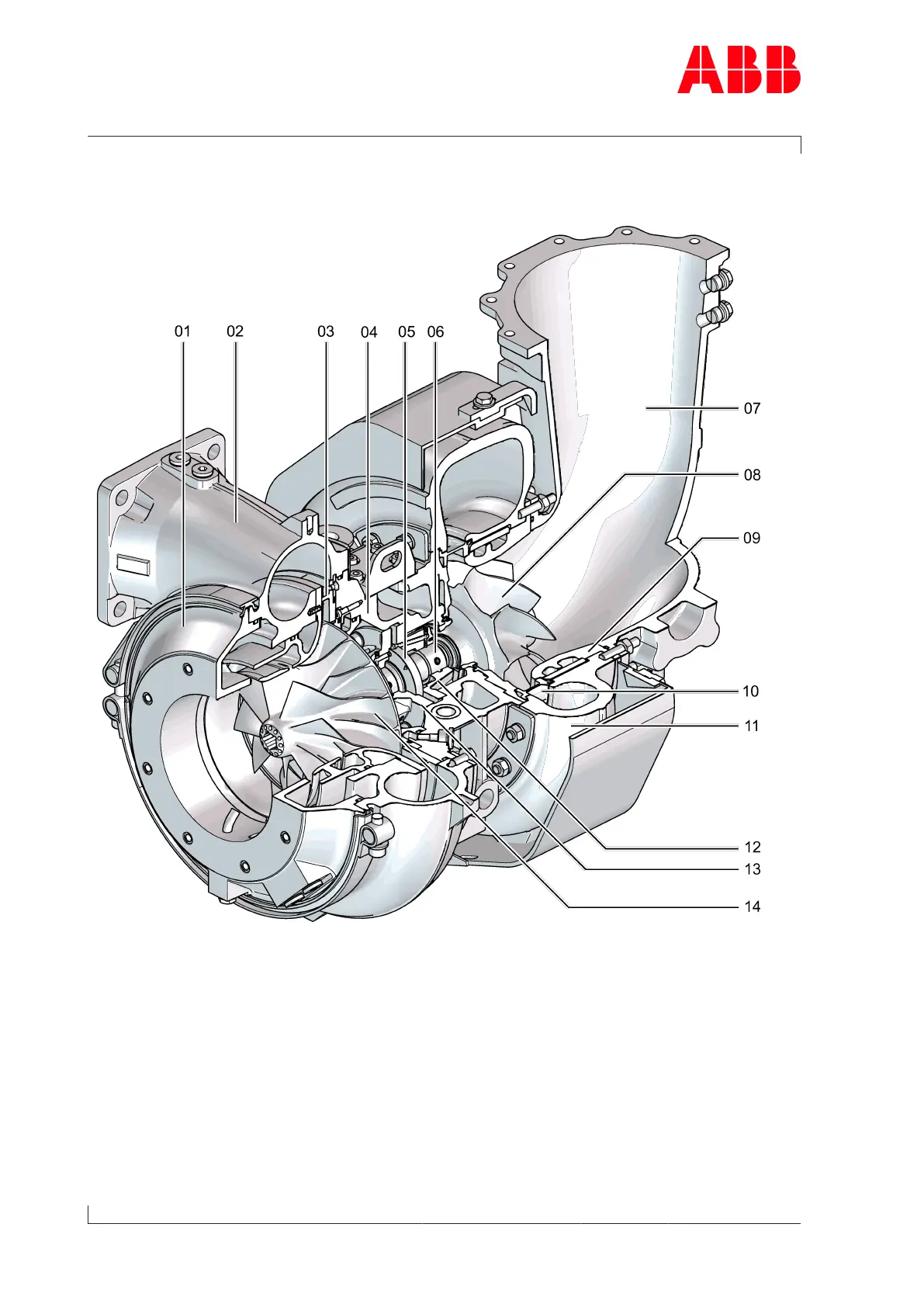

Fig.2: Layout and function of the turbocharger
01 Air suction branch 08 Turbine
02 Compressor casing 09 Gas outlet flange
03 Diffuser 10 Nozzle ring
04 Bearing casing 11 Turbine casing
05 Axial thrust bearing 12 Turbine-end bearing flange
06 Radial plain bearing 13 Compressor-end bearing flange
07 Gas outlet casing 14 Compressor wheel
Page 6 / 122
