Installing turbine diffuser

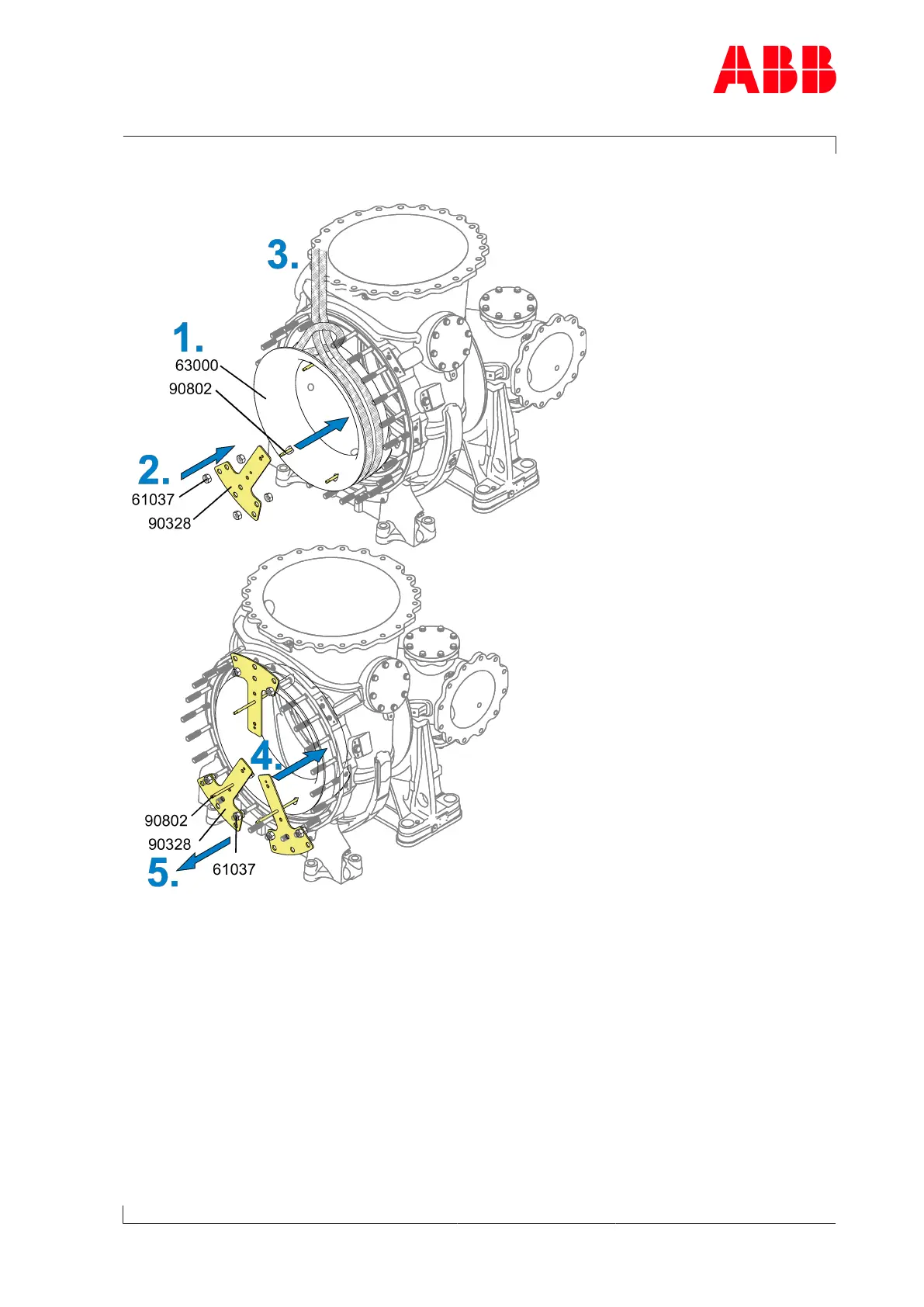

Fig.47: Installing turbine diffuser 1
1. Using lifting gear, move turbine diffuser (63000) in over guide studs (90802) until the
lifting gear is on the gas outlet casing.
2. Fit guide plates (90328) with nuts (61037).
3. Remove the lifting gear.
4. Slide in turbine diffuser as far as it will go.
5. Remove nuts (61037), guide plates (90328) and guide studs (90802).
