9.3 Fitting the cover plate
The cover plate (01) and spacer sleeves (02) (material: general construction steel, in compli-
ance with DIN EN 10025-2) must be manufactured according to the drawing from the oper-
ator.

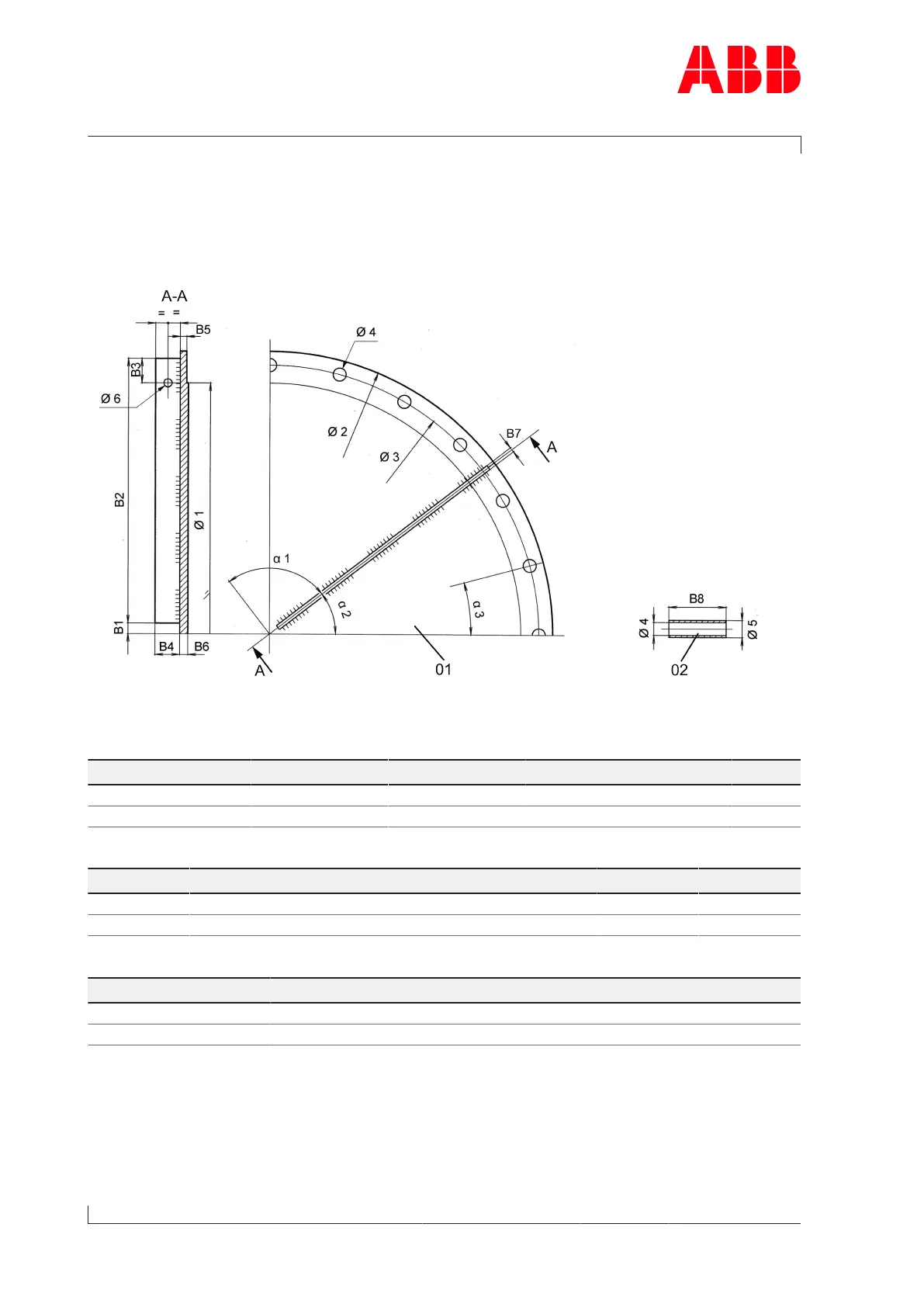

Fig.69: Cover plate (01) / spacer sleeves (02) dimensions
Cover plate (01) / spacer sleeves (02) dimensions [mm]
Product B1 B2 B3 B4 B5 B6 B7 B8
A170-M 13 432 50 50 9 12 8 96
A175-M 13 500 50 50 9 12 8 112
Table55: Cover plate dimensions 1
Product Ø 1 Ø 2 Ø 3 Ø 4 Ø 5 Ø 6
A170-M 835 915 872.4 24 34 20
A175-M 965 1050 1007.5 26 36 20
Table56: Cover plate dimensions 2
Product
⍺
1
⍺
2
⍺
3
A170-M 4 x 90° 37.5° 24 x 15°
A175-M 4 x 90° 37.5° 24 x 15°
Table57: Cover plate dimensions 3
