Removing the compressor casing

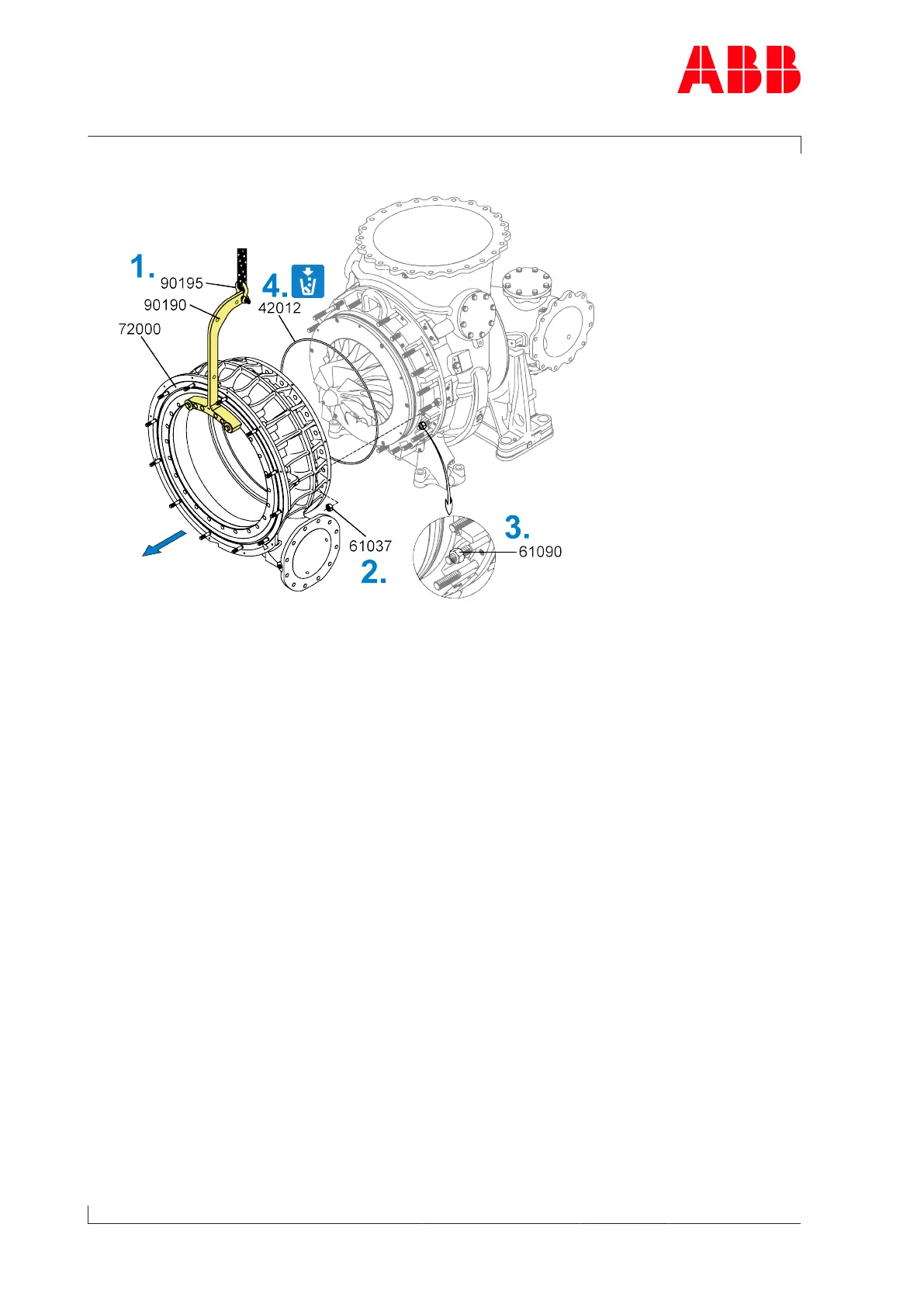

Fig.34: Removing the compressor casing
1. Using shackle (90195) and lifting gear, fasten lifting device (90190) to compressor casing
(72000) and secure to crane.
2. Loosen and remove nuts (61037).
3. Use press-off nuts (61090) to fully press off and remove compressor casing (72000).
4. Remove and dispose of the O-ring (42012).
