Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.13 Installing the air inlets
© Copyright 2020 ABB. All rights reserved. HZTL4033_EN Rev.E May 2020
8.13.2 Installing the filter silencer

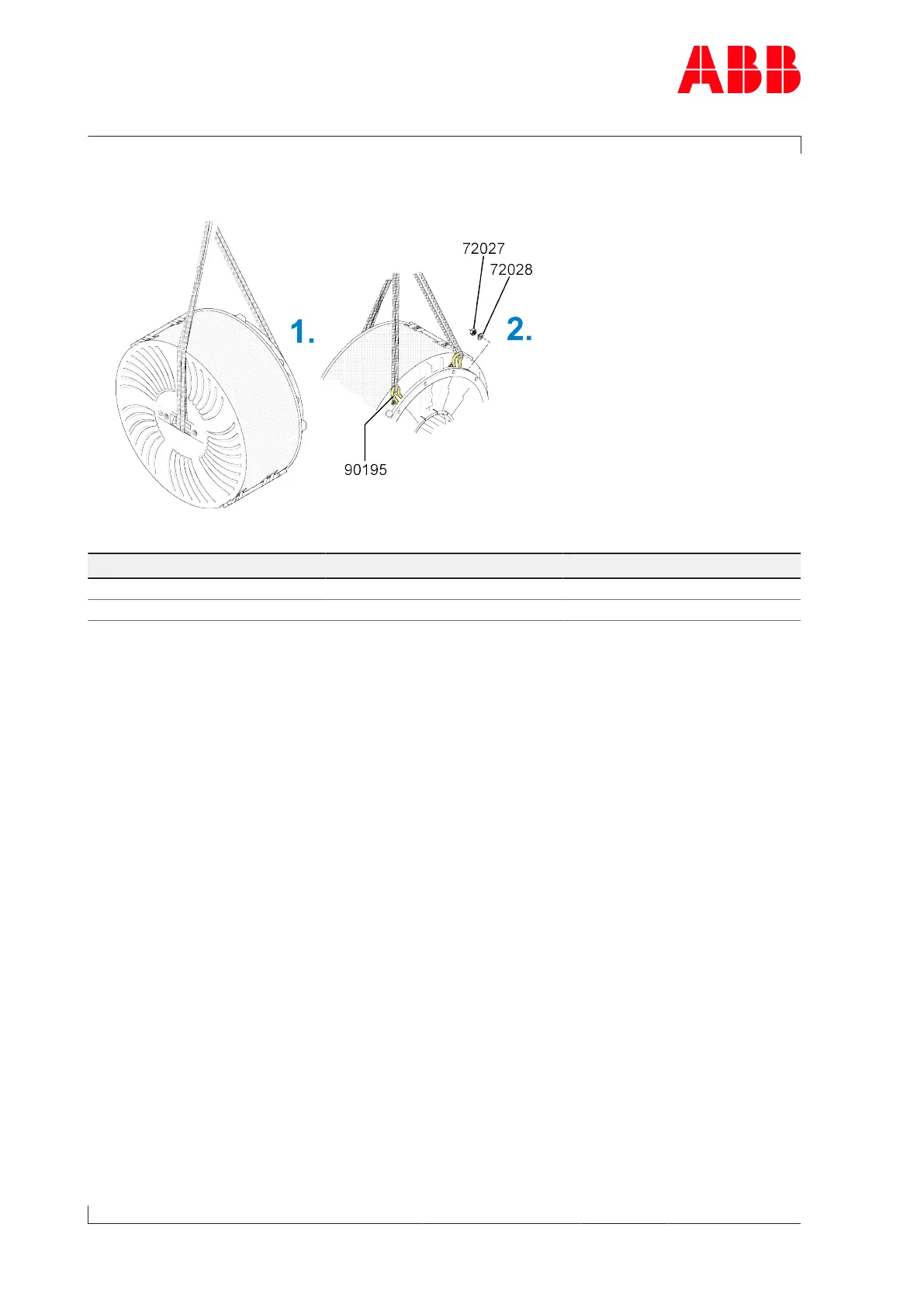

Fig.60: Installing the filter silencer
Product Size Tightening torque [Nm]
A170-M M18 170
A175-M M20 220
Table49: Tightening torque(72027)
1. Loop lifting gear through the fin on the filter silencer and secure to the eyelets at the rear
with shackles (90195).
2. Fit filter silencer together with nuts (72027) and washers (72028). Observe tightening
torque.
u Fit insulation.
Page 88 / 113
