Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.8 Installing the nozzle ring
© Copyright 2020 ABB. All rights reserved. HZTL4033_EN Rev.E May 2020

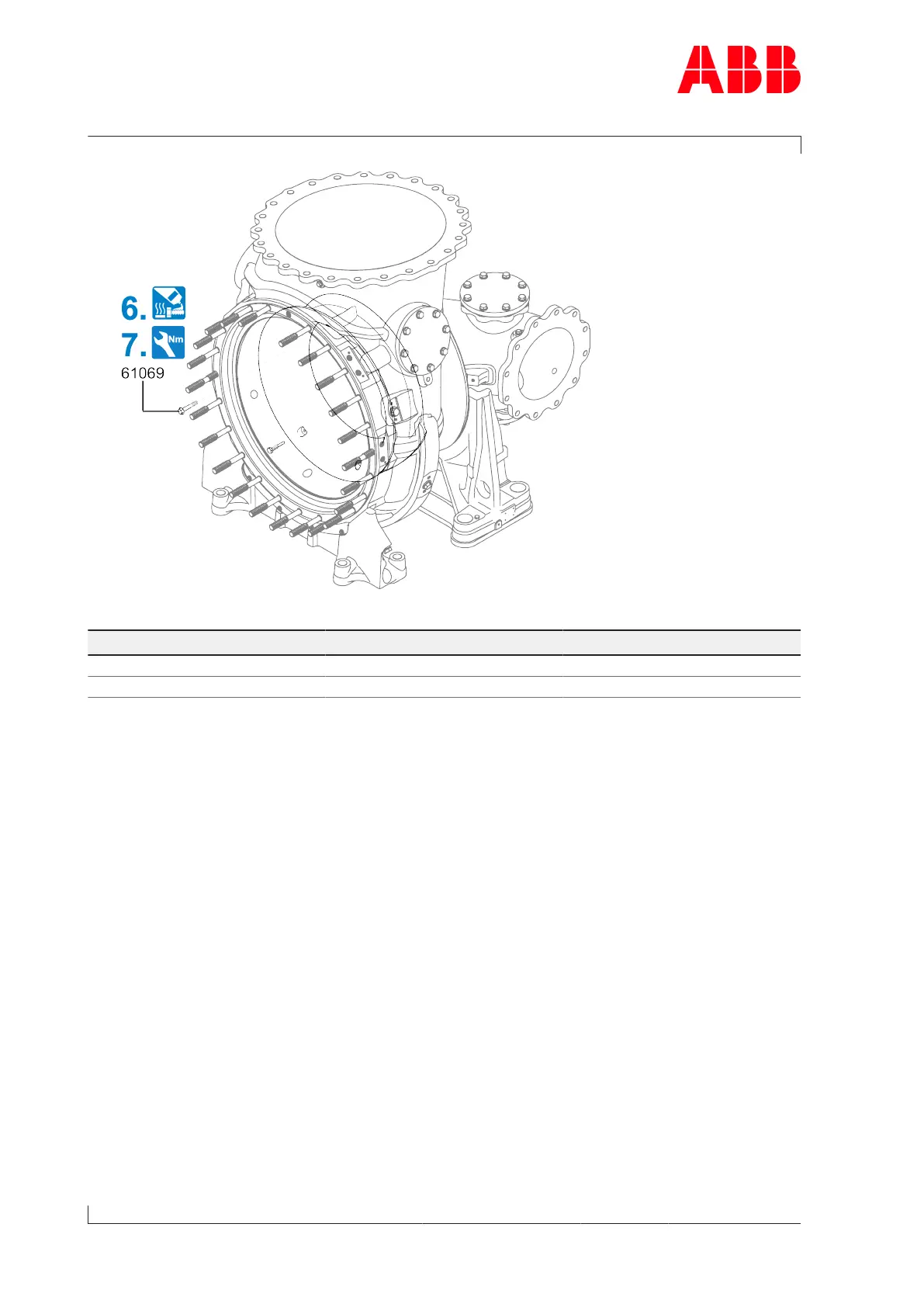

Fig.48: Installing turbine diffuser 2
Product Size Tightening torque [Nm]
A170-M M14 130
A175-M M16 200
Table37: Tightening torque (61069)
6. Coat threads of screws (61069) with high-temperature grease.
7. Fit and tighten screws (61069).
Page 76 / 113
