Operation Manual / TPS44-H.. - TPS52-H..
14 Spare parts / 14.3 Spare part - Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021

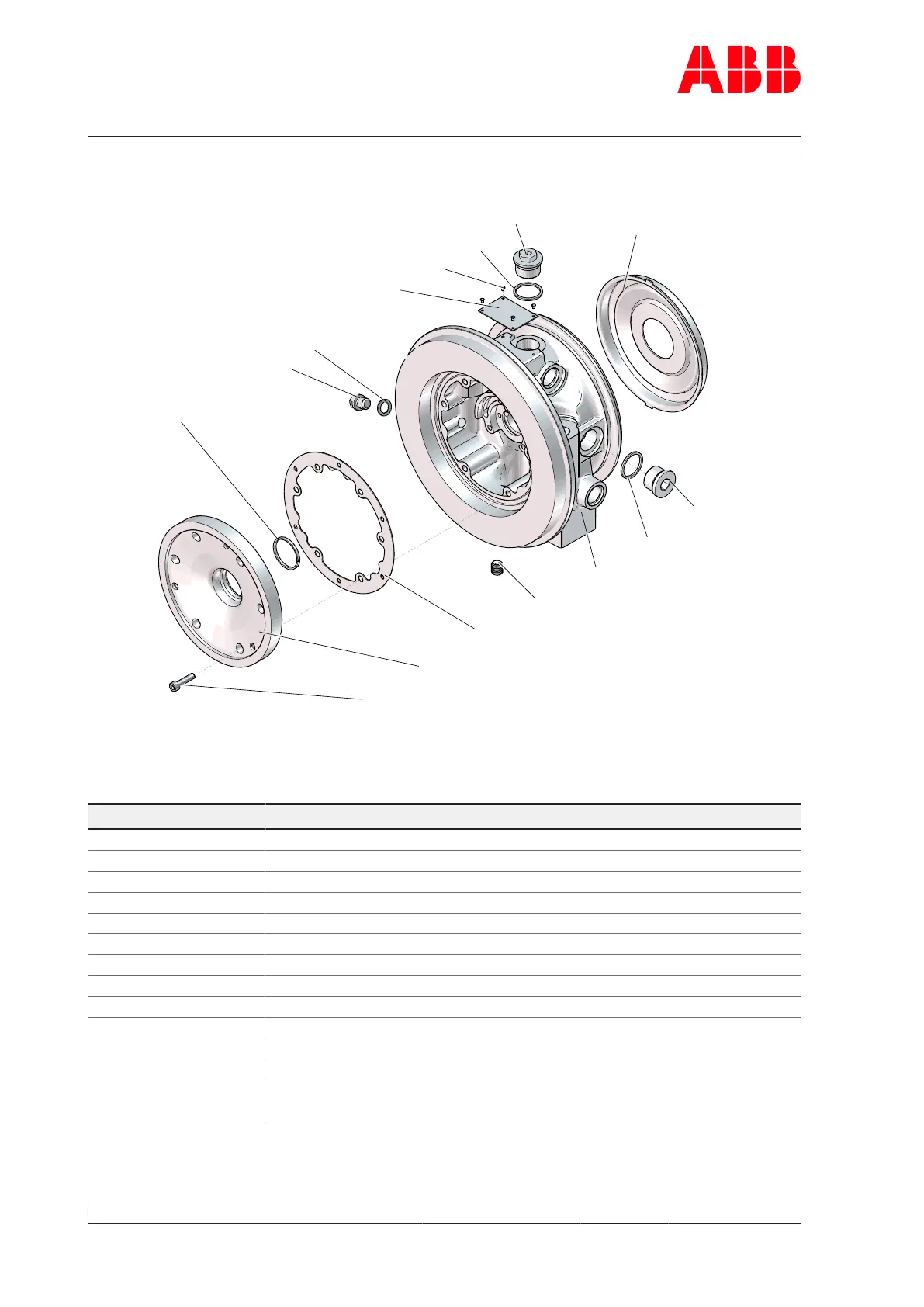

Bearing casing
42302*
42188(p)
42196
42402
42189(p)
42001
42183*(p)
98105
42183*(p)
98100
42182*(p)
42184*(p)
42041*
42301
42008*
* = Available within the spare part set HZTL443412 Mod. B
(p) = pre-assembled
Part no. Designation
42001 Bearing casing
42008* Socket screw
42041* Gasket
42182* (p) Screw plug
42183* (p) Gasket
42184* (p) Screw plug
42188(p) Hexagon-head screw
42189(p) Gasket
42196 Orifice oil inlet
42301 Bearing cover
42302* Piston ring
42402 Heat sheet metal
98100 Rating plate
98105 Round head threaded rivet
Table46: Spare parts - Bearing casing
