Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.8 Removing nozzle ring
© Copyright 2021 ABB. All rights reserved.
HZTL4037_EN
Rev.F
May 2021
10.8
Removing nozzle ring

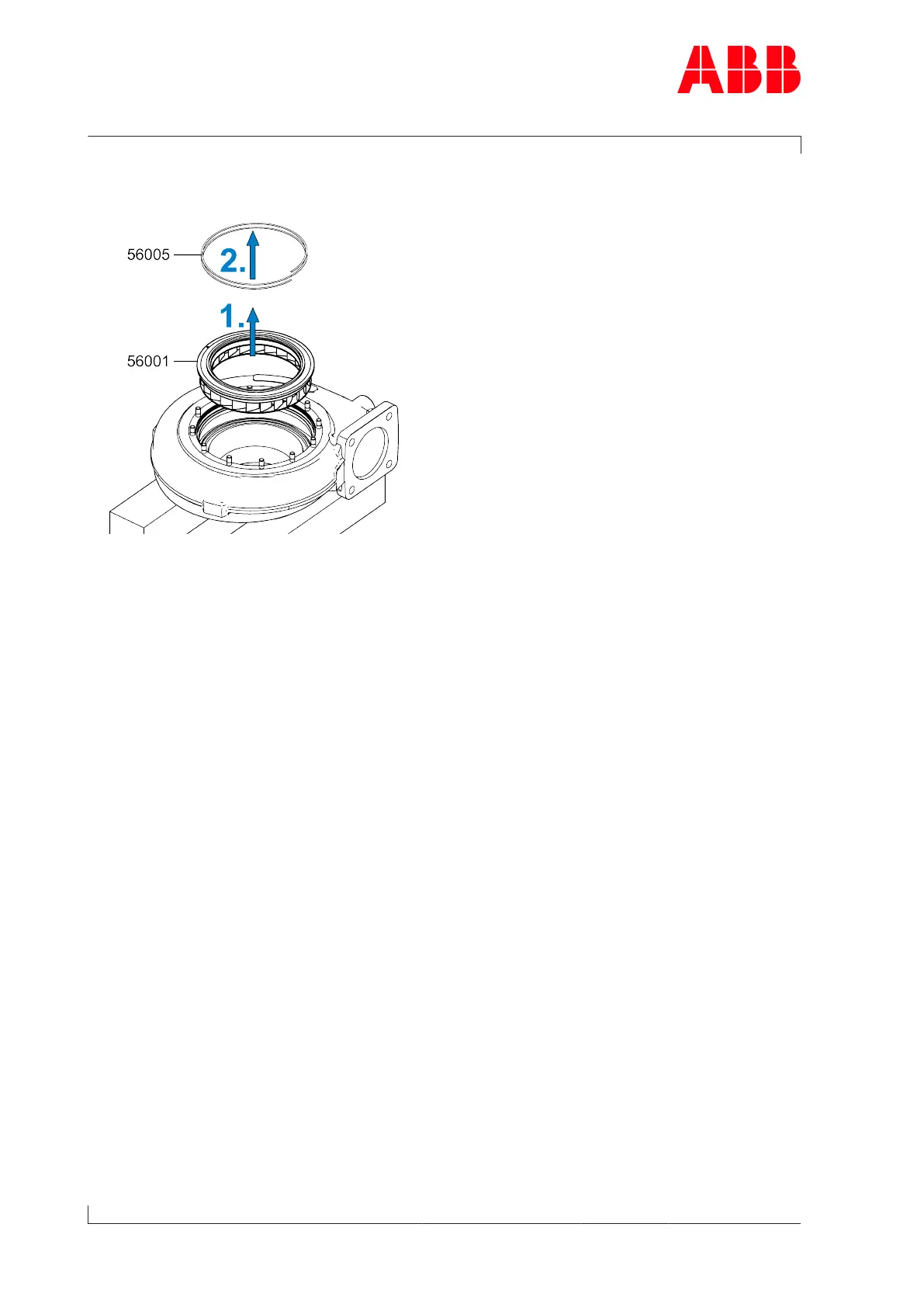

Fig.35: Removing the nozzle ring
1.
Remove the nozzle ring(56001) vertically.
2.
Remove the lamellar sealing ring (56005).
Page 80 / 111
