Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.2 Material required
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021

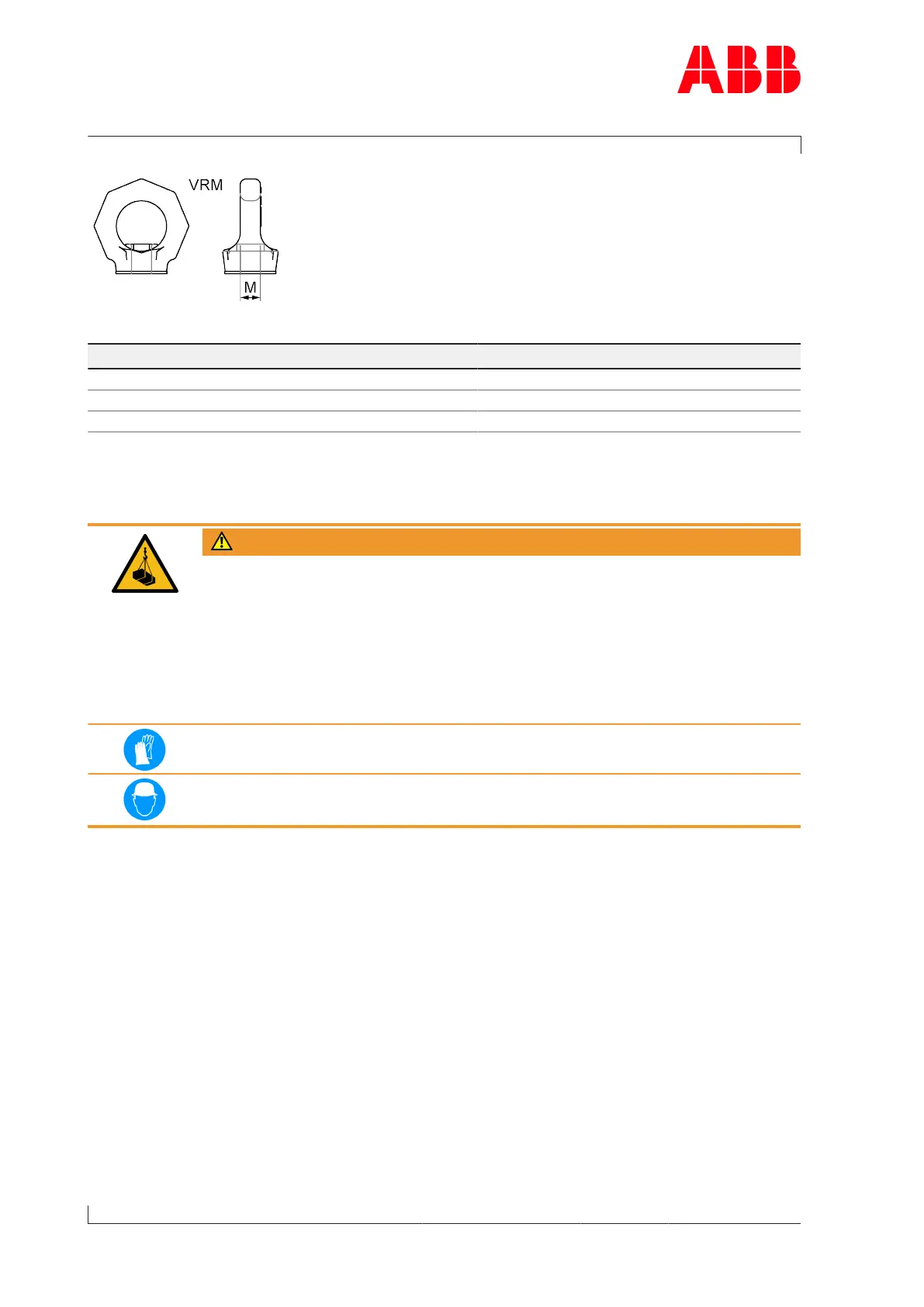

Fig.24: Ring nuts
Product Thread
TPS44 M16
TPS48 M16
TPS52 M16
Table33: Ring nuts to be used (VRM)
Lifting gear
WARNING
Suspended loads
Loads that are not attached according to regulations can cause injury to
personnel or fatal accidents.
u Only fasten the turbocharger, assemblies or individual parts on properly
functional lifting gear with sufficient load limit.
u Pay attention to the correct attachment of loads on the crane hook.
u People must not stand beneath suspended loads.
Wear safety gloves to protect against mechanical hazards.
Wear safety helmet.
Definition of terms
¡ Suspension point
Defined loading point on a component or an assembly (blind hole thread, eyelet, lug).
¡ Assembly device
Devices that are fitted on the turbocharger in order to obtain a suspension point. As-
sembly devices are specially constructed and designed for the defined use; they are not
commercially available products. Use assembly devices only for the described applica-
tions.
¡ Lifting gear
Equipment for the lifting and transporting of loads (ropes, chain block, crane). Lifting
gear is not supplied by ABB.
