Operation Manual / TPS44-H.. - TPS52-H..
3 Removing and Installing / 3.3 Installing the turbocharger
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
3.3.2 Fitting threaded rods

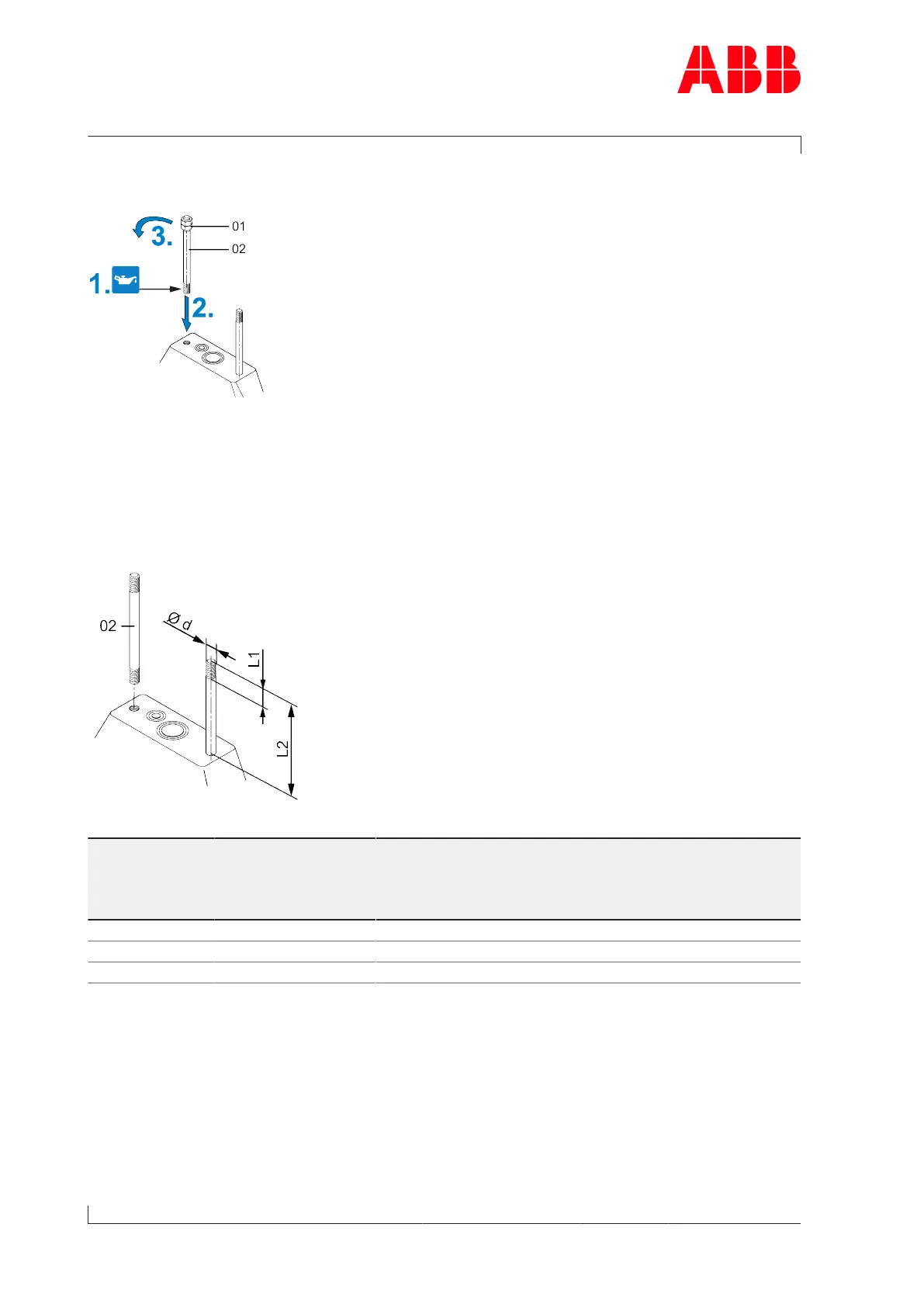

Fig.13: Inserting threaded rods into the bracket
1. Lightly oil the surfaces of the threaded rods (02) to be screwed in.
2. Screw the threaded rods into the bracket with the aid of locknuts (01).
3. Remove nuts(01) again.
Requirements for the threaded rods (02)
Fig.14: Requirements for threaded rods
Product Diameter
Threaded rod
[mm]
Material
DIN / ISO 898
(Part 1)
Thread length
L1[mm]
Length of
threaded rod
L2 [mm]
TPS44 Ø 16 / M16 10.9 / 12.9 ≥ 30 150
TPS48 Ø 16 / M16 10.9 / 12.9 ≥ 30 170
TPS52 Ø 20 / M20 10.9 / 12.9 ≥ 30 195
Table6: Requirements for threaded rods
Fastening material, scope of delivery
The threaded rods and nuts required for attaching the turbocharger to the bracket are not
included in the ABB scope of delivery. These parts depend on the version of the engine-side
bracket.
Page 32 / 111
