ABB HT598319 User Manual

Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.12 Installing the cartridge group
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
Fitting the cartridge group

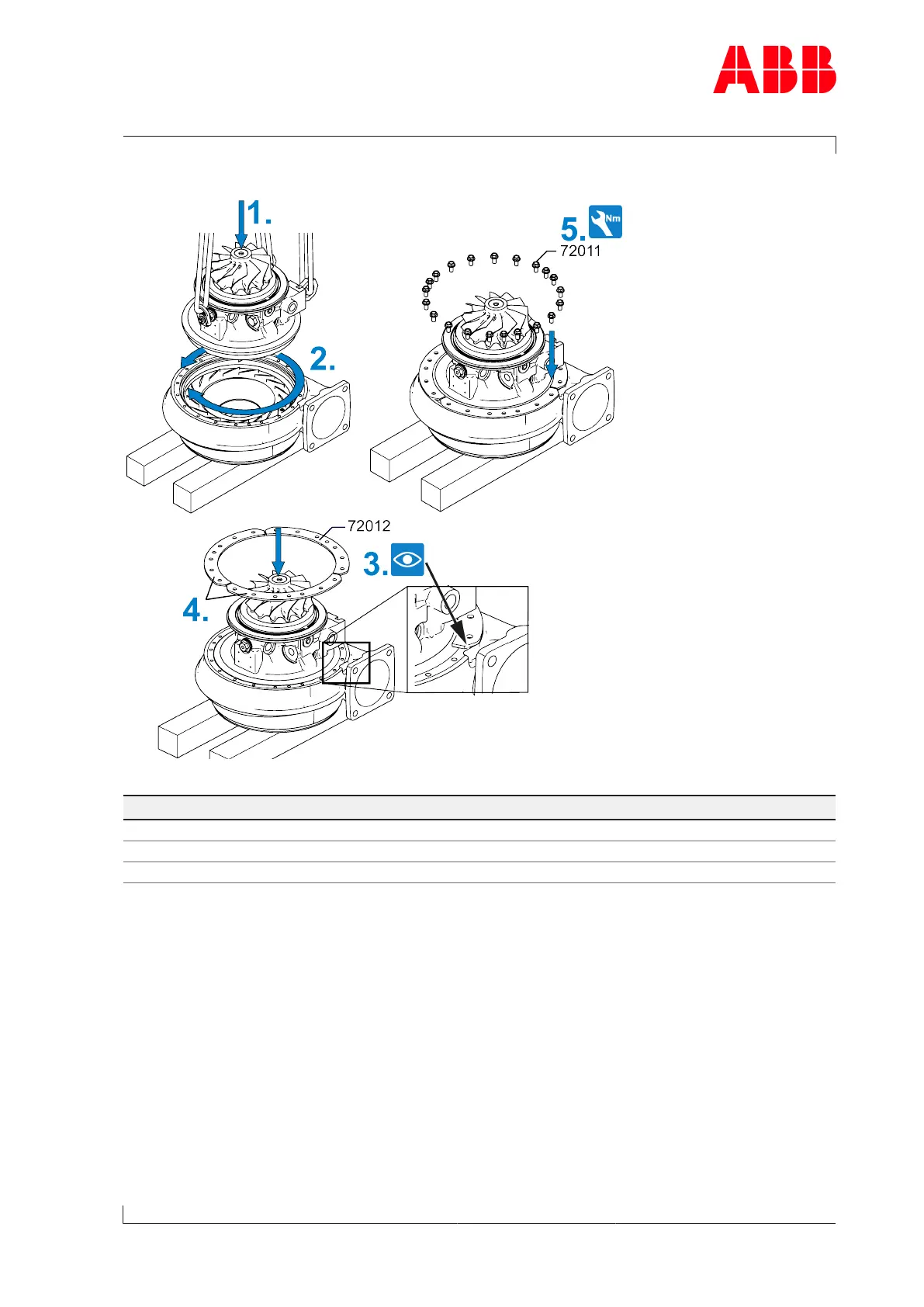

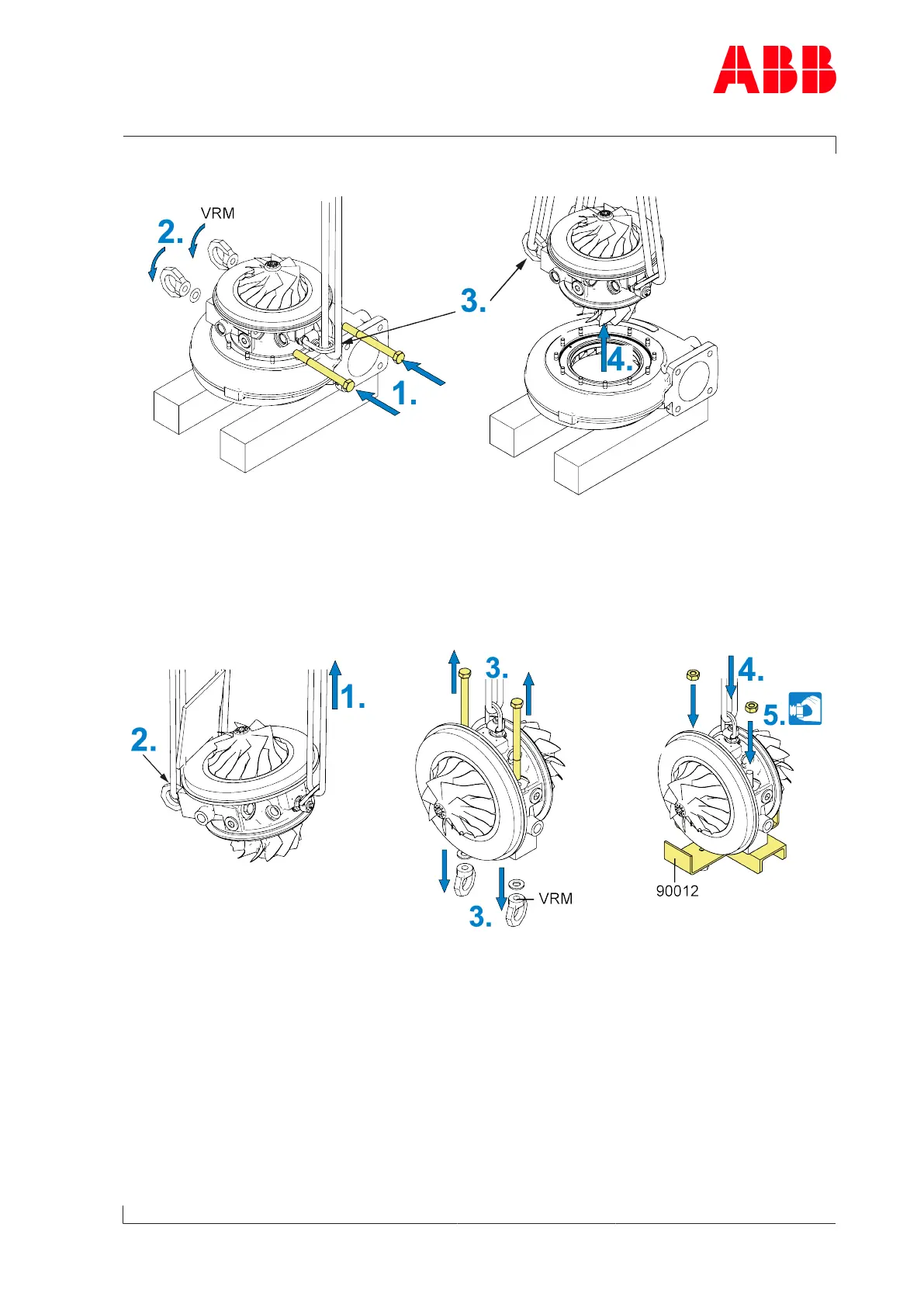

Fig.40: Fitting the cartridge group
Product Size Tightening torque [Nm]
TPS44 M8 40Nm
TPS48 M8 40Nm
TPS52 M10 80Nm
Table38: Tightening torque (72011)
1. Lower cartridge group carefully into the compressor casing.
2. Align cartridge group to the marking.
3. Place first fastening strip (72012) according to illustration.
4. Place remaining fastening strips (72012).
5. Fit and tighten hexagon-head screws(72011).
Page 85 / 111
