ABB HT598319 User Manual

Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.7 Removing the cartridge group
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021

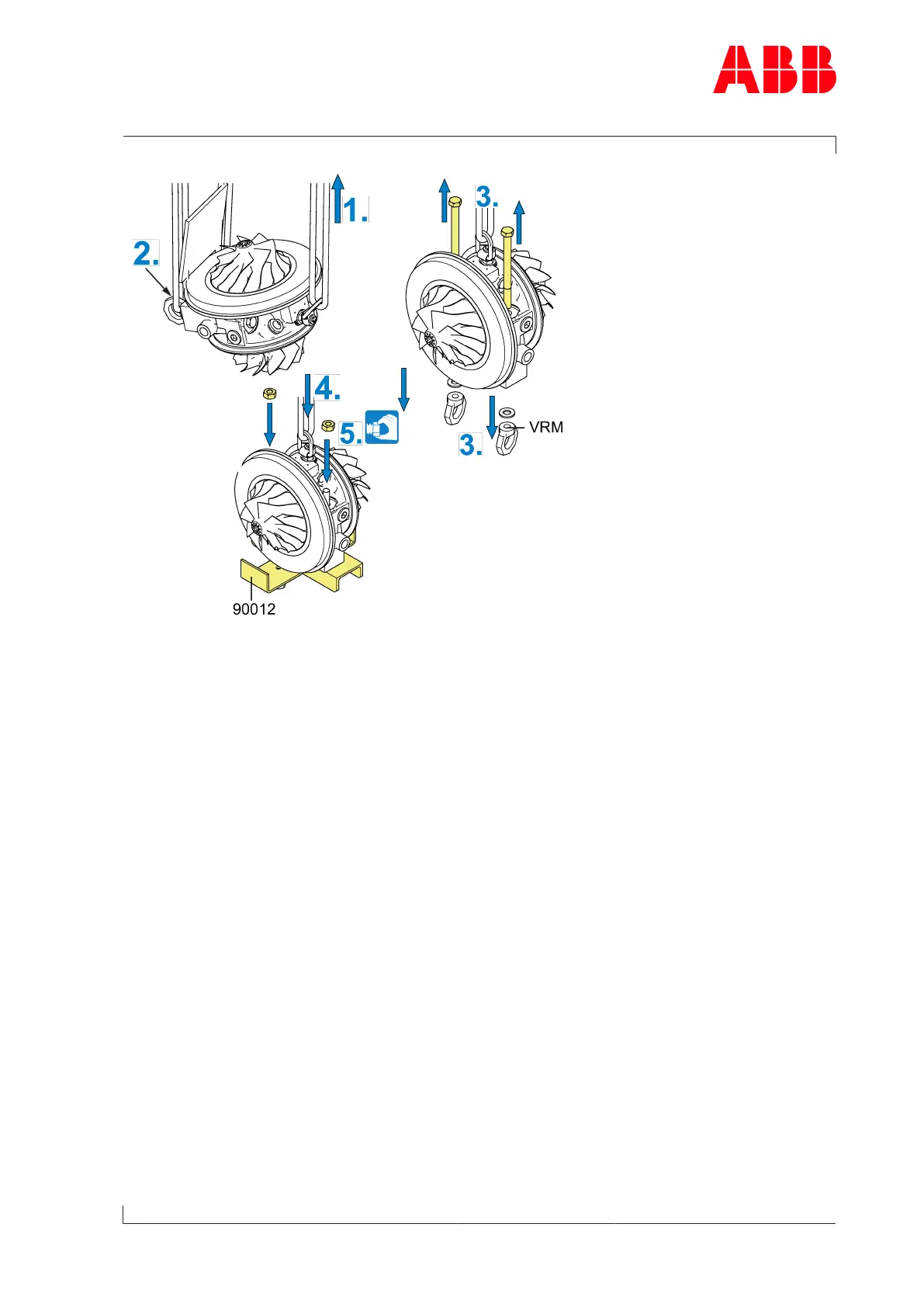

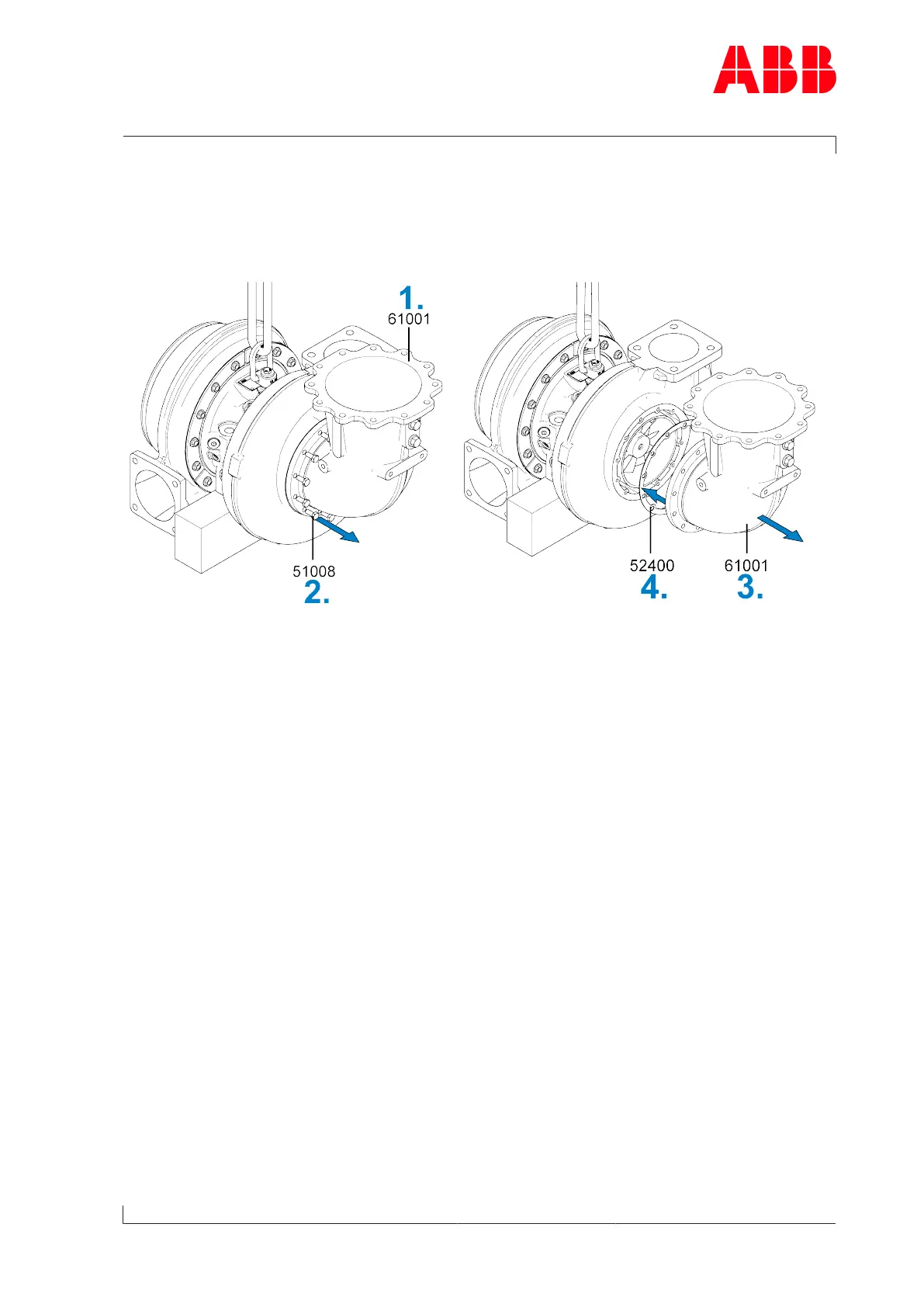

Fig.34: Rotating the cartridge group and fitting the service support
1. Lift the cartridge group and rotate in the horizontal position.
2. Remove the lifting gear from the ring nuts.
3. Remove the ring nuts (VRM) and screws from the service support.
4. Place the cartridge group onto the fitted service support (90012).
5. Fit and hand-tighten nuts.
u Measure: Axial clearance A and radial clearance B.
Page 79 / 111
