Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.8
Removing the nozzle ring
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
10.8 Removing the nozzle ring

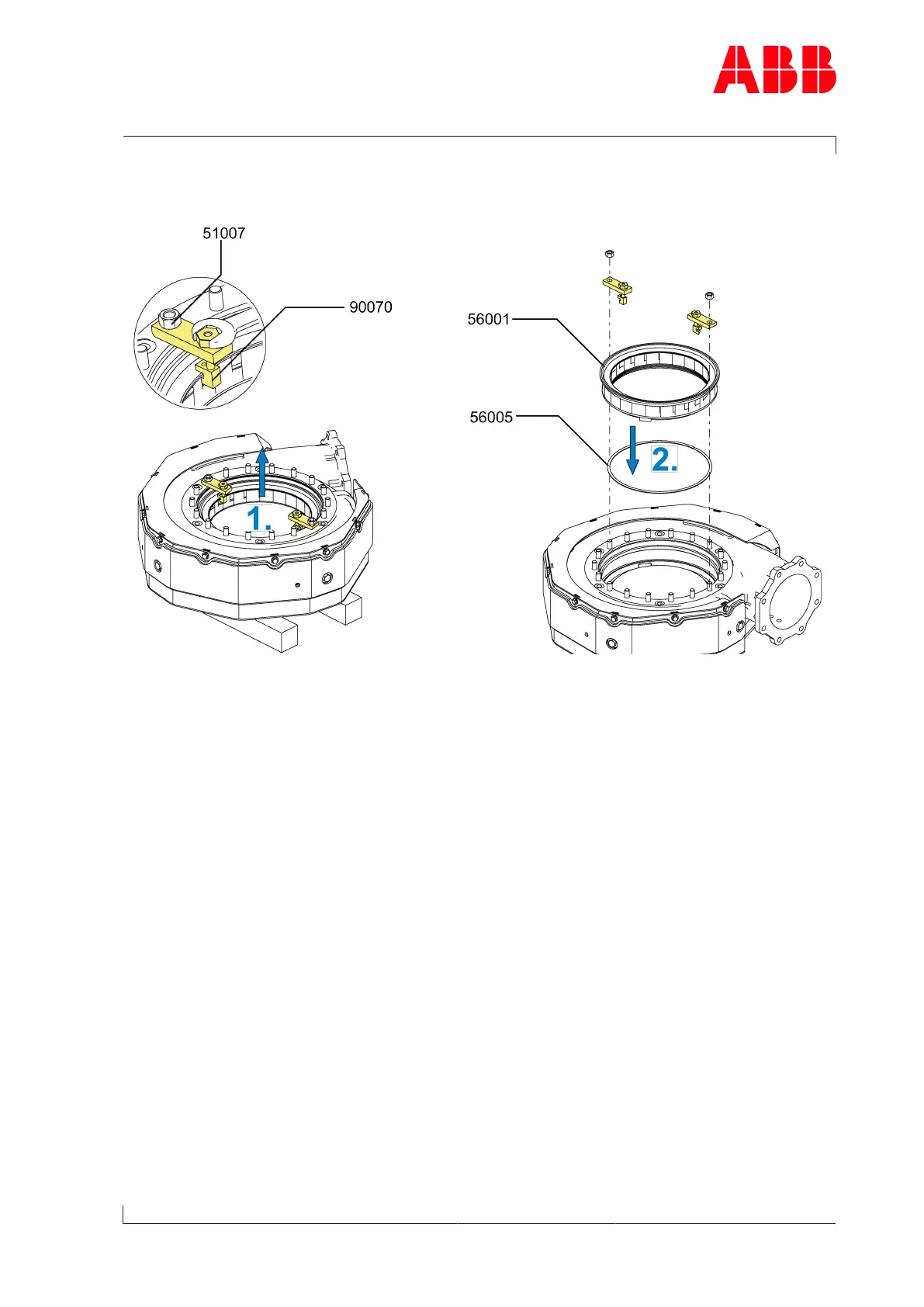

Fig.63: Removing the nozzle ring
1. Pull out the nozzle ring (56001) with the two extraction devices (90070).
2. Remove the lamellar sealing ring (56005).
Page 111 / 194
