ABB HT604449 - Fig. 118: Disassembly of the Elbows; Fig. 119: Pipe Disassembly

Operation Manual / A150-M56/66/57/67 - A155-M..
13 Removing and installing 6-nozzle turbine cleaning component (op-
tional) / 13.1 Disassembly
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021

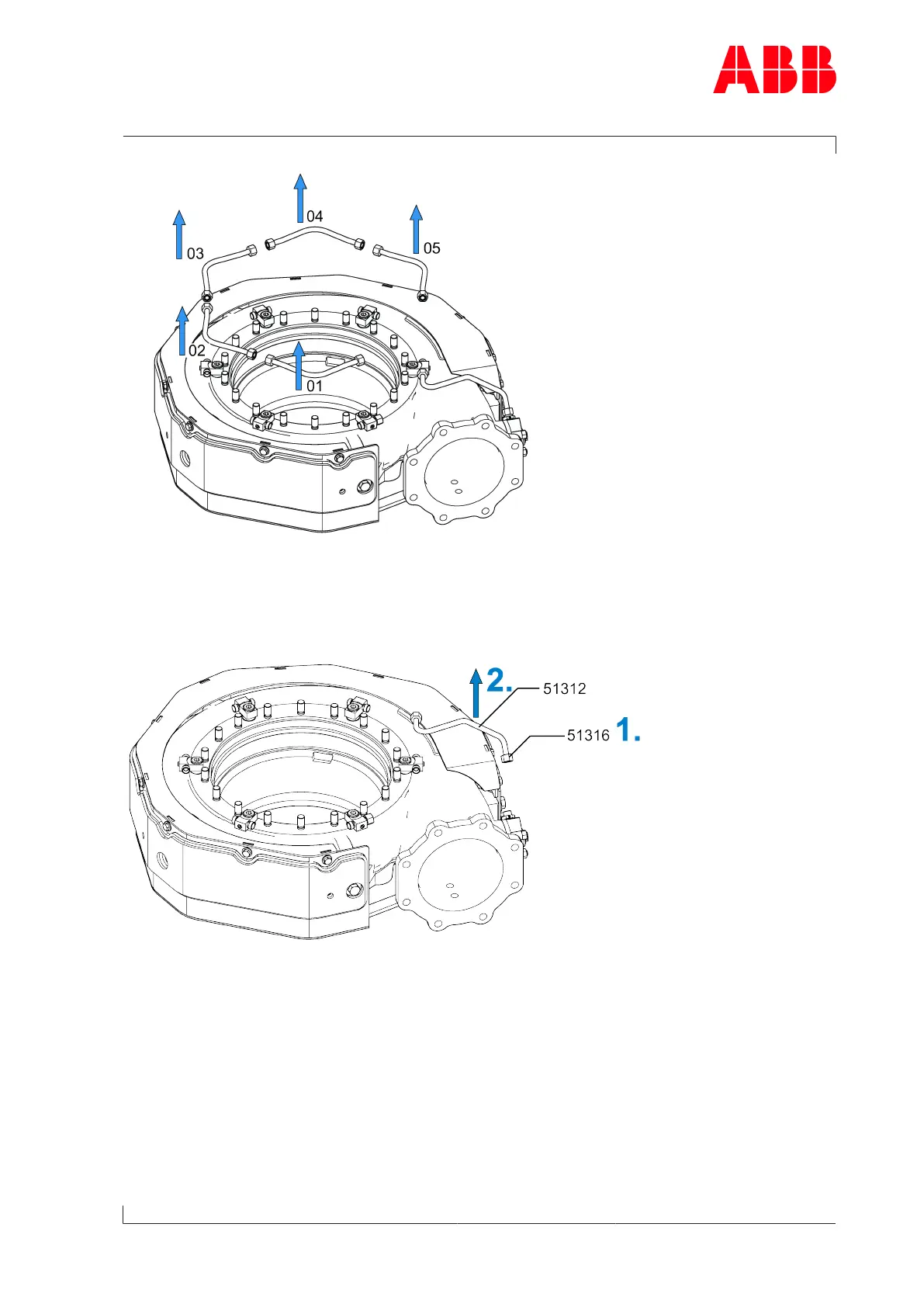

Fig.118: Disassembly of the elbows
u Remove the elbows (51311) from the connecting pieces (51313) in the specified order (01,
02, 03, 04, 05).
Fig.119: Pipe disassembly
1. Undo union nuts (51316) of pipe (51312).
2. Remove pipe.
Page 159 / 194
