ABB HT604449 - Fig. 38: Press-Off Screws; Fig. 39: Dismantling Screw; Table 37: Press-Off Screws; Table 38: Dismantling Screw

Operation Manual / A150-M56/66/57/67 - A155-M..
9 Dismantling and fitting, general / 9.2 Material required
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021

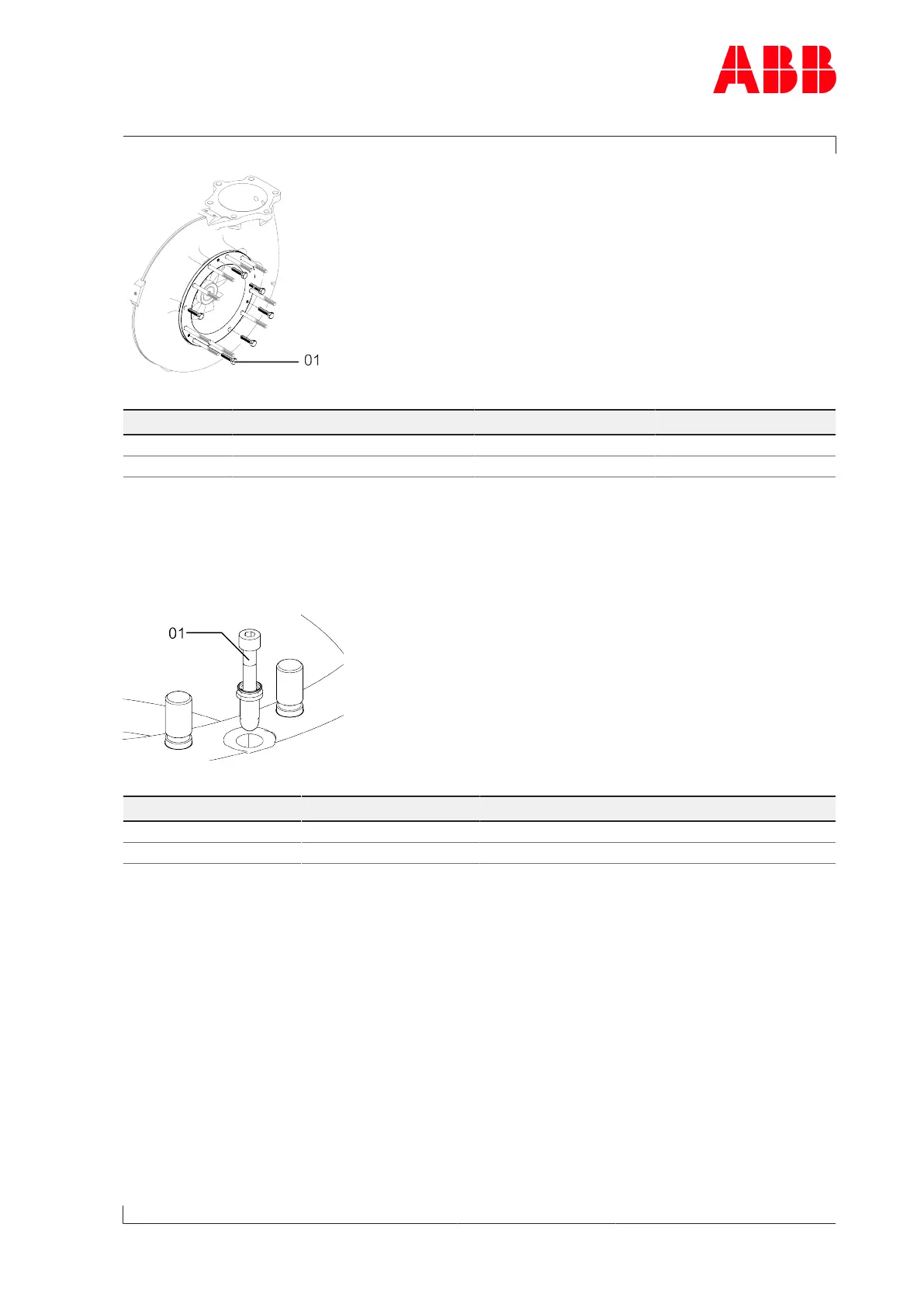

Fig.38: Press-off screws
Product Thread Length Quantity
A150 M12 30 mm 3 or 6
A155 M16 30 mm 3 or 6
Table37: Press-off screws
Dismantling screw for the optional 6-nozzle turbine cleaning component
A dismantling screw(01) is required to dismantle and fit the cleaning nozzles, which is not
supplied by ABB.
Fig.39: Dismantling screw
Product Thread Length [mm] Quantity
A150-M M8 40 1
A155-M M10 50 1
Table38: Dismantling screw
Page 87 / 194
