Operation Manual / A150-M56/66/57/67 - A155-M..
11 Dismantling and fitting, cartridge concept / 11.6 Nozzle ring com-
pression PD
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
11.6 Nozzle ring compression PD
For the nozzle ring (56001) to be fixed during operation, it must be clamped between the
heat shield(42400) and the turbine casing(51000).

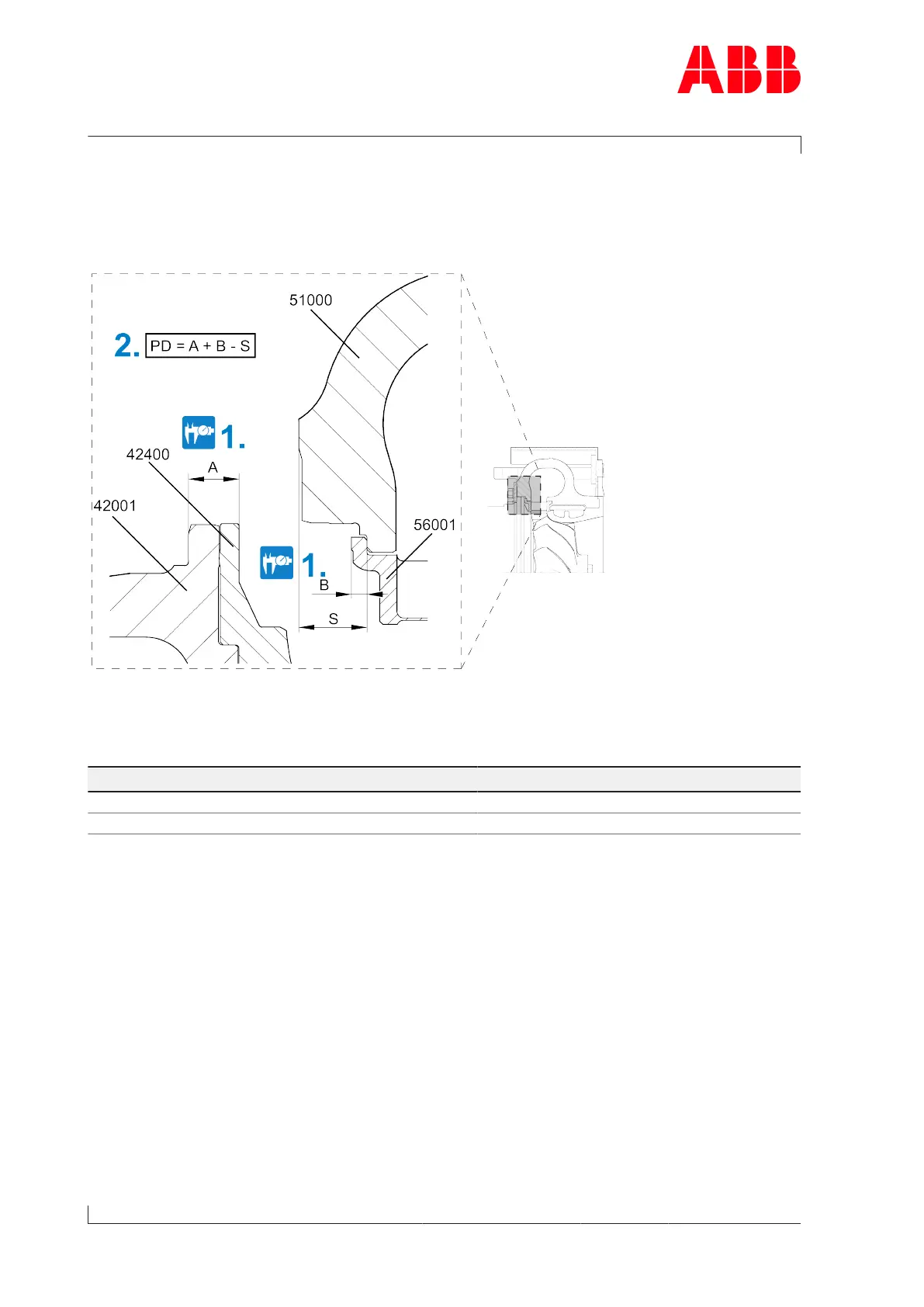

Fig.95: Nozzle ring compression PD
42001 Bearing casing 51000 Turbine casing
42400 Heat shield 56001 Nozzle ring
Product Nozzle ring compression PD [mm]
A150-M -0.17 ... 0.17
A155-M -0.17 ... 0.17
Table58: Nozzle ring compression PD
1. Measure values A, B, and S on cleaned surfaces.
2. Calculate compression (PD).
u If the calculated value (PD) lies outside the specified range, contact an ABB Turbochar-
ging Service Station.
