ABB HT604449 - Fig. 130: Dimensions for Cover Plate; Table 76: Cover Plate Dimensions [MM]

Operation Manual / A150-M56/66/57/67 - A155-M..
15 Taking out of operation at short notice / 15.5 Cover plate drawing
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021

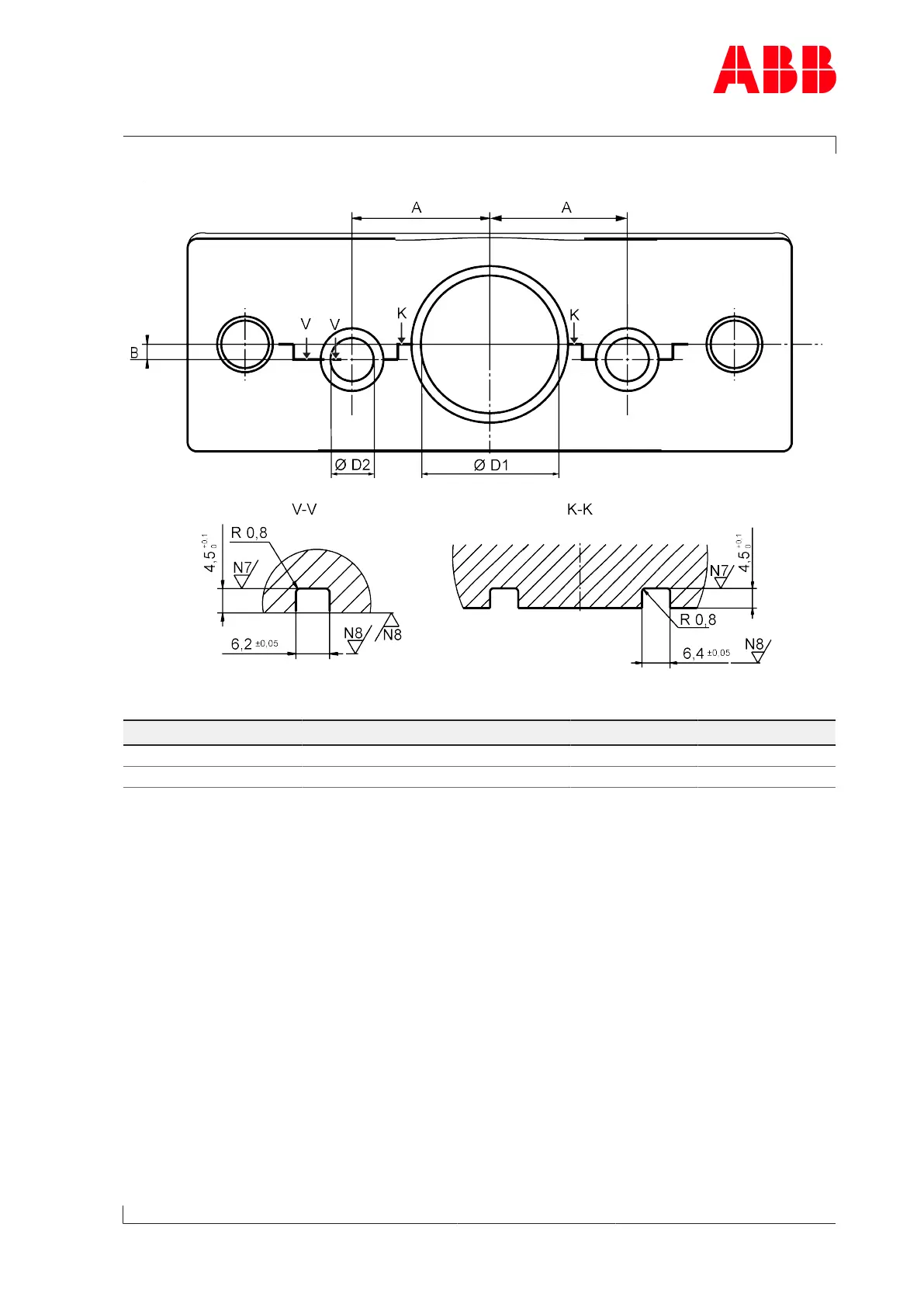

Fig.130: Dimensions for cover plate
Product A B D1 D2± 0.1
A150 90 10 90± 0.2 28.2
A155 107 12 111± 0.1 37.2
Table76: Cover plate dimensions [mm]
Page 169 / 194
