ABB HT604449 - Fig. 112: Fitting the Cartridge Group; Table 70: Tightening Torque (51007)

Operation Manual / A150-M56/66/57/67 - A155-M..
12 Dismantling and fitting, special tools for fastening strips / 12.1 Ap-
plication, special tools
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
12.1.1 A155-M Fit fastening strips with extended special tool

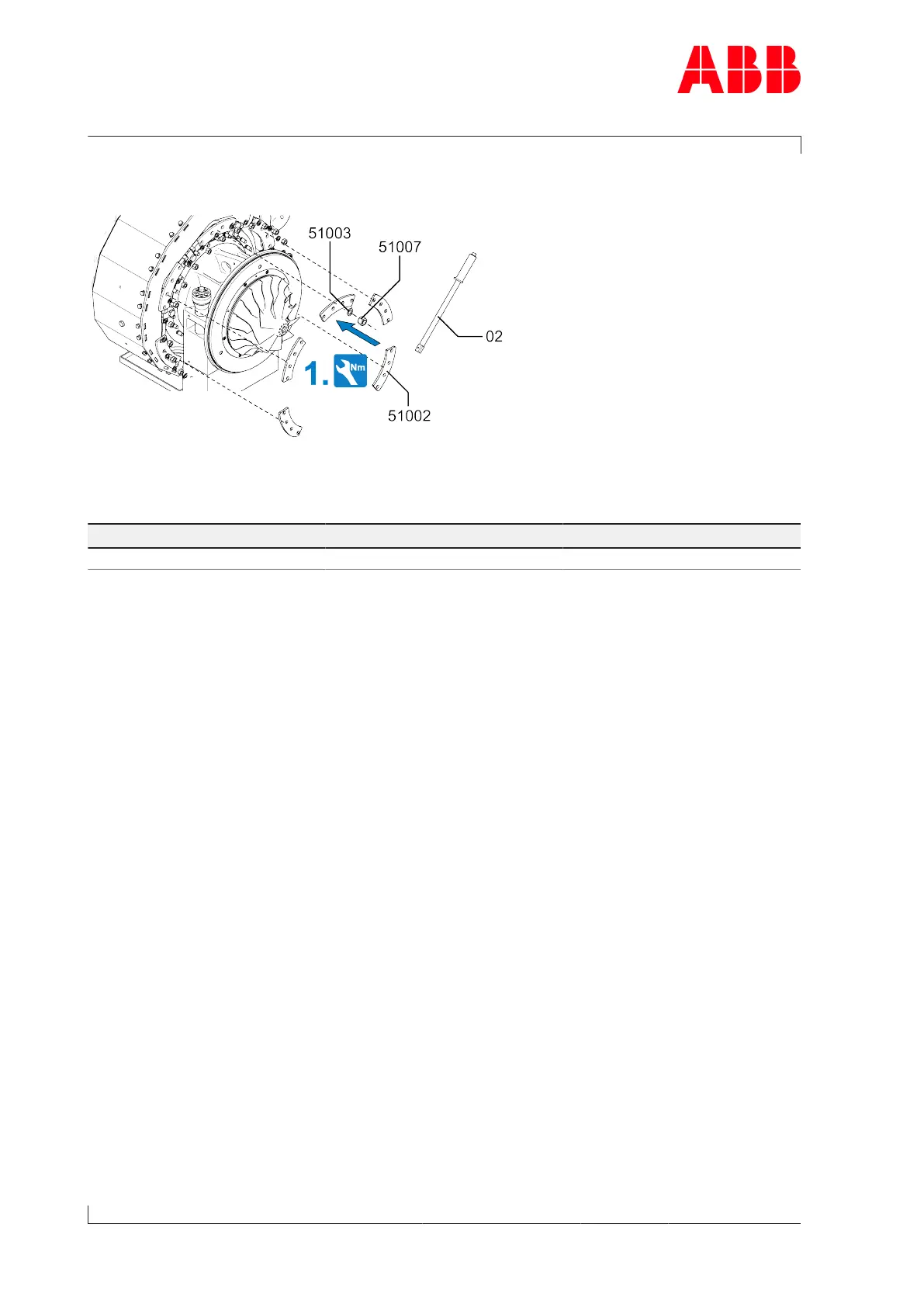

Fig.112: Fitting the cartridge group
1. Fit nuts (51007) of the (upper) fastening strips (51002) shown in the picture and tighten
with the torque spanner(02) without a spanner holder. Observe the tightening torque.
Product Size Tightening torque [Nm]
A155 M16 175
Table70: Tightening torque (51007)
