5. Loosen the nuts (51007) from the remaining fastening strips and remove the lugs(51002)
with washers (51003).
Fitting the fastening strips

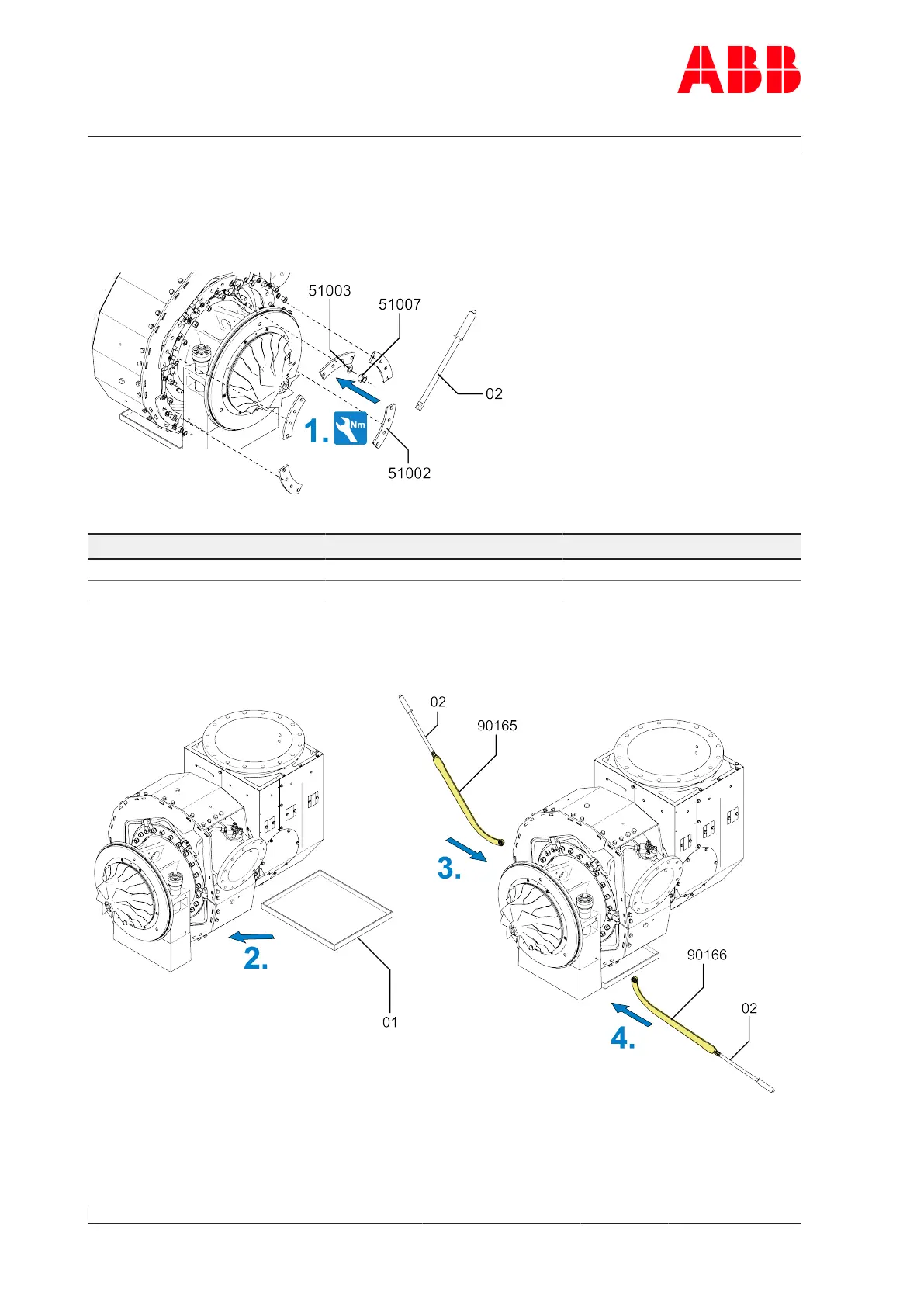

Fig.109: Fitting the upper fastening strips
Product Size Tightening torque [Nm]
A150 M16 175
A155 M16 175
Table68: Tightening torque (51007)
1. Fit the nuts (51007) of the (upper) fastening strips (51002) illustrated and tighten with a
torque spanner(02) without a spanner holder. Observe the tightening torque.
Fig.110: Fitting the bottom fastening strip
2. Position the collection tub(01) to catch any fixing elements if they fall.
3. Tighten the two nuts on one side by using the spanner holder(90165).
