9.15 Installing the compressor casing
Fitting the wall insert and the diffuser

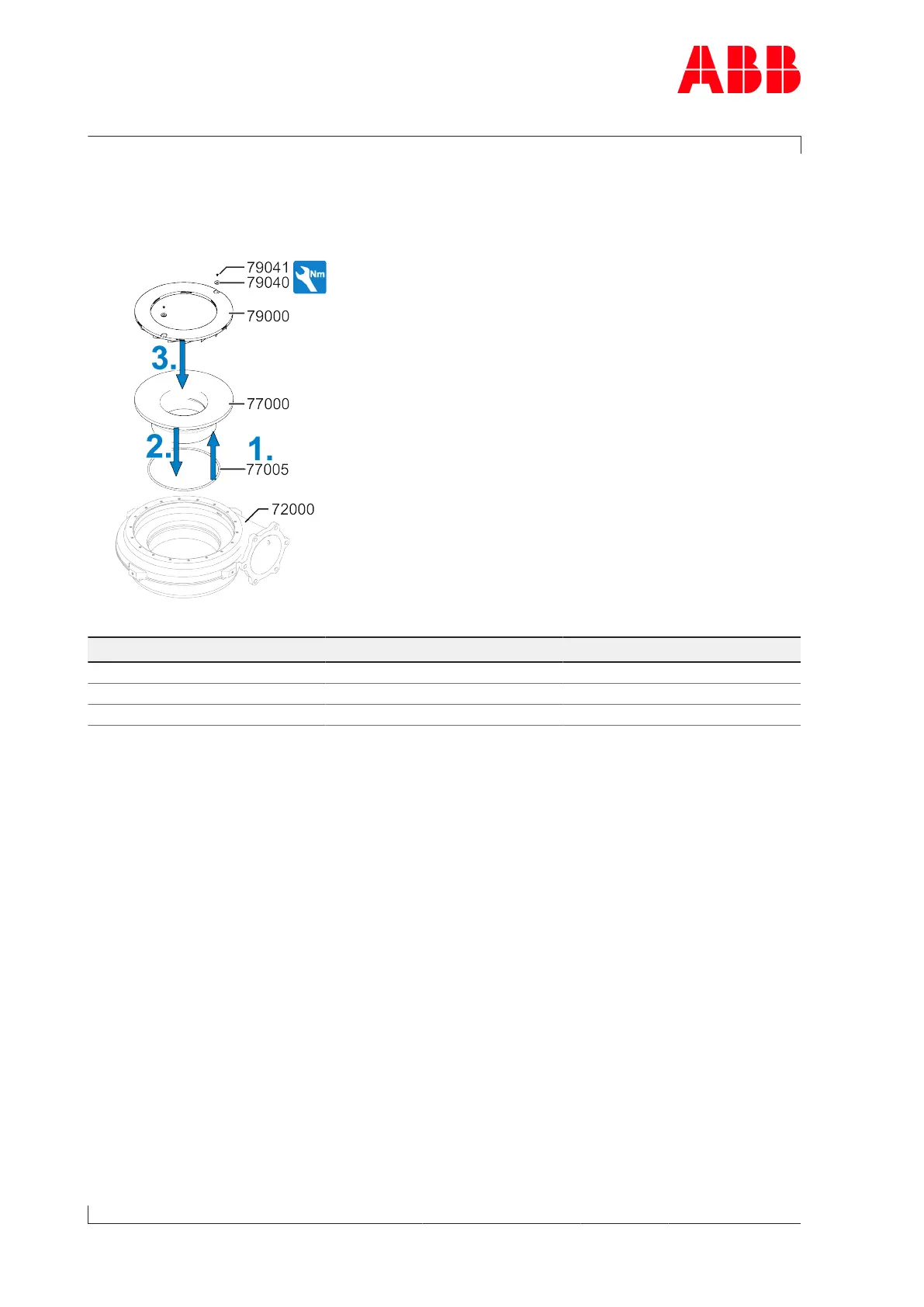

Fig.53: Fitting the wall insert and the diffuser
Product Size Tightening torque [Nm]
A130 M6 8
A135 M6 8
A140 M6 8
Table40: Tightening torque (79041)
1. Fit new O-ring(77005) (see chapter Required customer spare part set (97070) →110).
2. Install the wall insert(77000) into the compressor casing.
3. Secure the diffuser(79000) with fixing discs(79040) and new screws(79041) (see
chapter Required customer spare part set (97070) →110).
