9.17 Installing the air inlets

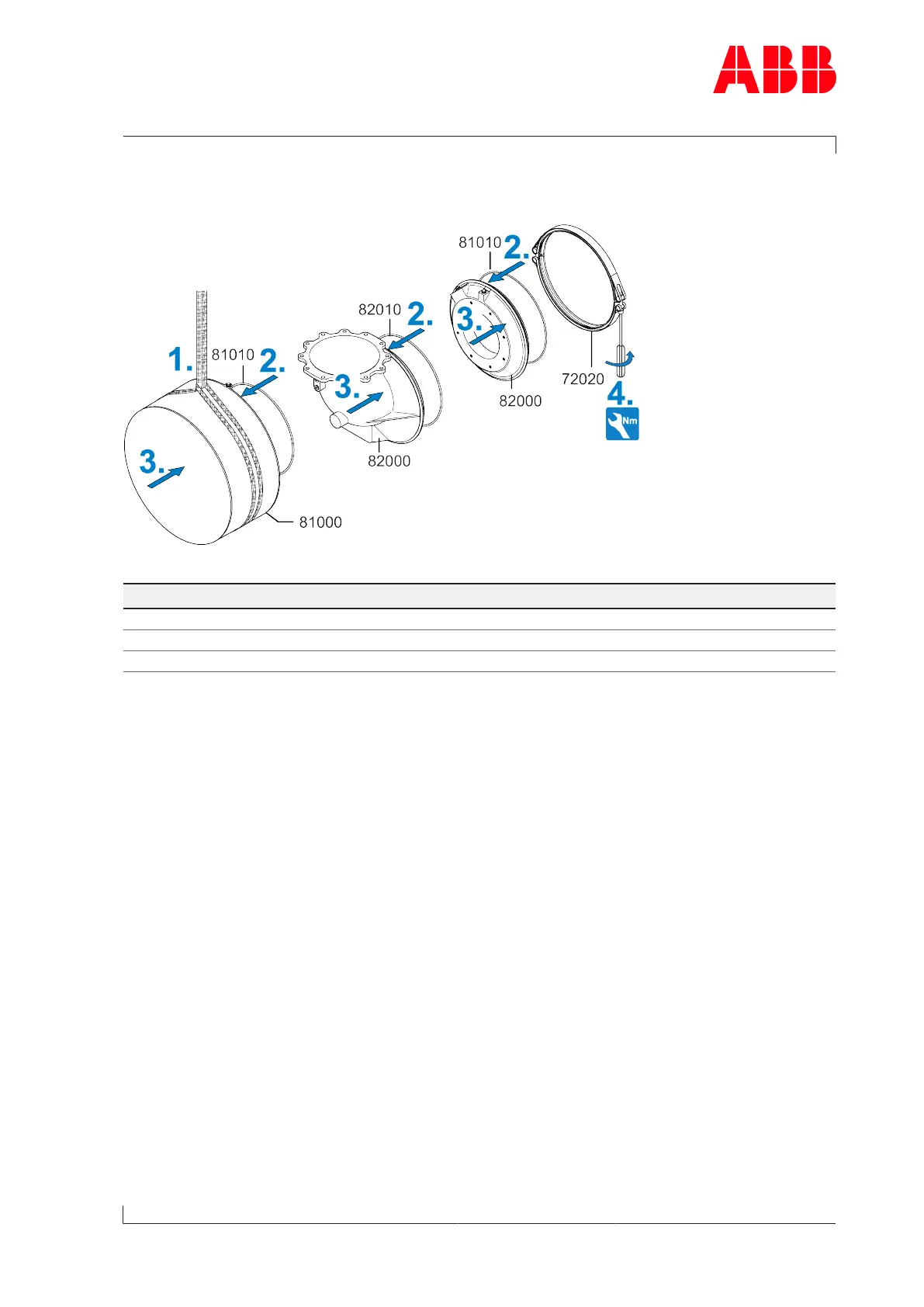

Fig.56: Installing the air inlets
Product Size Tightening torque [Nm]
A130 M12 60
A135 M12 60
A140 M12 60
Table43: Tightening torque (72020)
1. Secure lifting gear to filter silencer(81000).
2. Fit a new O-ring(81010) to the filter silencer(81000) or a new O-ring(82010) to the air
suction branch(82000).
3. Fit the filter silencer(81000) or air suction branch(82000) with the V-clamp(72020).
4. Observe tightening torque.
