Dismantling the wall insert

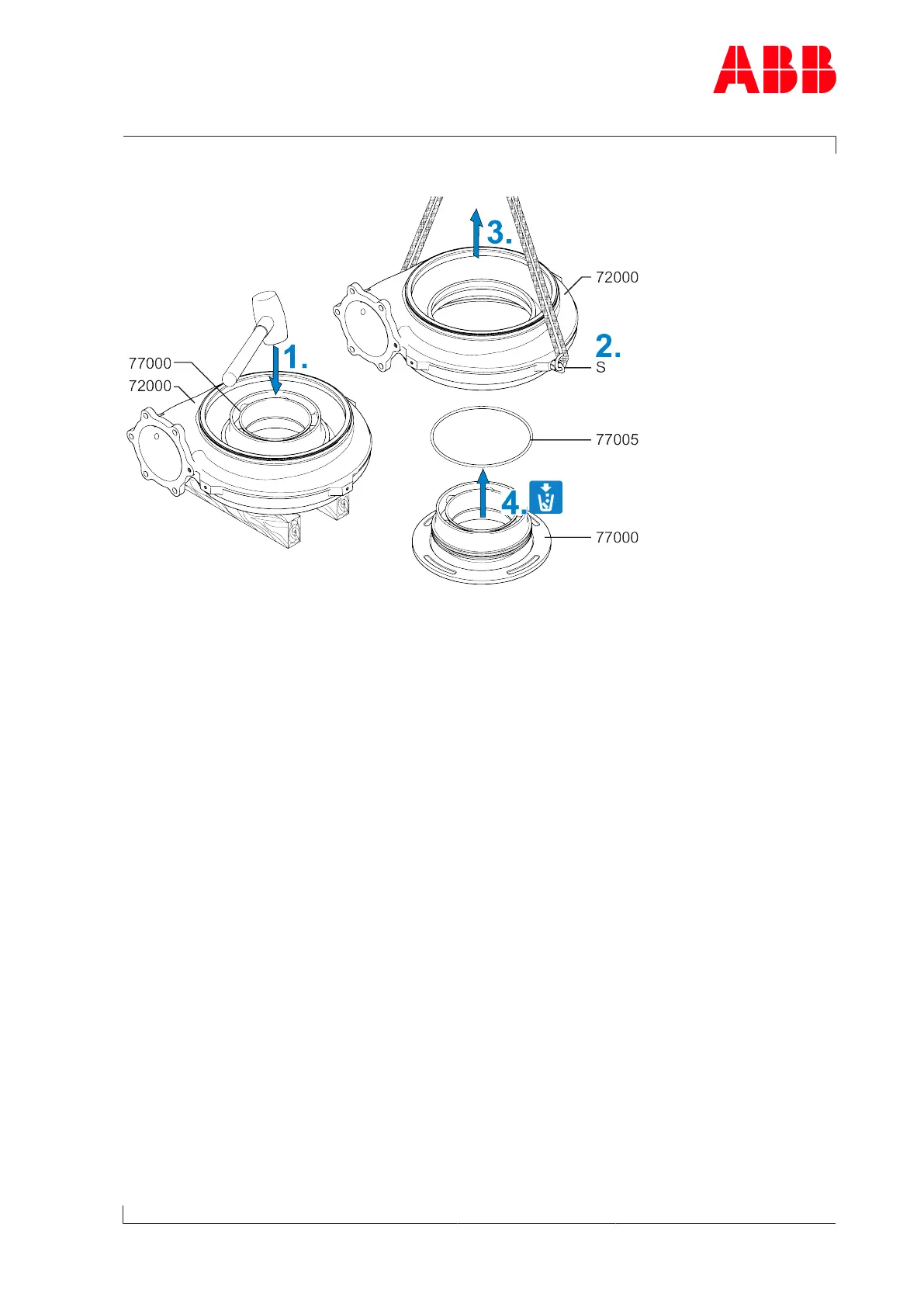

Fig.40: Dismantling the wall insert
1. Knock the wall insert(77000) out of the compressor casing(72000) with a plastic tip
hammer.
2. Attach swivel lifting eye(S) to the compressor casing(72000) and the lifting gear.
3. Lift up the compressor casing(72000).
4. Remove and dispose of the O-ring(77005).
