ABB HT608708 - Fig. 34: Weights of Assemblies;Table 33: Weights of Assemblies; Fig. 34: Weights of Assemblies; Table 33: Weights of Assemblies

Operation Manual / A130-H.. - A140-H..
9 Dismantling and fitting / 9.2 Weights of individual parts
© Copyright 2021 ABB. All rights reserved. HZTL4030_EN Rev.G July 2021

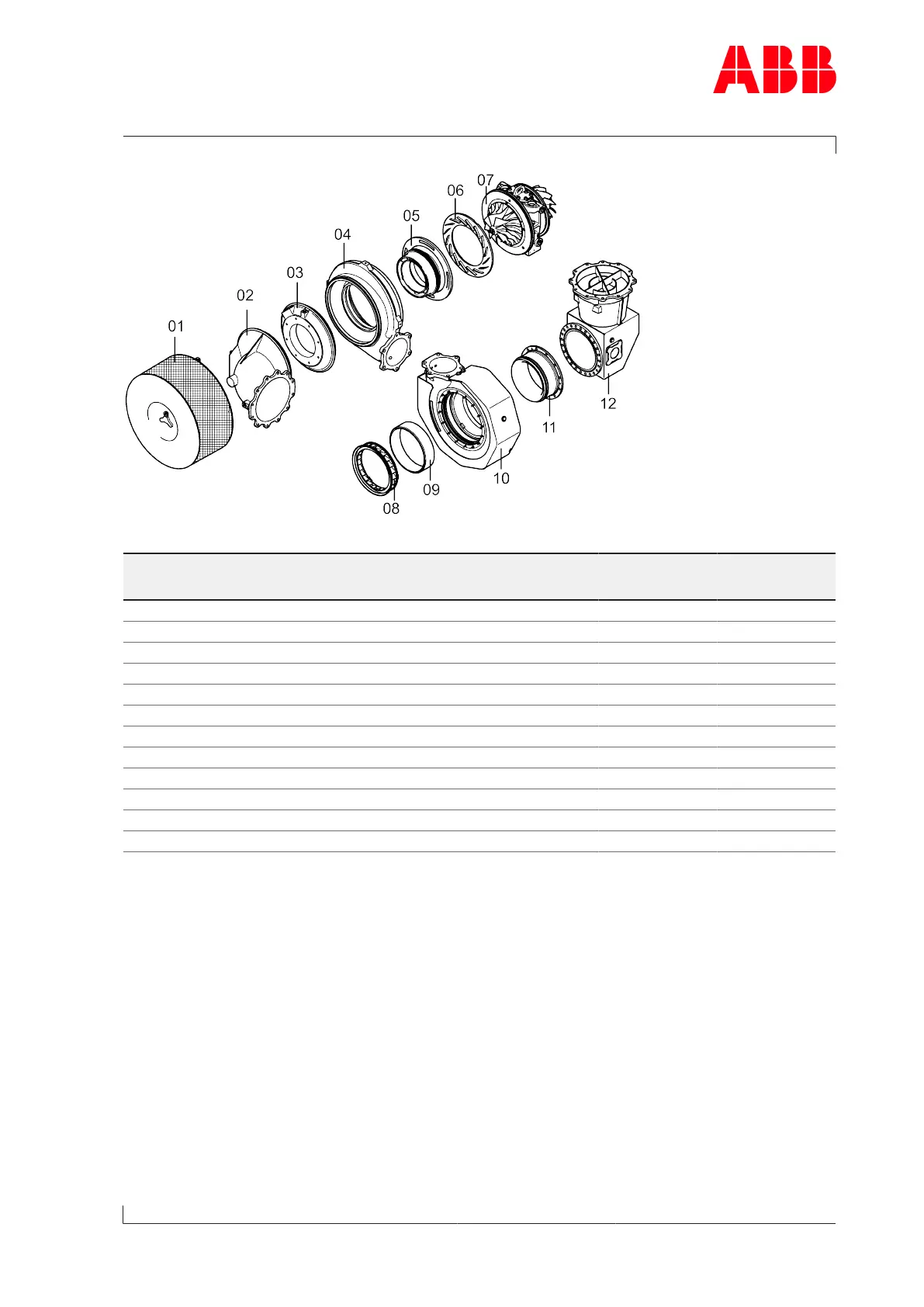

Fig.34: Weights of assemblies
Designation A130
[kg]
A135
[kg]
A140
[kg]
01 Filter silencer 19 30 40
02 Radial air suction branch 6 8 13
03 Axial air suction branch 4 5 6
04 Compressor casing 24 40 60
05 Wall insert 6 8 15
06 Diffuser 3 4 7
07 Cartridge group 40 60 110
08 Nozzle ring 2 2 4
09 Burst ring 2 3 5
10 Turbine casing * 45 65 120
11 Gas outlet flange 7 13 20
12 Gas outlet casing * 30 35 65
Table33: Weights of assemblies
* including burst protection
Page 81 / 122
