3 Removing and Installing / 3.2 Removing the turbocharger
© Copyright 2021 ABB. All rights reserved. HZTL4030_EN Rev.G July 2021
3.2.2 Loosening the clamping nut
CAUTION
Incorrect procedure can make loosening impossible
If individual pressure screws are fully relieved, the pressure screws can be-
come compressed, making it impossible to loosen them.
u Comply with the following steps for loosening the pressure screws.
CAUTION
Do not clean pressure screws
The pressure screws are equipped with a permanent sliding layer that must
not be removed. In case of non-compliance, it cannot be ensured that the
necessary tension force is reached.
u Do not clean pressure screws.
u Do not lubricate pressure screws.
If a screw jams, the previously loosened screw must be tightened again a little.

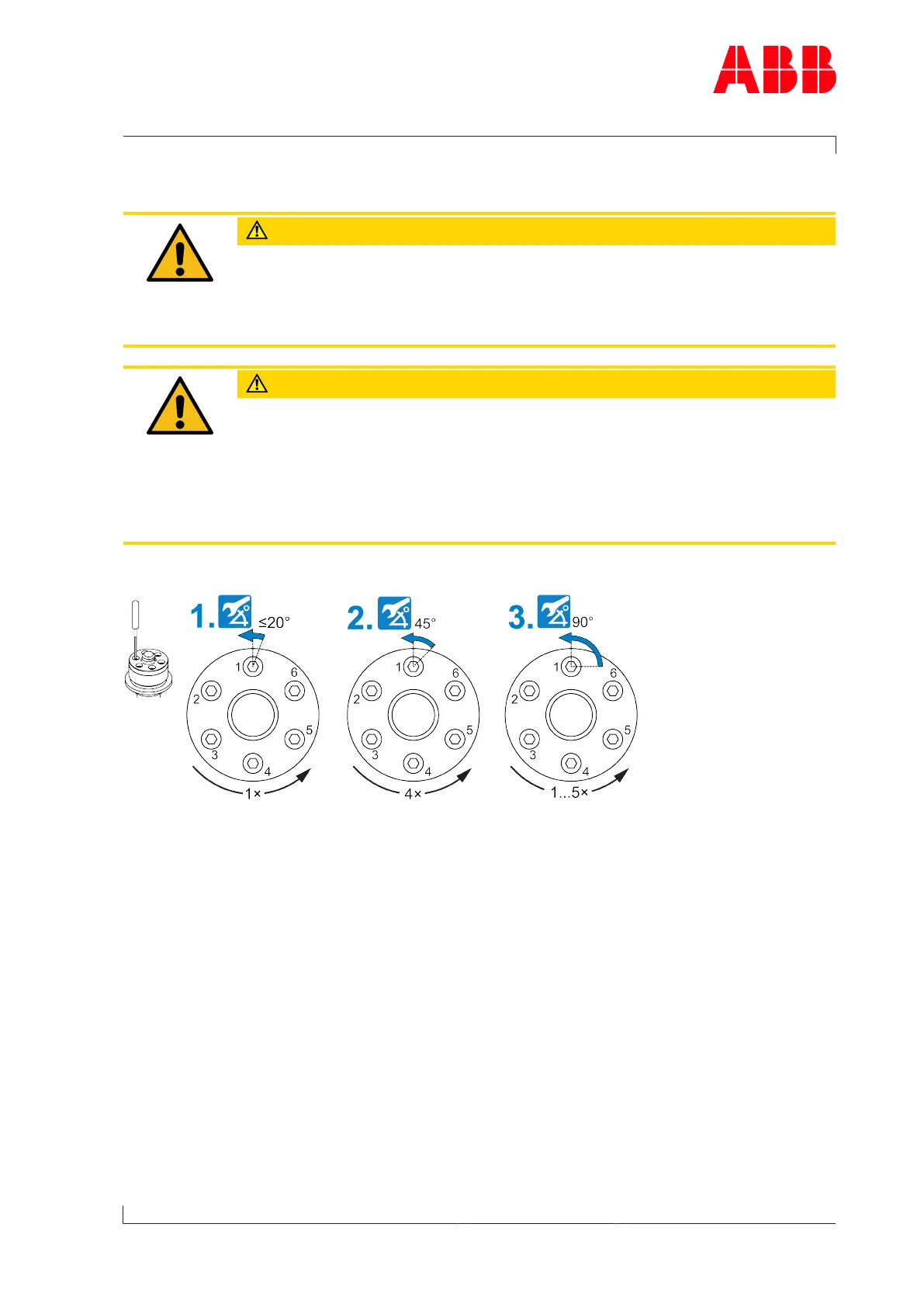

Fig.13: Loosening the clamping nut
1. Working in a circle, break loose each pressure screw (≤20°).
2. Working in a circle, loosen each pressure screw by 45° in 4 rounds.
3. Working in a circle, loosen each pressure screw by 90° in 1...5 rounds until all of the pres-
sure screws have been relieved.
u Loosen clamping nut by hand.
