9.10 Installing the cartridge group on the service
support

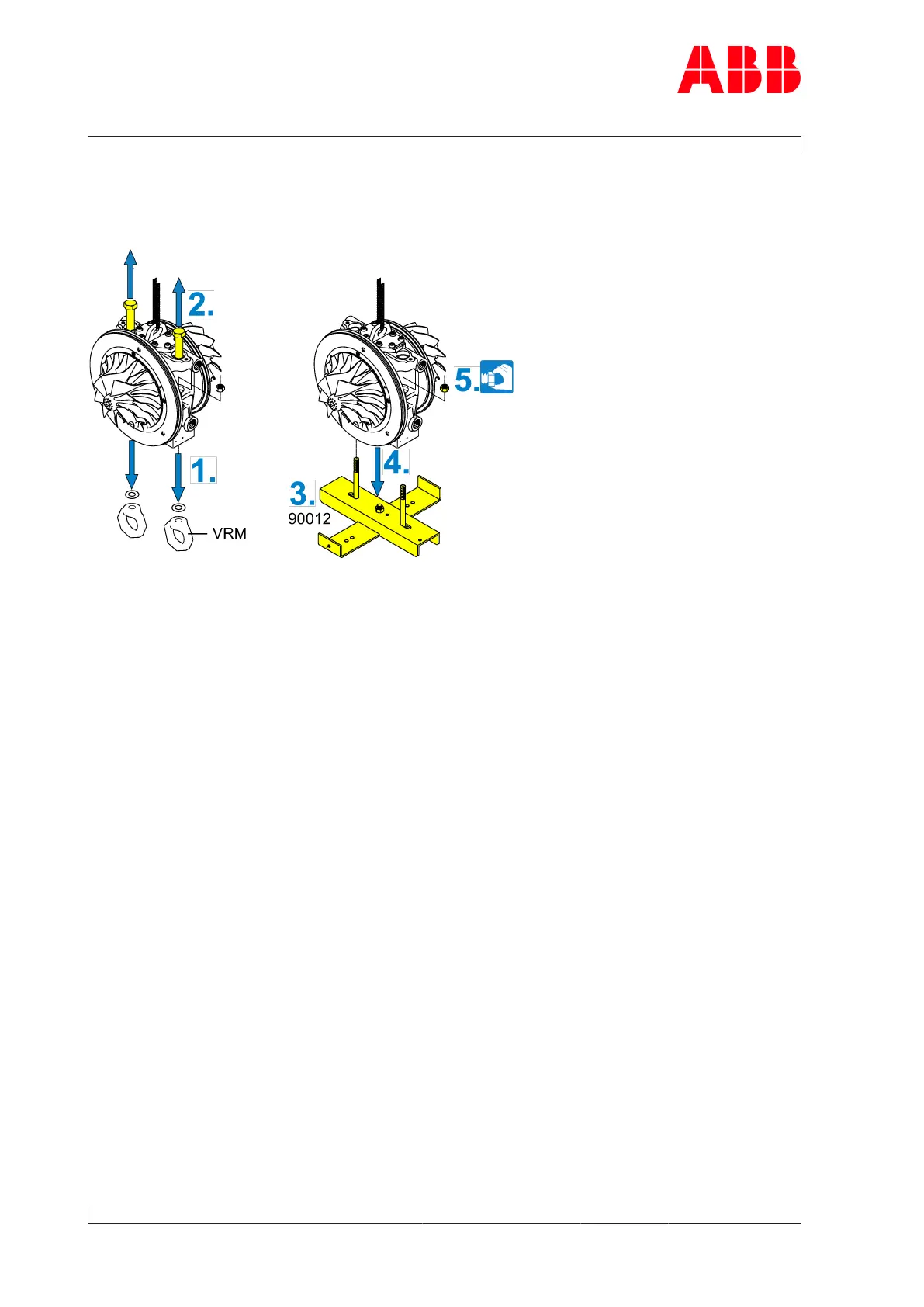

Fig.46: Installing the cartridge group on the service support
1. Remove ring nuts(VRM).
2. Remove service support screws.
3. Fit service support(90012) according to the illustration.
4. Insert the cartridge group.
5. Fit the nuts.
