ABB HT608708 - Fig. 45: Removing the Nozzle Ring; Removing the Nozzle Ring

Operation Manual / A130-H.. - A140-H..
9 Dismantling and fitting / 9.9 Removing the nozzle ring
© Copyright 2021 ABB. All rights reserved. HZTL4030_EN Rev.G July 2021
9.9 Removing the nozzle ring

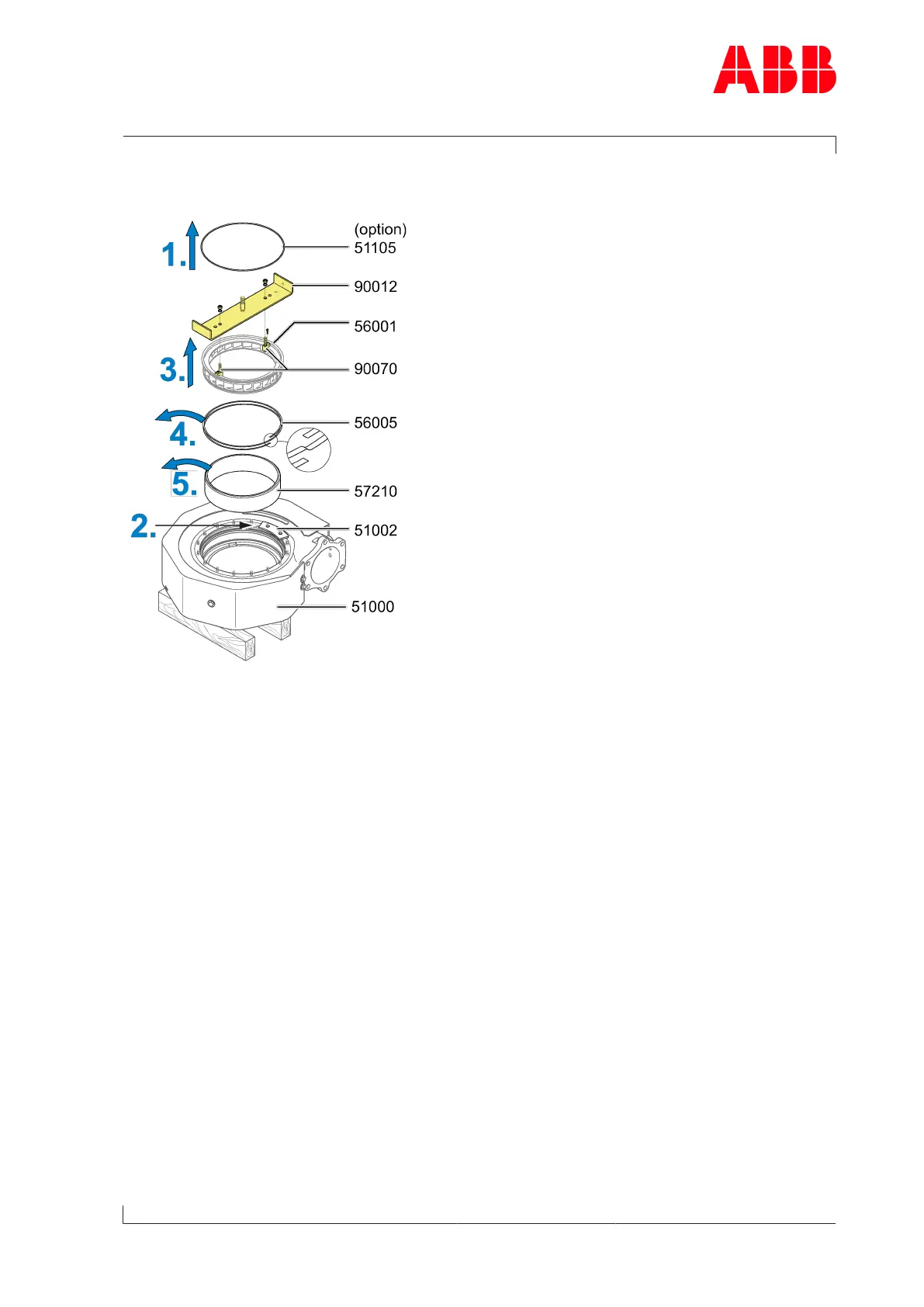

Fig.45: Removing the nozzle ring
1. If present: Remove the metal C-ring(51105).
2. Position the fastening strips(51002) in place.
3. Pull out the nozzle ring(56001) with the two extraction devices(90070) and the service
support base(90012).
4. Remove the lamellar sealing ring (56005).
5. Remove the burst ring(57210).
Page 91 / 122
